PRODUCT SPECIFICATION

Part Number

PDM577 Series

Details

 0.7” (17.24mm) Dot Matrix Display

 5x7 Array

 Available in Common Anode or Cathode

 Emitting Color: Pure Green, Yellow Green,

Yellow, Amber, Orange-Red, Red or Deep

Red

Features

 Low power consumption

 RoHS Compliant

 Gray or Black Face, White Segment

 Easy mounting on PCB or socket

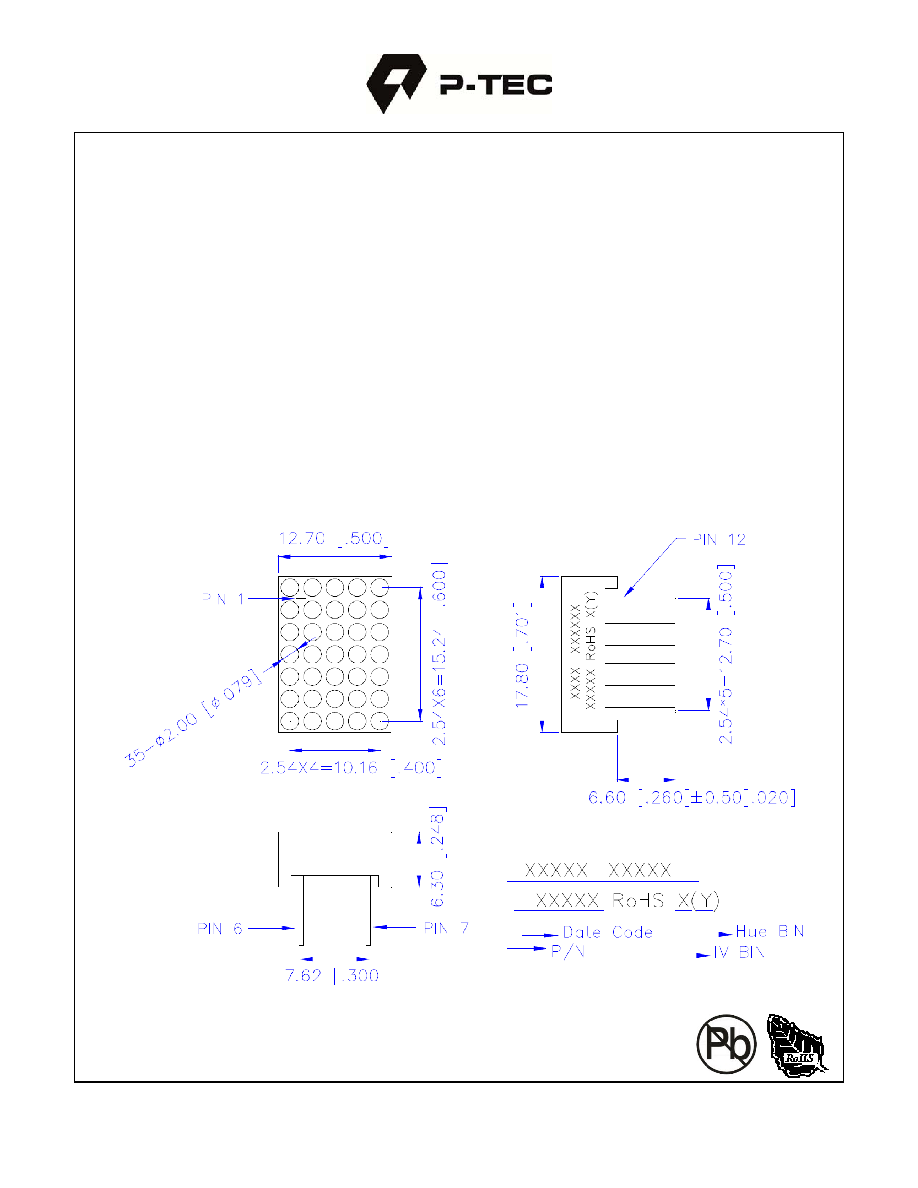

Mechanical Dimensions

Notes:

1. Dimensions in millimeters [inch], and tolerance is ±0.25 [.010] and angle is ±1° unless otherwise noted.

2. Bending ≤ Length*1%

4. Specifications subject to change without notice.
