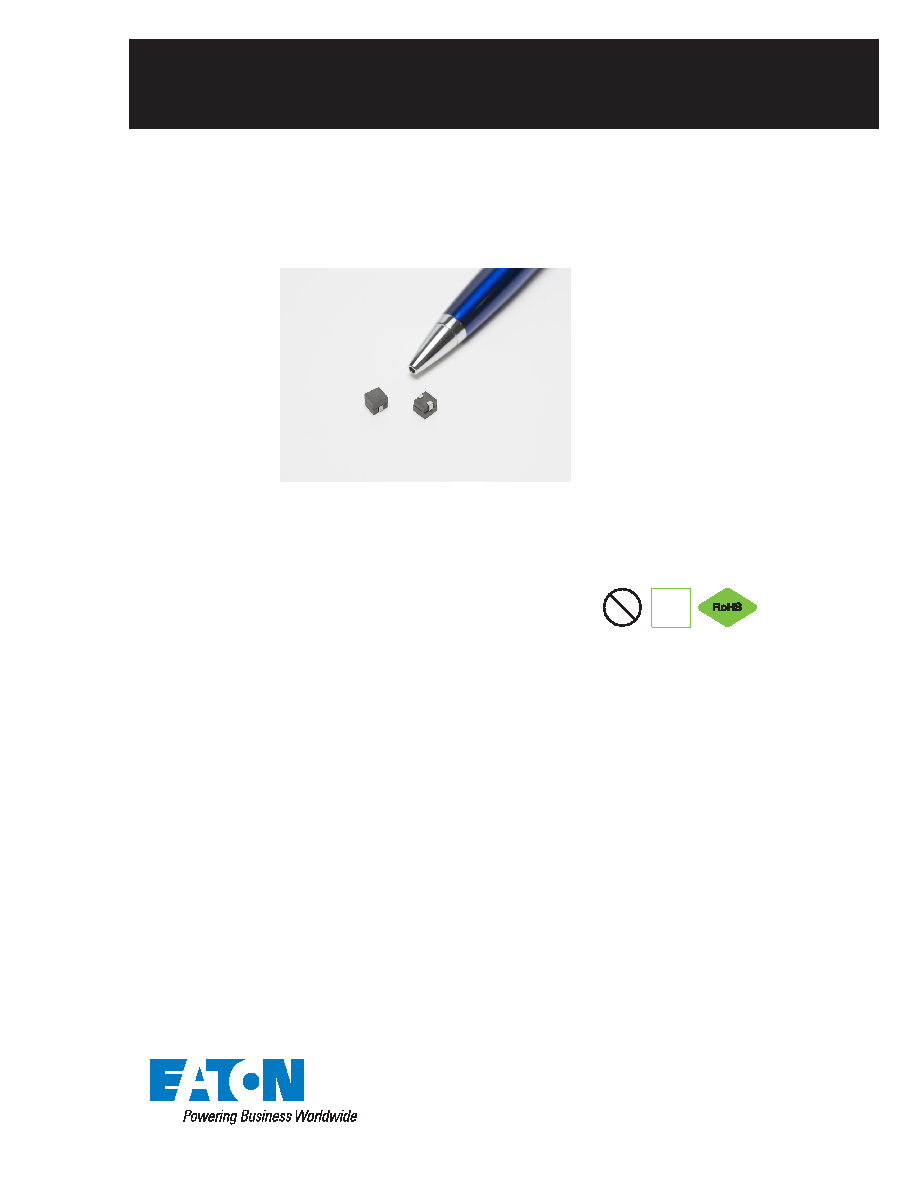

Technical Data 10446
Effective September 2015
FP0505R
High frequency, high current power inductors
Description
•
High current carrying capacity
•
Low core loss
•
5.0 x 5.0mm footprint surface mount package in
an 4.8mm height
•
Ferrite core material
•
Halogen free, lead free, RoHS compliant
Applications
•
Servers
•
Multi-phase and Vcore regulators
•
Voltage Regulator Modules (VRMs)
•
Desktop VRMs and EVRDs
•
Data networking and storage systems
•
Graphics cards and battery power systems
•
Point-of-Load modules
Environmental Data
•
Storage temperature range (Component):
-40°C to +125°C
•
Operating temperature range: -40°C to +125°C
(ambient + self-temperature rise)
•
Solder reflow temperature: J-STD-020D
compliant
Pb
HALOGEN
HF
FREE
