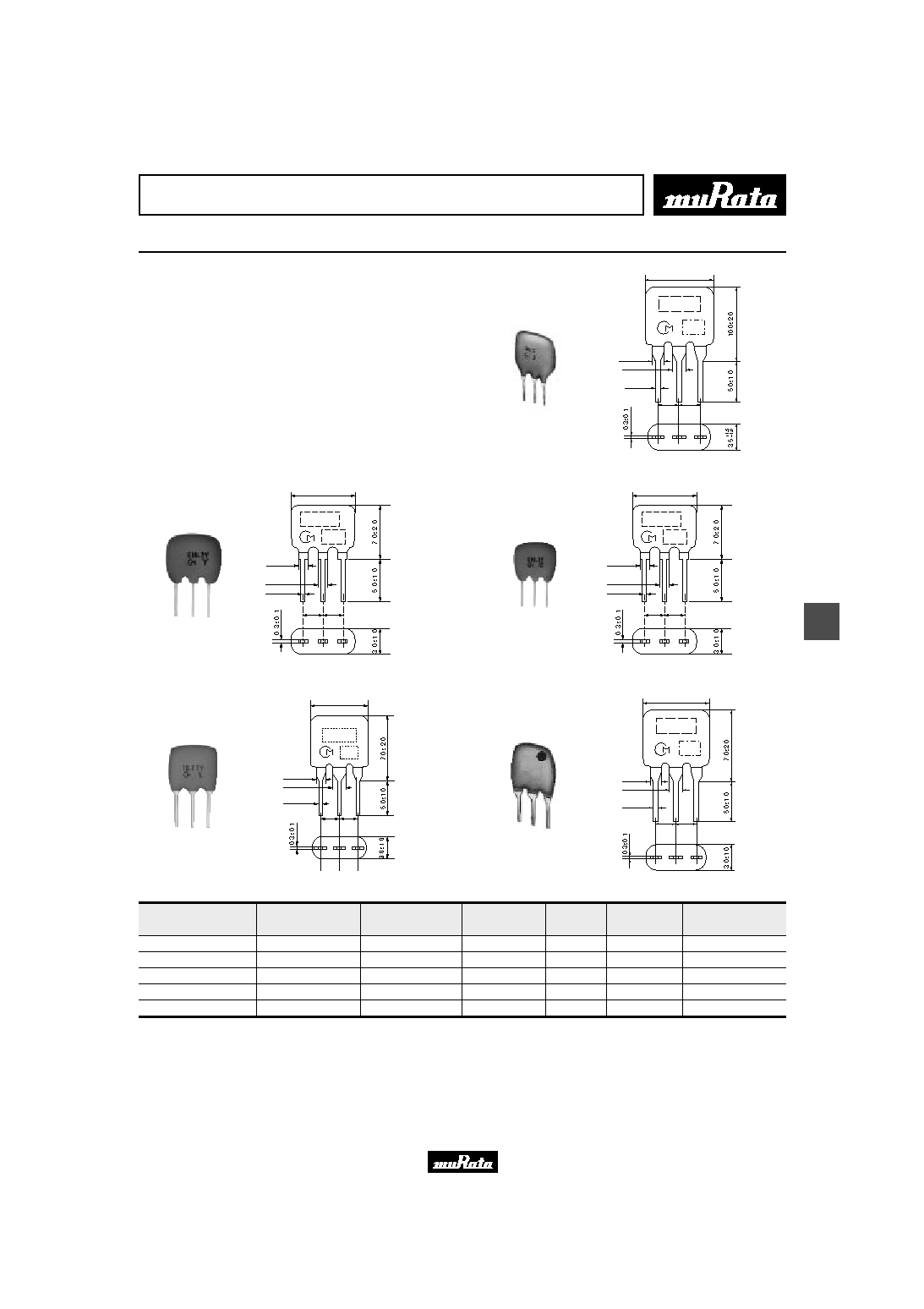

Ceramic Filters (CERAFILr) for FM Receivers

CERAFILr Narrow Band Type

SFELA10M7LFTA/KAH0, SFVLA/SFKLA series realizes

narrower band characteristics not obtained by

conventional ceramic filters. Besides, low spurious

and temperature characteristics is stable. This series

suits for European car-audio or AM up conversion use

that needs narrow band characteristics.

(1)

(2)

(3)

10.0

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

M A R K I N G

E I A J

C O D E

in mm

SFKLA10M7NF00-B0

M A R K I N G

7 . 0

±2.0

2.5

±0.2

0 . 5

±0.1

1 . 4

±0.1

1 . 6 5

±0.1

2.5

±0.2

( 3 )

( 2 )

( 1 )

E I A J

C O D E

in mm

(1) : Input

(2) : Ground

(3) : Output

SFVLA10M7MF00-B0

M A R K I N G

7 . 0

±2.0

2.5

±0.2

0 . 5

±0.1

1 . 4

±0.1

1 . 6 5

±0.1

2.5

±0.2

( 3 )

( 2 )

( 1 )

E I A J

C O D E

in mm

(1) : Input

(2) : Ground

(3) : Output

SFVLA10M7LF00-B0

0.5

± 0.1

2.5

± 0.2

2.5

± 0.2

(1) Input

(2) Ground

(3) Output

1.7

± 0.1

1.38

± 0.2

7.0

± 2.0

MARKING

EIAJ

CODE

(3)

(2)

(1)

(in mm)

SFELA10M7LFTA01-B0

(1)

(2)

(3)

7.0

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELA10M7KAH0-B0

Part Number

Center Frequency (fo)

(MHz)

Nominal

Center Frequency(fn)

(MHz)

3dB Bandwidth

(kHz)

Attenuation

(kHz)

Insertion Loss

(dB)

Spurious Attenuation

(dB)

SFKLA10M7NF00-B0

10.700

±15kHz

20 min.

95 max.

6.0 max.

24 min.

SFVLA10M7MF00-B0

10.700

±13 min.

135 max.

within5.5

±2.5dB

30 min.

SFVLA10M7LF00-B0

10.700

±25 min.

200 max.

within5.5

±2.5dB

30 min.

SFELA10M7LFTA-B0

10.700

±25 min.

280 max.

within7.0

±2.0dB

30 min.

SFELA10M7KAH0-B0

10.700

±30kHz

within110

±30kHz

350 max.

within7.0

±2.0dB

30 min.

Area of Attenuation : [within 20dB]

Area of Spurious Attenuation : [within 9MHz to 12MHz]
