Power Choke Coil HTEK12100F MSR type

High performance (Isat) realized by metal dust core.

Low profile：1.2mm x 1.0mm x 0.6mm

Low loss realized with low DCR

100% lead (Pb) free meet RoHS standard

DC/DC converter for CPU in Notebook PC

Cellular phones, LCD displays, HDDs, DVCs, DSCs, PDAs etc..

Thin type on-board power supply module for exchanger

VRM for server

L

W

G

T

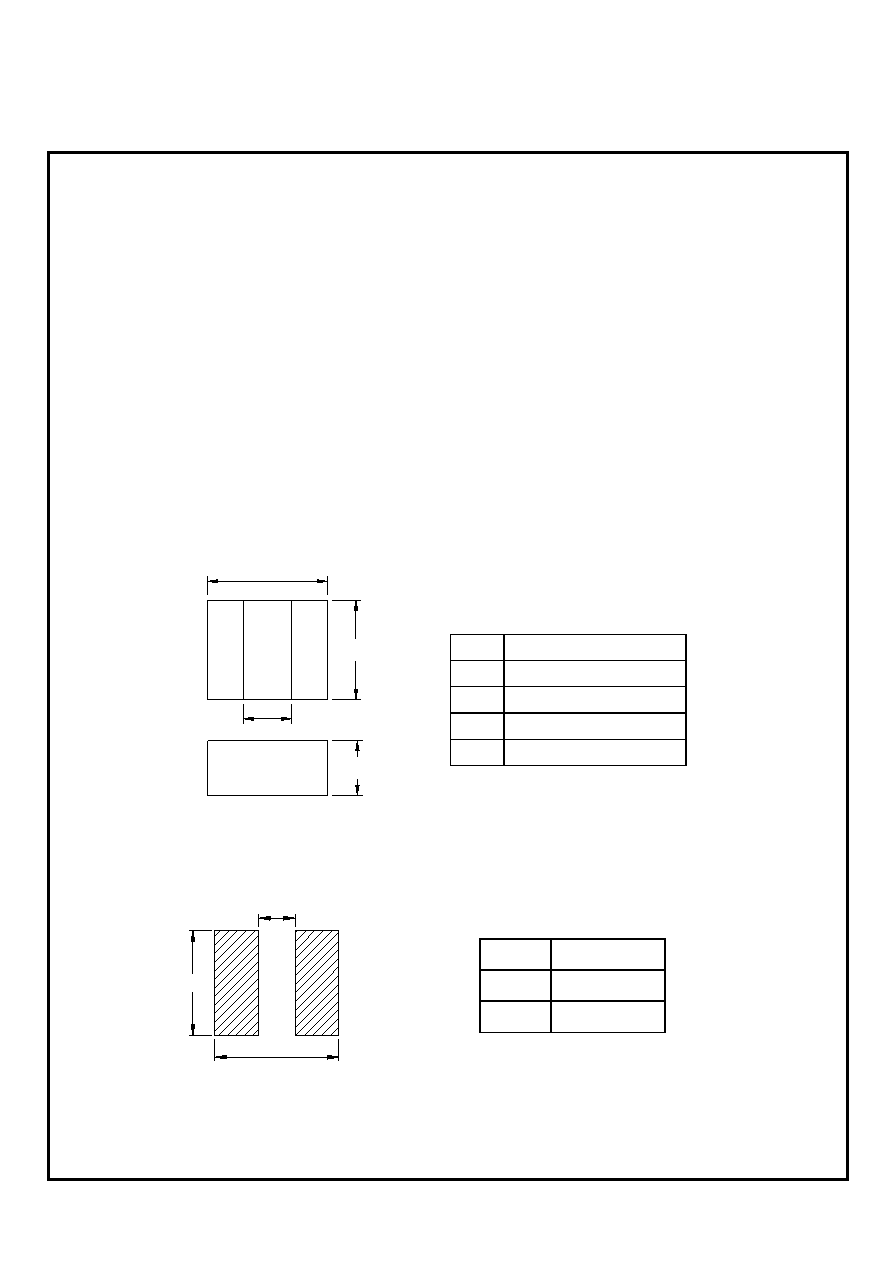

The customer shall determine the land dimensions shown below after confirming and safety.

B

C

A

Code

Dimensions

L

1.2

 0.2

W

1.0

 0.2

T

0.6 Max.

G

0.48 Typ.

Unit : mm

A

1.10

B

0.38

C

1.30

Unit : mm
