MODEL: CLSB

http://www.m-system.co.jp/

CLSB SPECIFICATIONS

ES-9286 Rev.7 Page 2/3

(sensor core to output terminal)

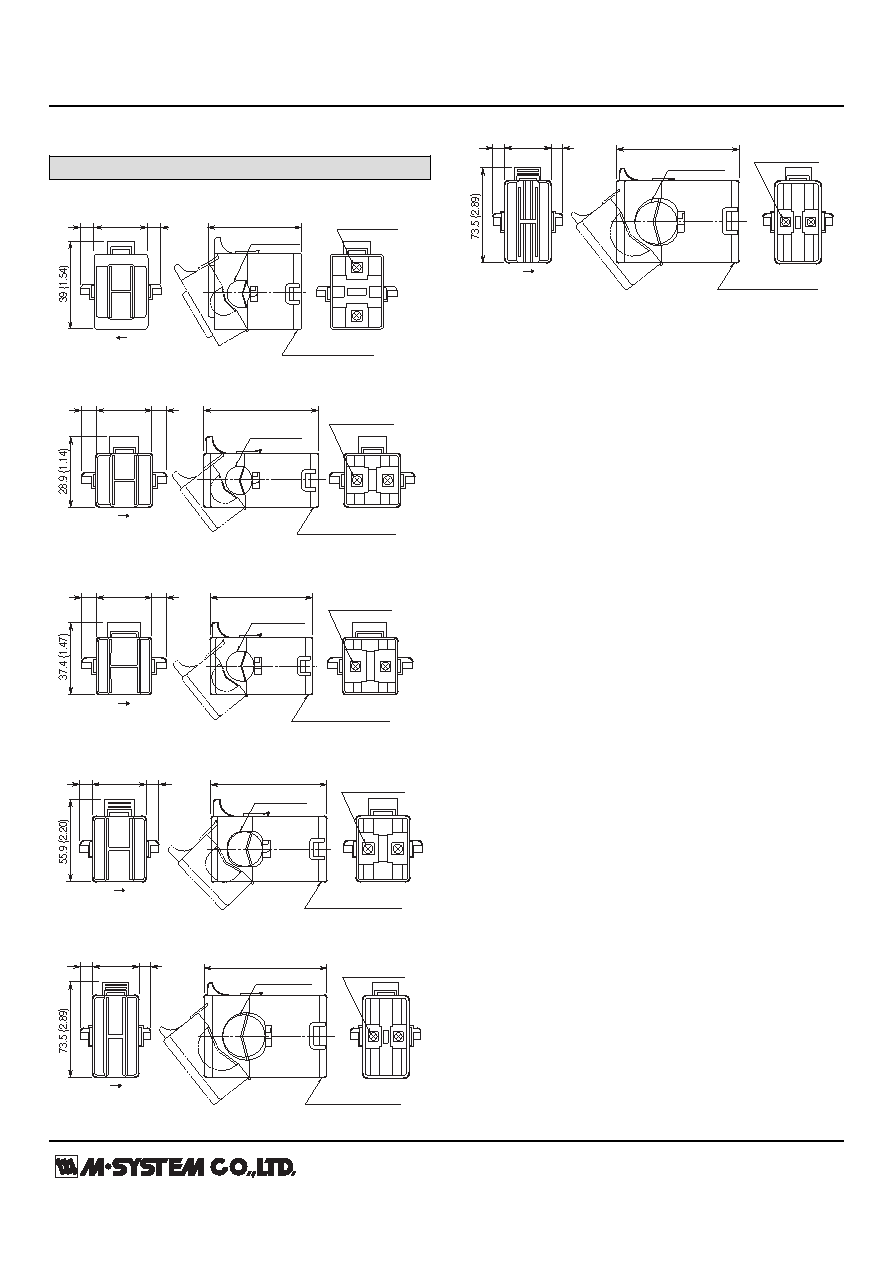

DIMENSIONS unit: mm (inch)

■ Sensor model No.: CLSB-R5

25.3 (1.00)

8.6

(.34)

8.6

(.34)

41.3 (1.63)

10 dia. (.39)

2–M3 SCREW

TERMINAL COVER

(detachable)

■ Sensor model No.: CLSB-05

26.3 (1.04)

8.6

(.34)

8.6

(.34)

48 (1.89)

10 dia. (.39)

2–M3 SCREW

TERMINAL COVER

(detachable)

■ Sensor model No.: CLSB-10

30.5 (1.20)

7.5

(.30)

7.5

(.30)

53.7 (2.11)

16 dia. (.63)

2–M3 SCREW

TERMINAL COVER

(detachable)

■ Sensor model No.: CLSB-20

2–M3 SCREW

35.9

(1.41)

8.3

(.33)

8.3

(.33)

75.7 (2.98)

24 dia. (.94)

TERMINAL COVER

(detachable)

■ Sensor model No.: CLSB-40

35 dia. (1.38)

2–M3 SCREW

35.5

(1.40)

8.8

(.35)

8.8

(.35)

93 (3.66)

TERMINAL COVER

(detachable)

■ Sensor model No.: CLSB-60

35.5

(1.40)

8.8

(.35)

8.8

(.35)

93 (3.66)

TERMINAL COVER

(detachable)

35 dia. (1.38)

2–M3 SCREW
