MODEL: M2PHS2

M2PHS2 SPECIFICATIONS

ES-5105 Rev.8 Page 5/5

http://www.m-system.co.jp/

HOLD MODES

■ PEAK HOLD MODE

The transmitter output responds only to an increasing

signal, holding the maximum value until a higher signal or a

command to reset is received.

■ VALLEY HOLD MODE

The transmitter output responds only to a decreasing signal,

holding the minimum value until a lower signal or a

command to reset is received.

■ PEAK-TO-PEAK HOLD MODE

The transmitter output responds only when the input signal

goes over the previously monitored maximum value or goes

below the previously monitored minimum value.

The output is proportional to the peak-to-peak value,

absolute difference between the maximum and the

minimum values.

HOLD

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

INPUT

OUTPUT

RESET

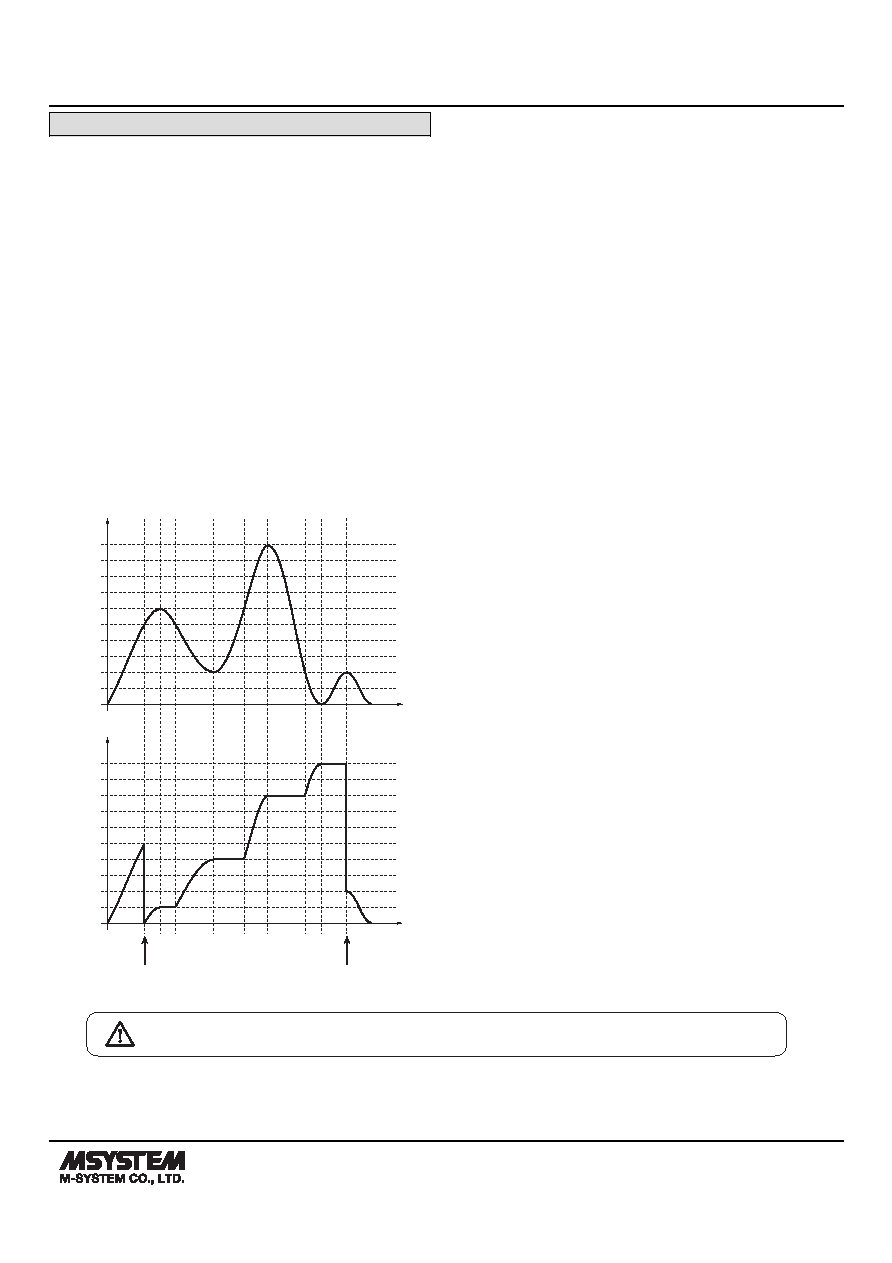

• Peak-to-Peak Hold Mode

Specifications are subject to change without notice.
