MODEL: 17TG
http://www.m-system.co.jp/

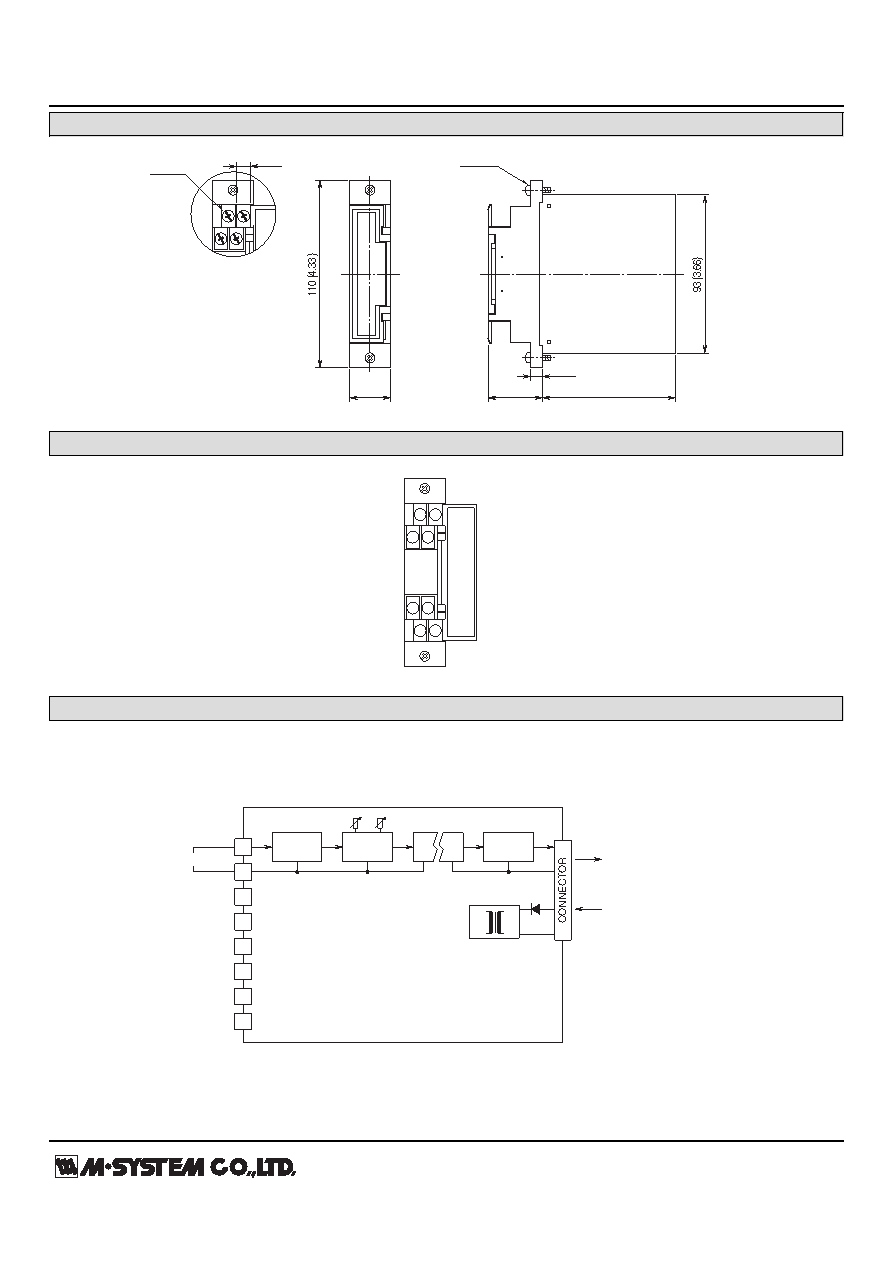

17TG SPECIFICATIONS
ES-2939 Rev.0 Page 2/3
DIMENSIONS unit: mm (inch)
24 (.94)
7 (.28)
78 (3.07)
32 (1.26)
8–M3.5
SCREW
7 (.28)
2–M3
SCREW
TERMINAL ASSIGNMENTS
1
2
3
4
7
8
5
6
SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
OUTPUT
INPUT
1
AC
Amplifier
2
3
4
5
6
7
8
RMS
Operation
S
Z
Output
Driver
Isolation
POWER
