MODEL: APOT

APOT SPECIFICATIONS

ES-2115 Rev.7 Page 3/3

http://www.m-system.co.jp/

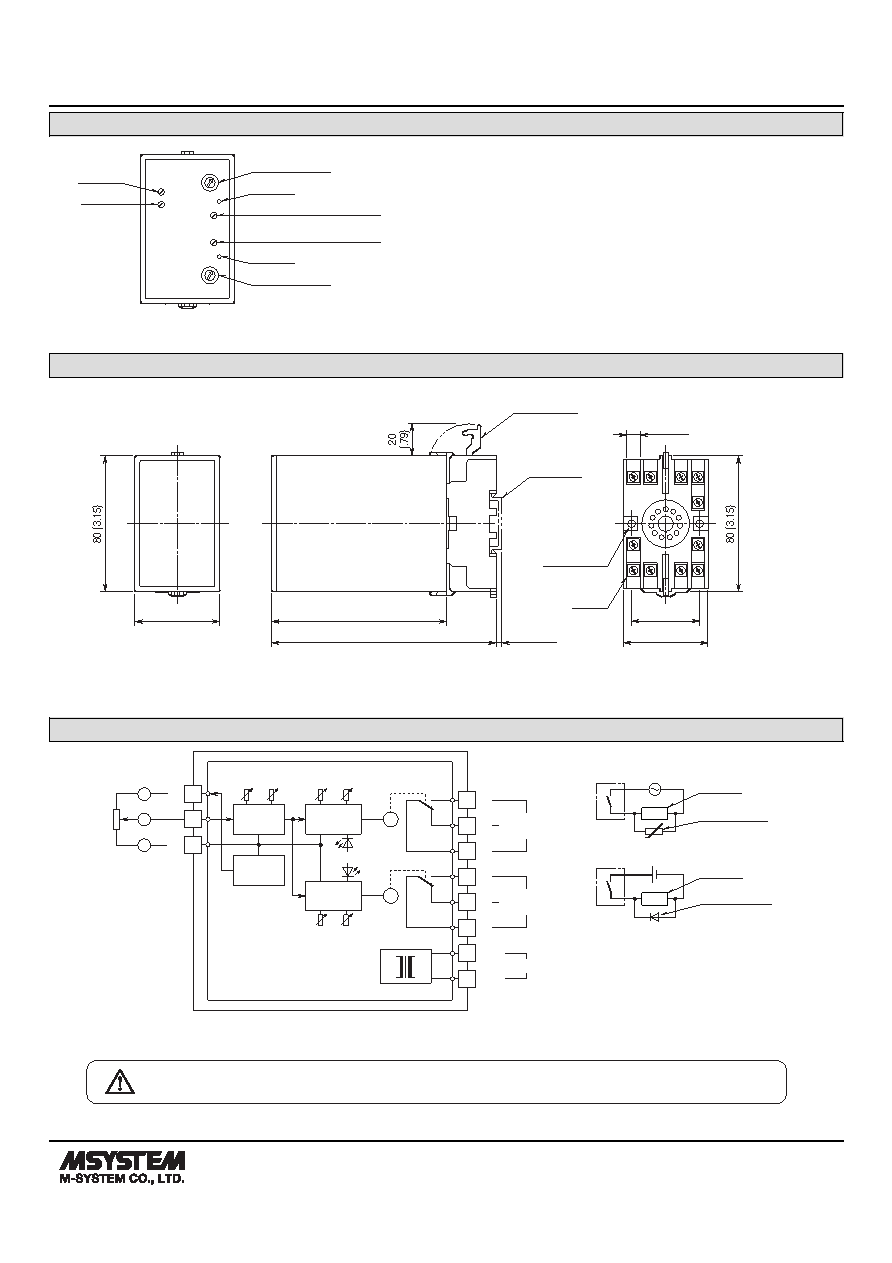

EXTERNAL VIEW

No.1 LED

No.1 Deadband (Hysteresis) Adj.

No.2 Deadband (Hysteresis) Adj.

No.2 LED

No.1 Setpoint Adj.

No.2 Setpoint Adj.

Zero Adj.

Span Adj.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

50 (1.97)

103 (4.06)

132 (5.20)

• When mounting, no extra space is needed between units.

5

6

7

8

2

1

11

10

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

25 (.98) deep

SCREW

3

9

4

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

max.

min.

*

*

Inductive

Load (Coil)

LOAD

Diode, Varistor or

CR Circuit

Inductive

Load (Coil)

Varistor or Spark

Quenching Circuit

U

LOAD

■ Relay Protection

• AC Powered

• DC Powered

Base Socket

Low Drift

Amplifier

*Relay status for output codes “1” & “4”, at power OFF.

Exc. Volt.

Generator

4

5

3

2

1

POTENTIOMETER

6

+

–

U(+)

V(–)

POWER

7

8

Ry

10

11

9

Ry

2

3

1

SETPOINT

HYSTERESIS

(DEADBAND)

SETPOINT

HYSTERESIS

(DEADBAND)

H

L

C

SETPOINT 1

OUTPUT

H

L

C

SETPOINT 2

OUTPUT

S

Z

Comparator

Comparator

Specifications are subject to change without notice.
