EVALUATION BOARD LAYOUT AND THERMAL GROUNDING
An evaluation board is available for testing the ADRF6806. The
evaluation board schematic is shown in Figure 43.
Table 7 provides the component values and suggestions for
modifying the component values for the various modes of
operation.
IBBN
LOSEL
IBBP
GND
VCCLO
LON
LOP
DECL1
VTUNE
GND
QBBN
GND
CLK
DATA
QBBP
VCCLO
LE
GND
GND
GND

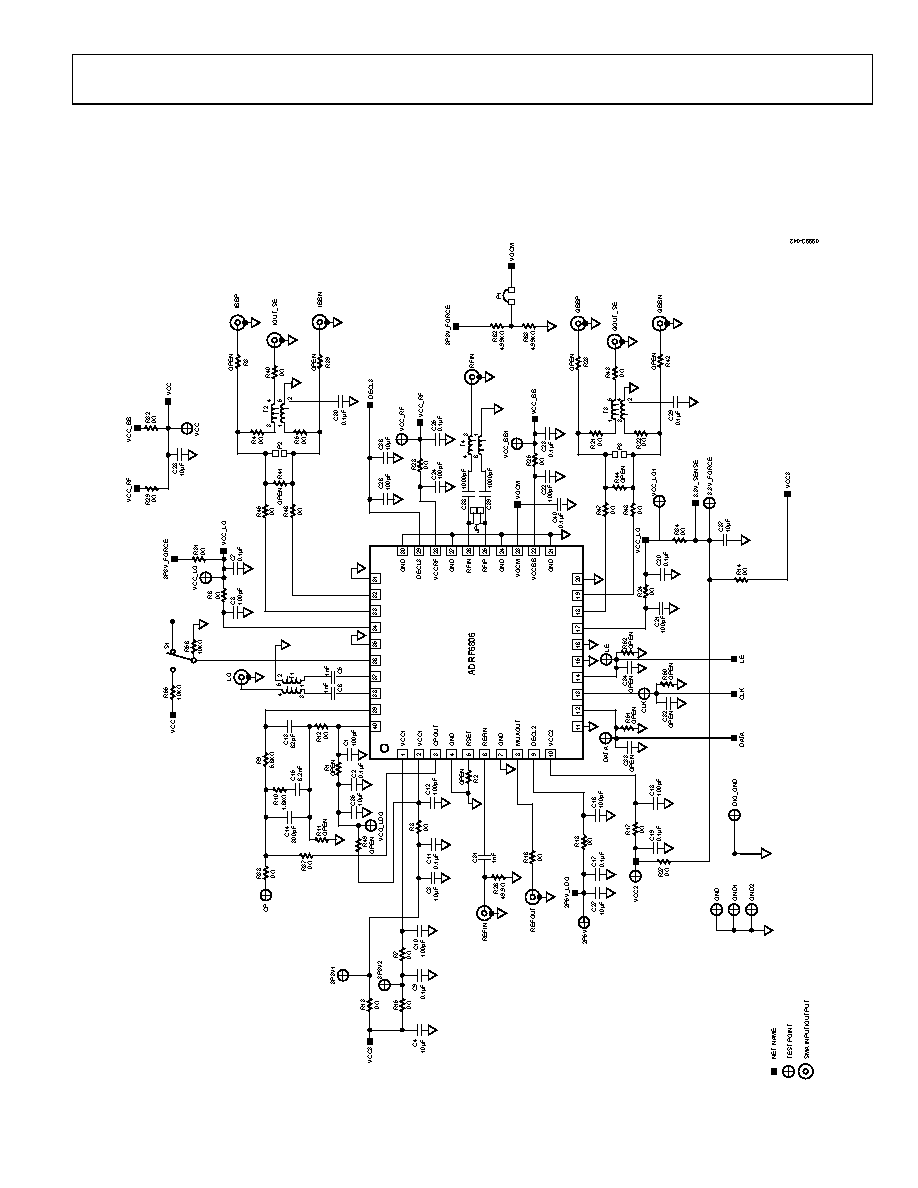

Figure 43. Evaluation Board Schematic
