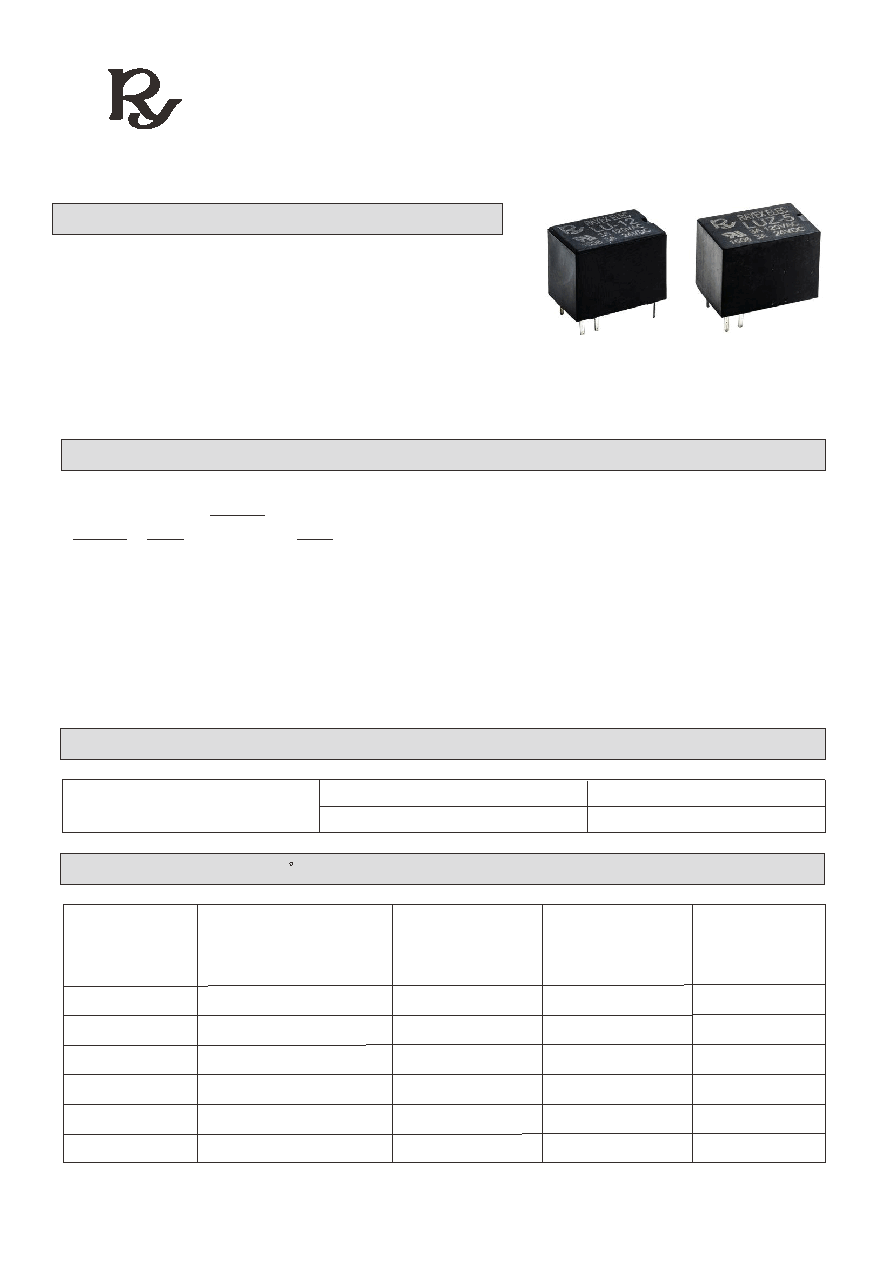

LU-5-R datasheet(1/2 Pages) RAYEX

Part #	LU-5-R

Description	LU SERIES

PDF	2 Pages

Scroll/Zoom	100%

Manufacturer	RAYEX [RAYEX ELECTRONICS CO., LTD]

Direct Link	https://www.relay-rayex.com/

Logo

1 / 2 page

LU SERIES

RAYEX ELEC.

UL FILE NO.: E126157

CUL FILE NO.: E126157

·Subminiature relay.

·Standard type and High sensitivity type available.

·UL and CUL safety approval

·Using at microprocessor control, household security,

and peripheral equipments.

Coil Nominal

Voltage

(VDC)

Resistance Tol. 10%

±

(Ohms )

Nominal Current

(mA)

Maximum

Pick Up

Voltage (V)

Minimum

Drop Out

Voltage (V)

3

5

6

9

12

24

45

125

180

405

720

2,880

66.7

40.0

33.3

22.2

16.7

8.3

2.25

3.75

4.5

6.75

9.0

18.0

0.3

0.5

0.6

0.9

1.2

2.4

1 Form C (1PDT)

AC 120V

DC 24V

3A

FEATURES

ORDERING INFORMATION

COIL DATA(0.2W, at 25 )

C

12

LU

Z

1

2

3

CONTACT RATING

1. Type

2. Nil : Standard Type

Z : Contact Terminals & Coil Terminals

arrange in one side

3. Coil Nominal Voltage
