Control Relays and Timers
EASY Intelligent Relays
Dimensions
Approximate Dimensions in Inches (mm)

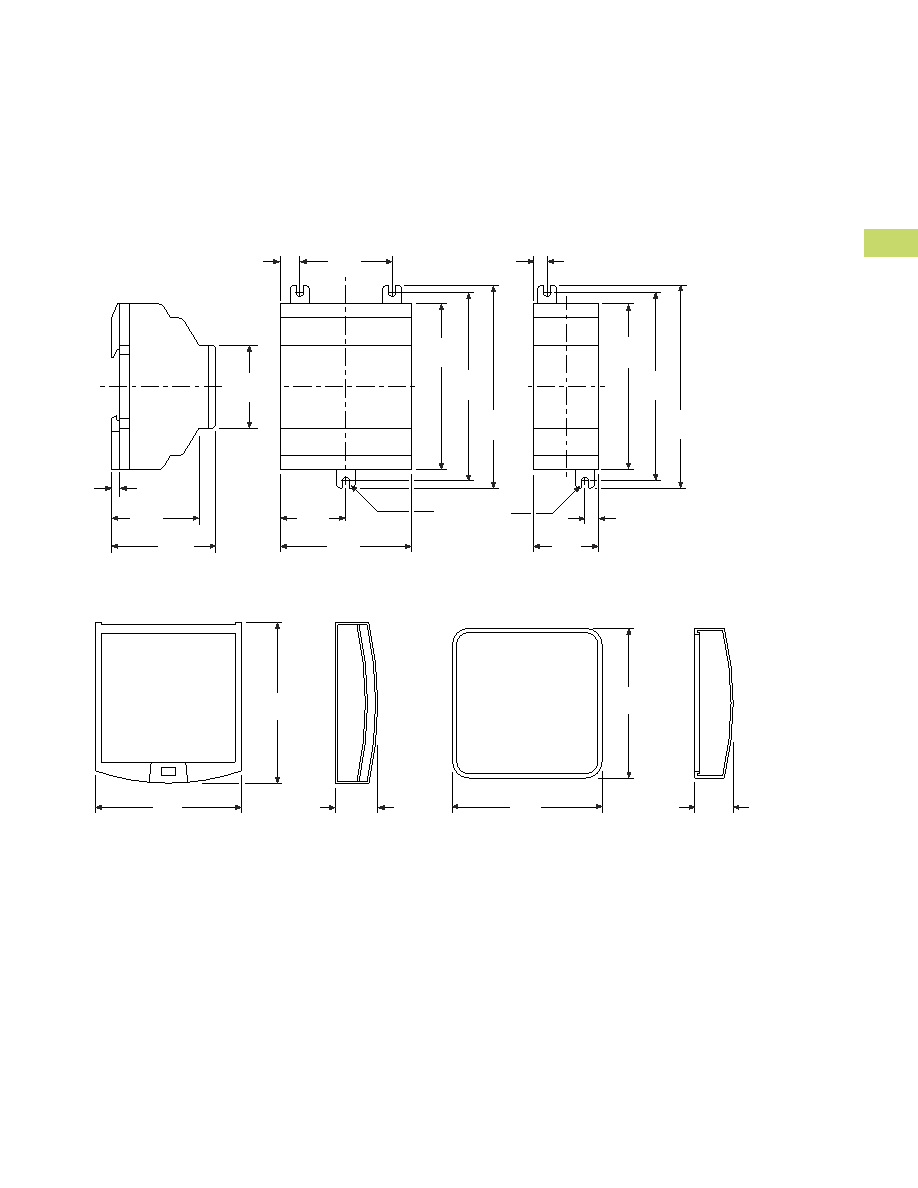

EASY200-POW/EASY256-HCI and EASY400-POW Series, Drawing Number MD05013004E
MFD-XS-80 and MFD-XM-80 Series, Drawing Number MD05013009E
2.81
(71.5)
1.41
(35.8)
3.54
(90.0)
4.02
(102.0)
4.33
(110.0)
1.97
(50.0)
0.42
(10.8)
1.77
(45.0)
0.18
(4.5)
2.22
(56.5)
1.87
(47.5)
(M4)
.157
(3.9)
Dia.
0.30
(7.5)
0.30
(7.5)
1.40
(35.5)
3.54
(90.0)
4.02
(102.0)
4.33
(110.0)
EASY400-POW
EASY256-HCI
EASY200-POW
0.98
(25.0)
3.74
(95.0)
3.41
(86.5)
3.48
(88.5)
3.48
(88.5)
0.89
(22.5)
MFD-XS-80
MFD-XM-80
