TDA2822-S08-R Datasheet(PDF) 4 Page - Unisonic Technologies |
|
|
|||||||||||||||||||||||||||||
TDA2822-S08-R Datasheet(HTML) 4 Page - Unisonic Technologies |
|
|

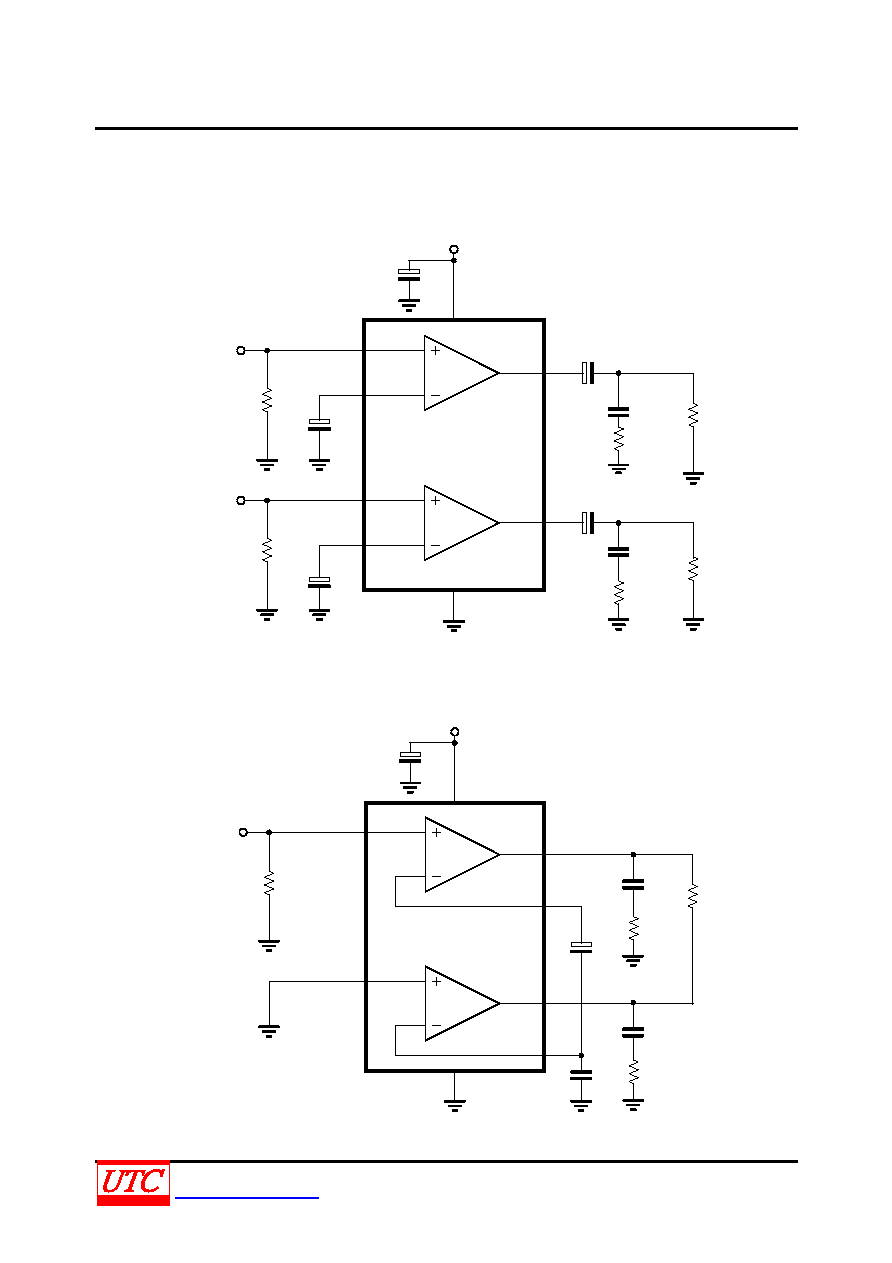

4 / 5 page  TDA2822 LINEAR INTEGRATED CIRCUIT UNISONICTECHNOLOGIESCO.,LTD 4 www.unisonic.com.tw QW-R107-006.E TEST CIRCUIT STEREO INPUT1 INPUT2 R1 10k Ω C1 100 µF RL C6 0.1 µF R3 4.7 Ω R4 4.7 Ω C7 0.1 µF RL C5 470 µF R2 10k Ω C2 100 µF C3 100 µF VCC C4 470 µF 1 2 3 4 5 6 7 8 BRIDGE INPUT1 R1 10k Ω RL C2 0.1 µF R2 4.7 Ω R3 4.7 Ω C3 0.1 µF C5 100 µF VCC C4 0.01 µF C1 10 µF 1 2 3 4 5 6 7 8 |
|
|
