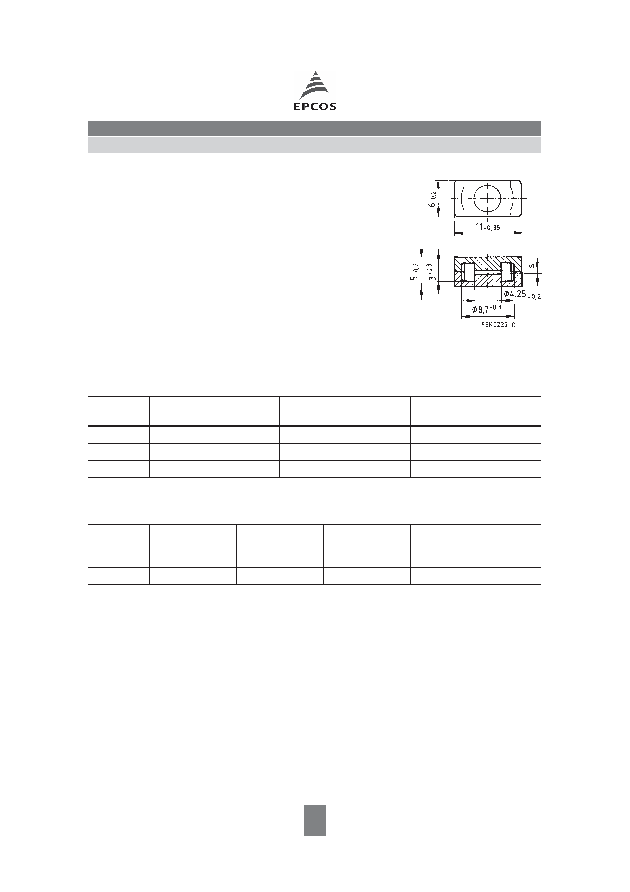

1 / 3 page

466 08/01

I In accordance with IEC 61860

I For transformers featuring high inductance

and low overall height

I ER11/5 cores are supplied in sets

Magnetic characteristics (per set)

Σl/A = 1,1 mm–1

le

= 14,1 mm

Ae

= 12,4 mm2

Ve

= 174 mm3

Approx. weight 0,85 g/set

Ungapped

Gapped

Material

AL value

nH

µe

Ordering code

T38

6400 + 40/– 30 %

5600

B65525-J-Y38

N49

800 + 30/– 20 %

715

B65525-J-R49

N87

1200 + 30/– 20 %

1050

B65525-J-R87

Material

AL value

nH

s

approx.

mm

µe

Ordering code

N87

160

± 3 %

0,08

140

B65525-J160-A87

B65525

Core

ER 11/5
