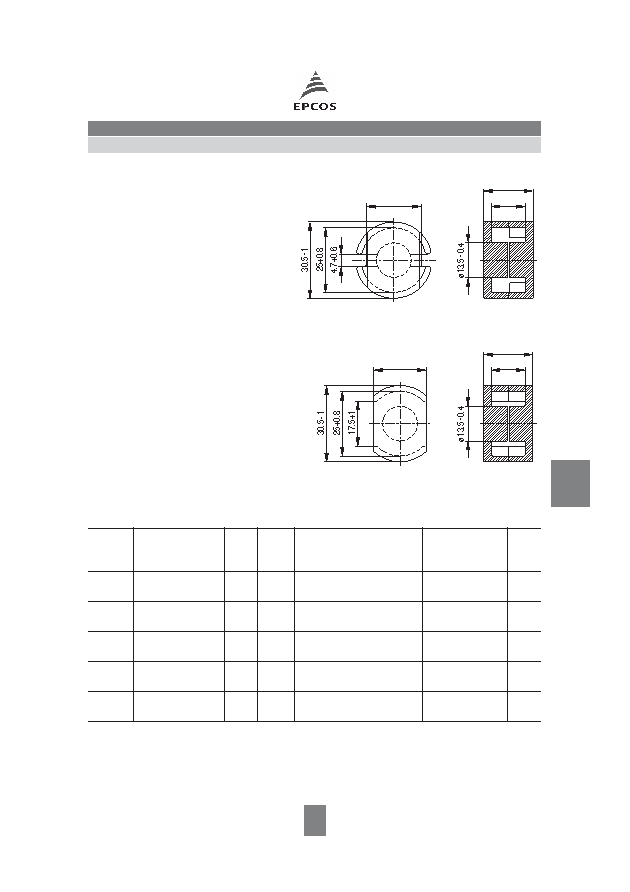

377 08/01
Core
I Also available with center hole
I Types with special AL value on request
I TT/PR cores are supplied in sets
Magnetic characteristics (per set)
Σle/Ae = 0,39 mm–1
le
= 46,4 mm
Ae
= 119 mm2
Amin = 99,4 mm2
Ve
= 5534 mm3
Approx. weight TT 33,3 g/set
PR 29,6 g/set
Ungapped
Material
AL value
nH
µe
AL1min
nH
PV
W/set
Ordering code
Type
N87
5400 + 30/– 20 % 1680 2900
< 2,8
(200 mT, 100 kHz, 100 °C)
B65730-J-R87
B65735-J-R87
TT
PR
N26
5900 + 30/– 20 % 1830
B65730-J-R26
B65735-J-R26
TT
PR
N30
9400 + 30/– 20 % 2920
B65730-J-R30
B65735-J-R30
TT
PR
T65
14000 + 30/– 20 % 4340
B65730-J-R65
B65735-J-R65
TT
PR
T38
22800 + 40/– 30 % 7075
B65730-J-Y38
B65735-J-Y38
TT
PR
FPK0288-C
0,9
20,9 _
19 0,4
_
13+0,4
FPK0289-K
19 0,4
_
13+0,4
20,2±0,3
TT
PR
B65730
B65735
PR 30
× 19
TT 30
× 19
