Click here for the 3D model.

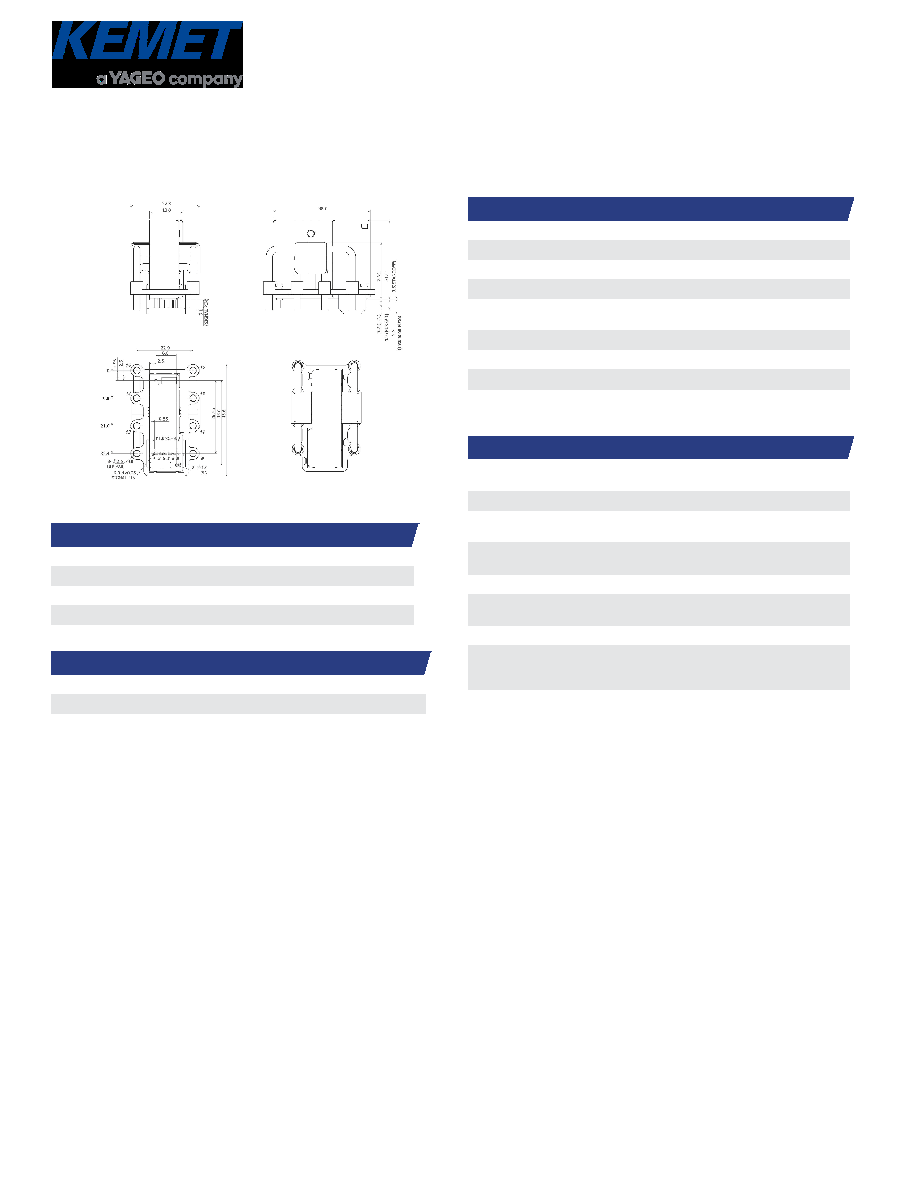

Dimensions



L

31mm MAX

W

43.6mm MAX

T

27.3mm MAX

LL

3.2mm MAX

Packaging Specifications



Packaging

Tray, Box

Packaging Quantity

150

Typical Component Weight

32 g

General Information



Series

FG-R04

Type

Current

Style

Through-Hole

Description

Fluxgate-Based Residual Current Sensor

Features

Open-loop, Fluxgate-Based Current Detection, PCB

Mounting

Lead

6 Pin

RoHS

Yes

REACH

Yes

Qualifications

IEC

Specifications



Temperature

Range

-40/+105°C

Voltage DC

2.25 V (PIN3, Analog Output; typical)

Power Supply

Voltage

5 V +/- 5%

Current

6 mA (MAX, 60 Hz; CCID5 Detection), 20

mArms (MAX, 60 Hz; CCID20 Detection)

Sensitivity

40 V/A (PIN3, AOUT; typical)

Frequency

Range

150 Hz MAX (at -3 dB; PIN3 AOUT)

Measuring Range

+/-50 mA

AC Alarm

Response Time

200 maximum (ms, @20 mArms); 20 maximum

(ms, @150 mArms); 10 maximum (ms, @264

mArms)

DC Alarm

Response Time

200 maximum (ms, @6 mA); 100 maximum (ms,

@20 mA); 20 maximum (ms, @150 mA); 10

maximum (ms, @264 mA)

FG-R04-4GA

Aliases (USETR044GAA000)

KEMET, FG-R04, Current, Through-Hole, Residual, Open-loop, Fluxgate-

Based Current Detection, PCB Mounting
