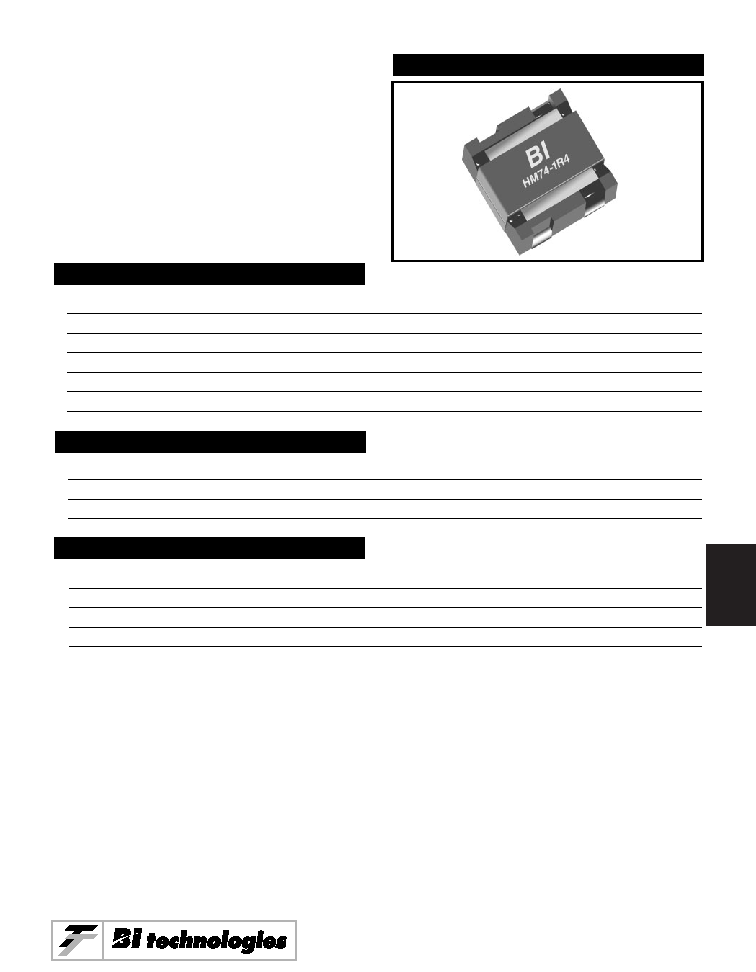

Model HM74 Series

MODEL HM74 SERIES

High Frequency

High Current

Low Profile

Surface Mount Inductors

NEW PRODUCT

FEATURES AND BENEFITS

• Closed magnetic circuit for high density board assembly

• High performance, low loss ferrite core up to 5 MHz

• Low profile designed for machine placement

• Low DCR and high current up to 27 amps continuous

• Class F design is compatible with vapor phase and infrared reflow soldering

• Custom designs available

ELECTRICAL / ENVIRONMENTAL

Operating Temperature Range

-25°C to +135°C

Storage Temperature Range

-40°C to +85°C

Ambient Temperature, Maximum

80°C

Insulation System

Class F, 155°C

APPLICATIONS

• Laptop and notebook computers

• DC/DC converters in distributed power systems or VRM applications

• Inductor for general purpose use

Specifications subject to change without notice.
