ADA4610-1/ADA4610-2/ADA4610-4

Data Sheet

Rev. I | Page 14 of 27

–20

–40

10k

100k

10M

100M

FREQUENCY (Hz)

AV = +100

AV = +10

AV = +1

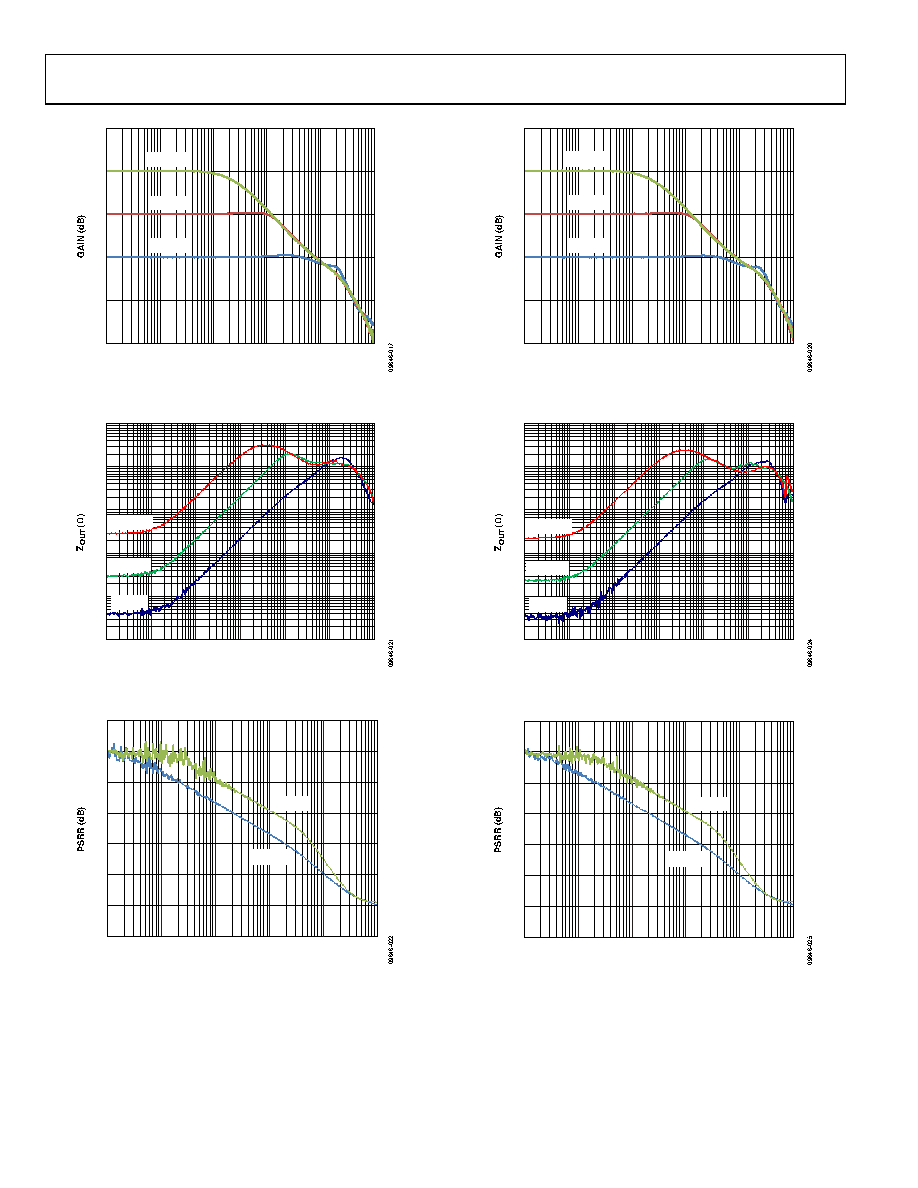

Figure 27. Closed-Loop Gain vs. Frequency, VSY = ±5 V

100

0.1

0.01

100

10k

100k

10M

100M

FREQUENCY (Hz)

AV = +100

AV = +10

AV = +1

Figure 28. Closed-Loop Output Impedance (ZOUT) vs. Frequency, VSY = ±5 V

120

100

–20

100

10k

100k

10M

FREQUENCY (Hz)

PSRR–

PSRR+

Figure 29. PSRR vs. Frequency, VSY = ±5 V

–20

–40

10k

100k

10M

100M

FREQUENCY (Hz)

AV = +100

AV = +10

AV = +1

Figure 30. Closed-Loop Gain vs. Frequency, VSY = ±15 V

100

0.1

0.01

100

10k

100k

10M

100M

FREQUENCY (Hz)

AV = +100

AV = +10

AV = +1

Figure 31. Closed-Loop Output Impedance (ZOUT) vs. Frequency, VSY = ±15 V

120

100

–20

100

10k

100k

10M

FREQUENCY (Hz)

PSRR–

PSRR+

Figure 32. PSRR vs. Frequency, VSY = ±15 V
