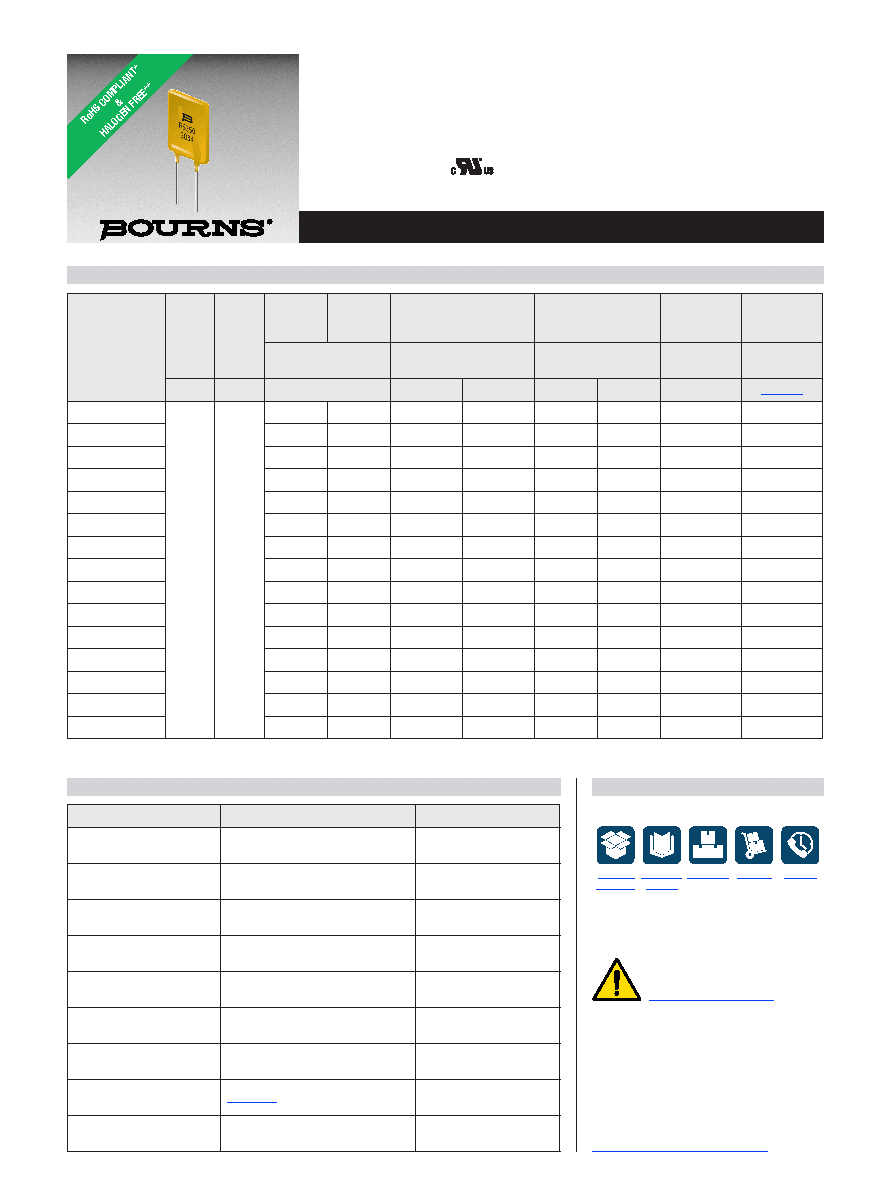

1 / 9 page  MF-RHS Series - High Temperature PTC Resettable Fuses Features n Operating temperature range up to 125 °C n Low thermal derating factor n Higher hold currents at elevated temperatures n RoHS compliant* and halogen free** n Agency recognition: Electrical Characteristics Model Vmax Imax Ihold Itrip Resistance Max. Time to Trip Tripped Power Dissipation Agency Recognition at 23 °C at 23 °C (Ohms) at 23 °C at 23 °C (Watts) cUL Volts Amps Amps Rmin R1Max.*** Amps Seconds Typ. E174545 MF-RHS350 16 100 3.5 7.0 0.018 0.050 17.5 4.5 3.0 3 MF-RHS400 4.0 8.0 0.016 0.044 20.0 5.0 3.0 3 MF-RHS450 4.5 9.0 0.0145 0.040 22.5 5.5 3.0 3 MF-RHS500 5.0 10.0 0.0135 0.038 25.0 5.8 3.0 3 MF-RHS550 5.5 11.0 0.0120 0.032 27.5 10.0 3.0 3 MF-RHS600 6.0 12.0 0.0090 0.0252 30.0 6.5 3.3 3 MF-RHS650 6.5 13.0 0.0095 0.0225 32.5 6.5 3.3 3 MF-RHS700 7.0 14.0 0.0085 0.0190 35.0 6.8 3.7 3 MF-RHS750 7.5 15.0 0.0073 0.0168 37.5 7.0 4.0 3 MF-RHS800 8.0 16.0 0.0060 0.0145 40.0 8.0 4.3 3 MF-RHS900 9.0 18.0 0.0046 0.0098 45.0 9.0 5.0 3 MF-RHS1000 10.0 20.0 0.0042 0.0090 50.0 10.0 5.4 3 MF-RHS1100 11.0 22.0 0.0038 0.0083 55.0 11.2 5.7 3 MF-RHS1200 12.0 24.0 0.0035 0.0077 60.0 12.5 6.0 3 MF-RHS1300 13.0 26.0 0.0033 0.0070 60.0 14.0 6.4 3 ***R1max: measured 1 hour post reflow. Additional Information Click these links for more information: PRODUCT SELECTOR TECHNICAL LIBRARY INVENTORY SAMPLES CONTACT Environmental Characteristics Item Condition Criteria Operating Temperature -40 °C to +125 °C Recommended Storage +40 °C max. / 70 % R.H. max. Passive Aging +85 °C, 1000 hours ±5 % typical resistance change Humidity Aging +85 °C, 85 % R.H. 1000 hours ±5 % typical resistance change Thermal Shock -40 °C to +125 °C, 10 times ±10 % typical resistance change Solvent Resistance MIL-STD-202, Method 215 No change (marking still legible) Vibration MIL-STD-883C, Method 2007.1 Condition A No change (Rmin < R < R1max) Moisture Sensitivity Level (MSL) See Note ESD Classification Class 6 (per AEC-Q200-2, HBM) * RoHS Directive 2015/863, Mar 31, 2015 and Annex. ** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
