BL-R2132W datasheet(1/2 Pages) BRIGHT

Part #	BL-R2132W

Description	GaP /GaP green Low power consumption.

PDF	2 Pages

Scroll/Zoom	100%

Manufacturer	BRIGHT [BRIGHT LED ELECTRONICS CORP]

Direct Link	http://www.brightled.co.kr

Logo

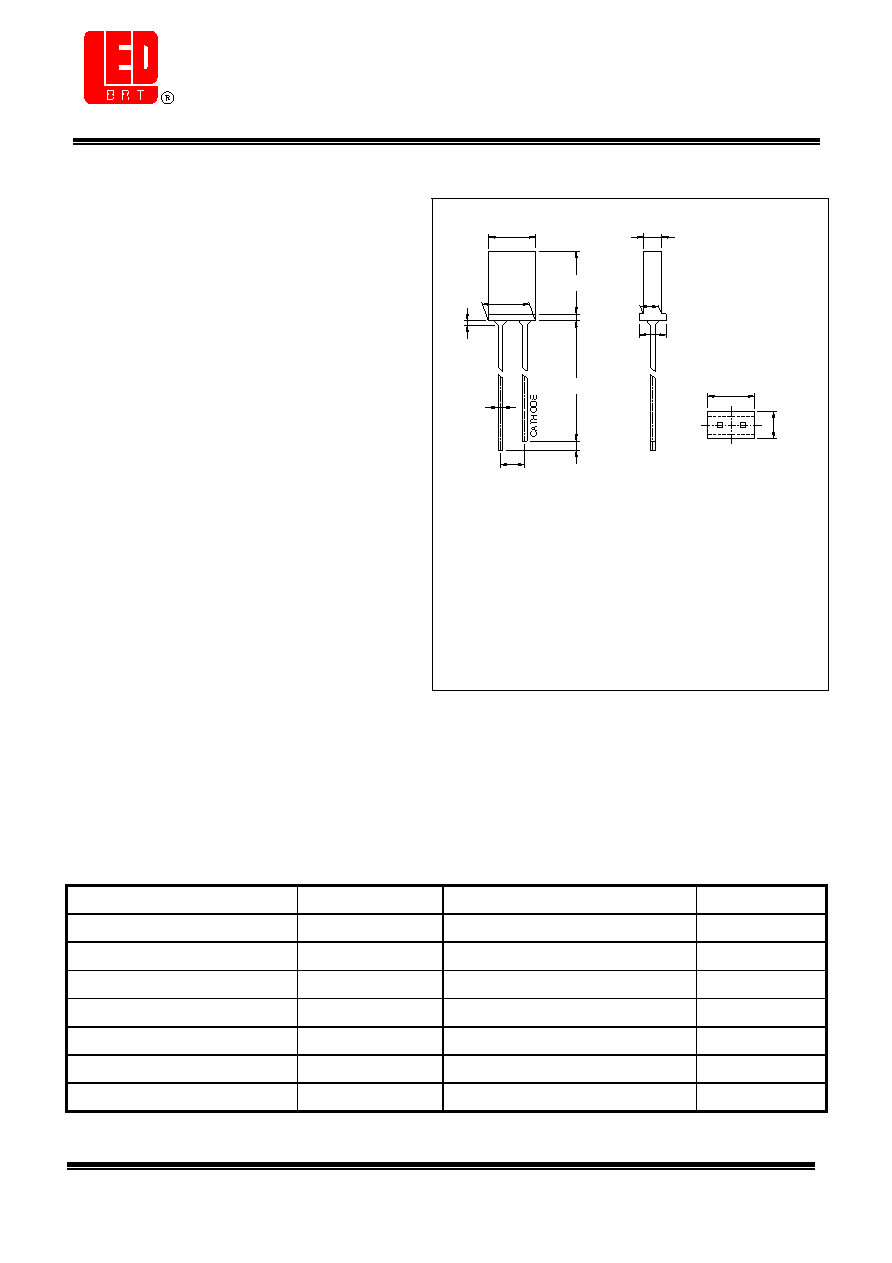

1 / 2 page

B

BR

RIIG

GH

HT

T L

LE

ED

D E

EL

LE

EC

CT

TR

RO

ON

NIIC

CS

S C

CO

OR

RP

P..

B

BL

L--R

R2

21

13

32

2W

W

Ver.1.0 Page: 1 of 2

SINCE 1981

6.5(.256)

1.0(.03) MIN.

25.4(1.0) MIN.

NOM.

1.5(.059)

MAX.

0.5(.02)

SQ.TYP.

2.54(.100)

5.03(.20)

4.9(.193)

2.8(.110)

5.03(.20)

1.9(.075)

0.7(.028)

2.0(.079)

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.

3. Lead spacing is measured where the leads emerge from

the package.

4. Specifications are subject to change without notice.

● Features:

●Package dimensions:

1. Chip material: GaP /GaP

2. Emitted color : green

3. Lens Appearance : green diffused

4. Low power consumption.

5. Most suitable for use like level indicator.

6. Excellent uniformity of light emittance.

7. Long life solid state reliability.

8. Compatible.

● Applications:

1. TV set

2. Monitor

3. Telephone

4. Computer

5. Circuit board

● Absolute maximum ratings(Ta=25℃)

Parameter

Symbol

Rating

Unit

Power Dissipation

Pd

80

mW

Forward Current

IF

30

mA

Peak Forward Current*1

IFP

150

mA

Reverse Voltage

VR

5

V

Operating Temperature

Topr

-40℃~80℃

Storage Temperature

Tstg

-40℃~85℃

Soldering Temperature

Tsol

260℃(for 5 seconds)

*1Condition for IFP is pulse of 1/10 duty and 0.1msec width.
