ST75185CPR Datasheet(PDF) 2 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
ST75185CPR Datasheet(HTML) 2 Page - STMicroelectronics |
|
|

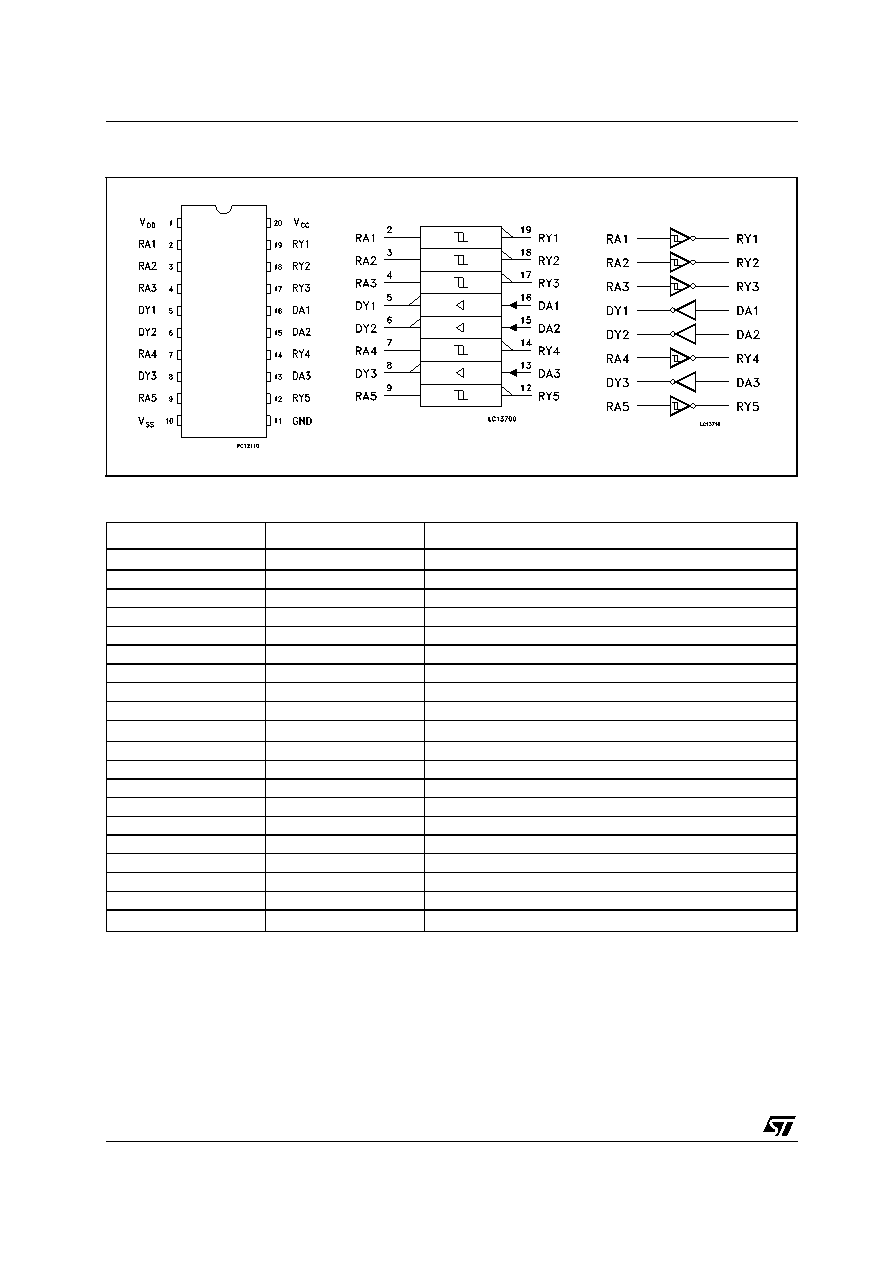

2 / 18 page  ST75185 2/18 PIN CONNECTION IEC LOGIC SYMBOL AND LOGIC DIAGRAM PIN DESCRIPTION PlN N° SYMBOL NAME AND FUNCTION 1VDD Supply Voltage (+12V) 2 RA1 First Receiver Input 3 RA2 Second Receiver Input 4 RA3 Third Receiver Input 5 DY1 First Driver Output 6 DY2 Second Driver Output 7 RA4 Fourth Receiver Input 8 DY3 Third Driver Output 9 RA5 Fifth Receiver Input 10 VSS Supply Voltage (-12V) 11 GND Ground 12 RY5 Fifth Receiver Ouput 13 DA3 Third Driver Intput 14 RY4 Fourth Receiver Ouput 15 DA2 Second Driver Input 16 DA1 First Driver Input 17 RY3 Third Receiver Ouput 18 RY2 Second Receiver Output 19 RY1 First Receiver Output 20 VCC Supply Voltage (+5V) |
|
|
