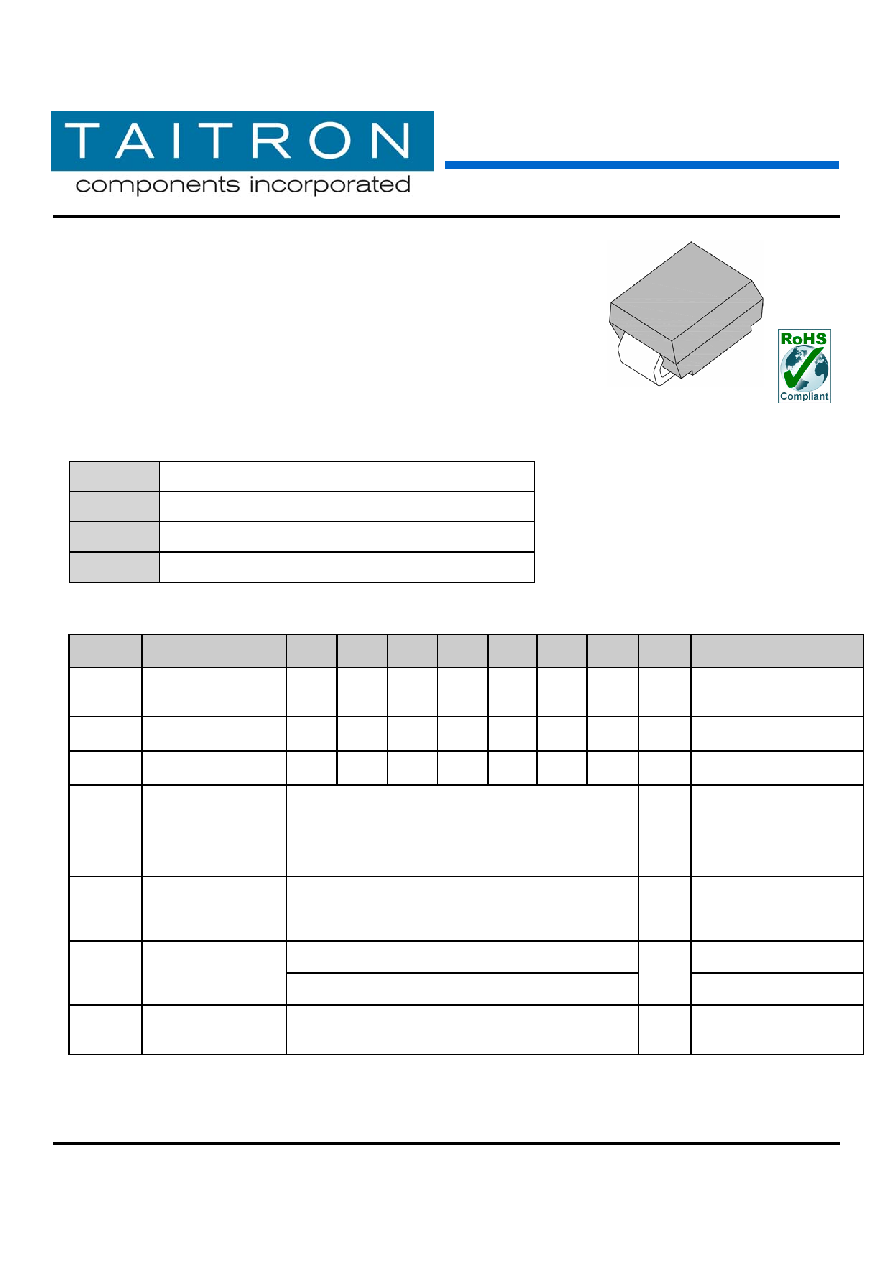

background image
Rev. A/JJ 2007-06-15
S3AB-S3MB
3.0A SURFACE MOUNT RECTIFIER
TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com
Page 1 of 5
Tel: (800)-TAITRON
(800)-824-8766
(661)-257-6060
Fax: (800)-TAITFAX
(800)-824-8329
(661)-257-6415
3.0A Surface Mount Rectifier
Features
• Glass passivated junction
• Plastic package has underwriters laboratory
flammability classification 94 V-0
• High temperature soldering: 250 °C / 10 seconds at terminals
• RoHS compliant
Mechanical Data
Case:
JEDEC DO-214AA molded plastic
Terminals:
Solder plated solderable per MIL-STD-750, Method 2026
Polarity:
cathode end indicated by color band
Weight:
0.003 Ounce, 0.093 gram
Maximum Ratings (T
Ambient=25ºC unless noted)
Symbol
Description
S3AB
S3BB
S3DB
S3GB
S3JB
S3KB
S3MB
Unit
Conditions
VRRM
Maximum Repetitive
Peak Reverse
Voltage
50
100
200
400
600
800
1000
V
VRMS
Maximum RMS
Voltage
35
70
140
280
420
560
700
V
VDC
Maximum DC
Blocking Voltage
50
100
200
400
600
800
1000
V
IAV
Maximum Average
Forward Rectified
Current @TL=103°C
3.0
A
Thermal resistance from
junction to ambient and
from junction to lead
mounted on P.C.B. with
0.3 x 0.3" (8.0 x 8.0 mm)
copper pad area
IFSM
Peak Forward Surge
Current
100
A
8.3ms single half sine-
wave superimposed on
rated load (JEDEC
method)
5.0
TA = 25 °C
IR
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
250
µA
TA = 125 °C
TJ,TSTG
Operating Junction
and Storage
Temperature Range
-55 to 150
° C
SMB
(DO-214AA)
