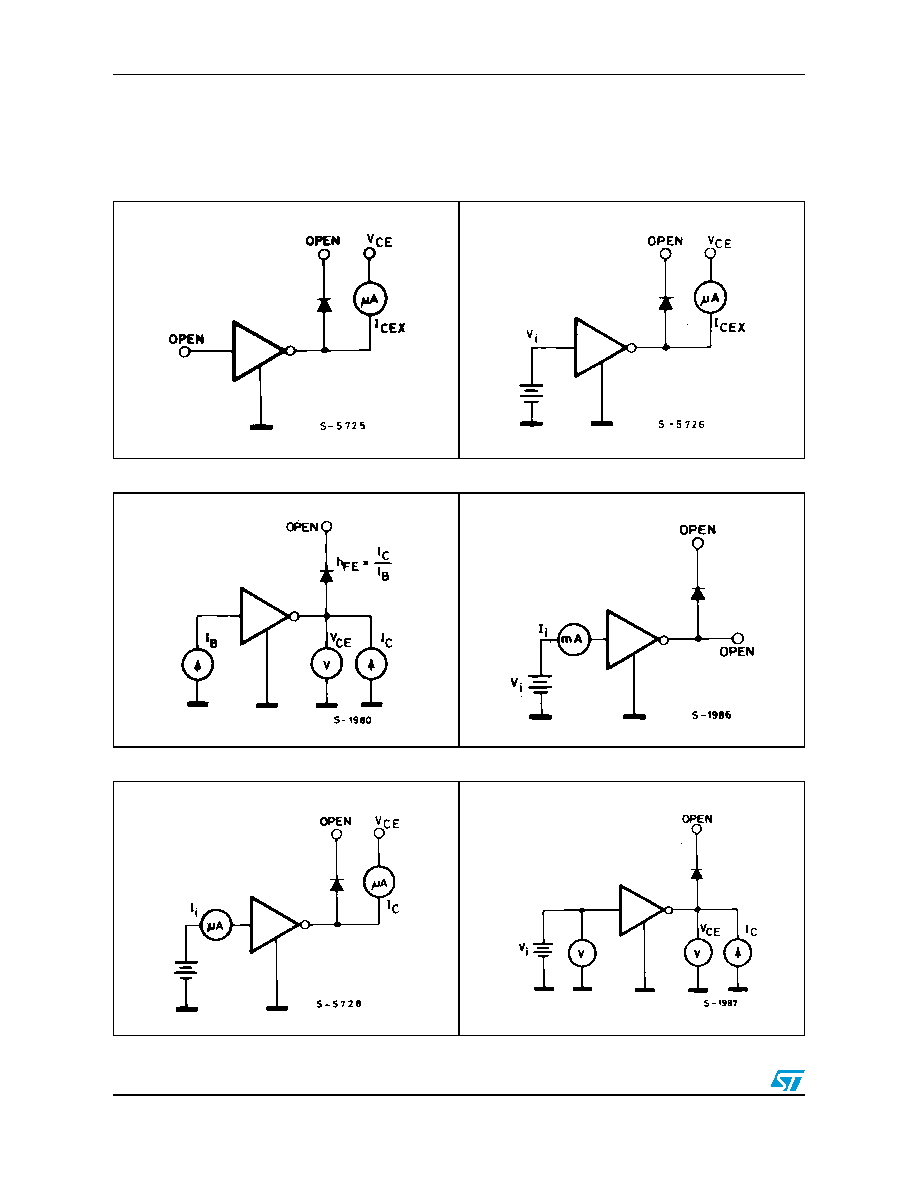

Test circuits
ULQ2001 - ULQ2003 - ULQ2004
8/14
5
Test circuits
Figure 3.
Output leakage current
Figure 4.
Output leakage current (for
ULN2002 only)
Figure 5.
Collector-emitter saturation voltage Figure 6.
Input current (ON)
Figure 7.
Input current (OFF)
Figure 8.
Input voltage
