7N80G-TQ2-R Datasheet(PDF) 5 Page - Unisonic Technologies |
|
|
|||||||||||||||||||||||||||||
7N80G-TQ2-R Datasheet(HTML) 5 Page - Unisonic Technologies |
|
|

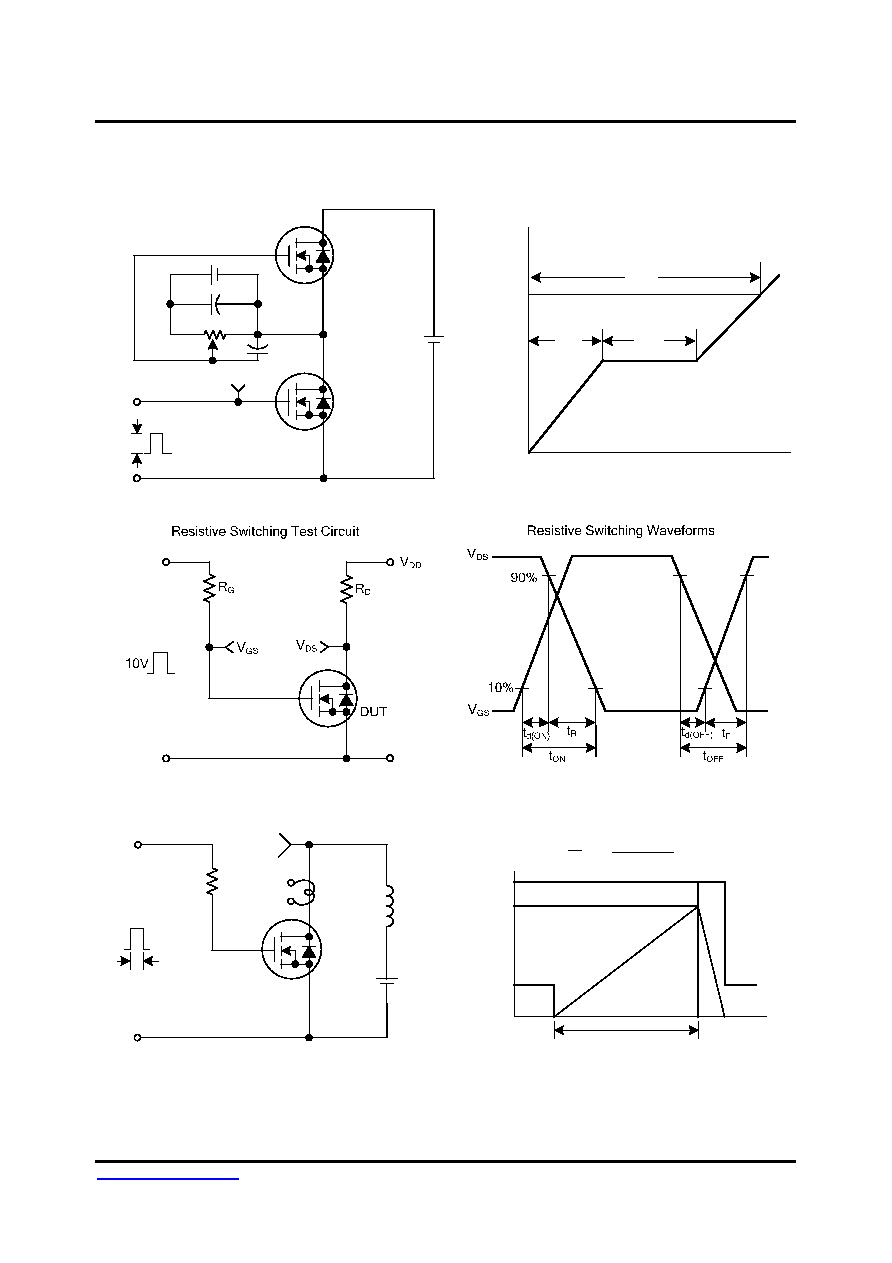

5 / 6 page  7N80 Preliminary Power MOSFET www.unisonic.com.tw 5 of 6 Copyright © 2011 Unisonic Technologies Co., Ltd QW-R502-523.b TEST CIRCUITS AND WAVEFORMS(Cont.) 50kΩ 300nF DUT VDS 10V 12V Charge QGS QGD QG Gate Charge Test Circuit Gate Charge Waveforms VGS VGS 200nF Same Type as DUT 3mA 10V tP RG DUT L VDS ID VDD Unclamped Inductive Switching Test Circuit tP VDD IAS BVDSS ID(t) VDS(t) Time EAS= 2 1 LI AS 2 BVDSS BVDSS-VDD Unclamped Inductive Switching Waveforms |
|
|
