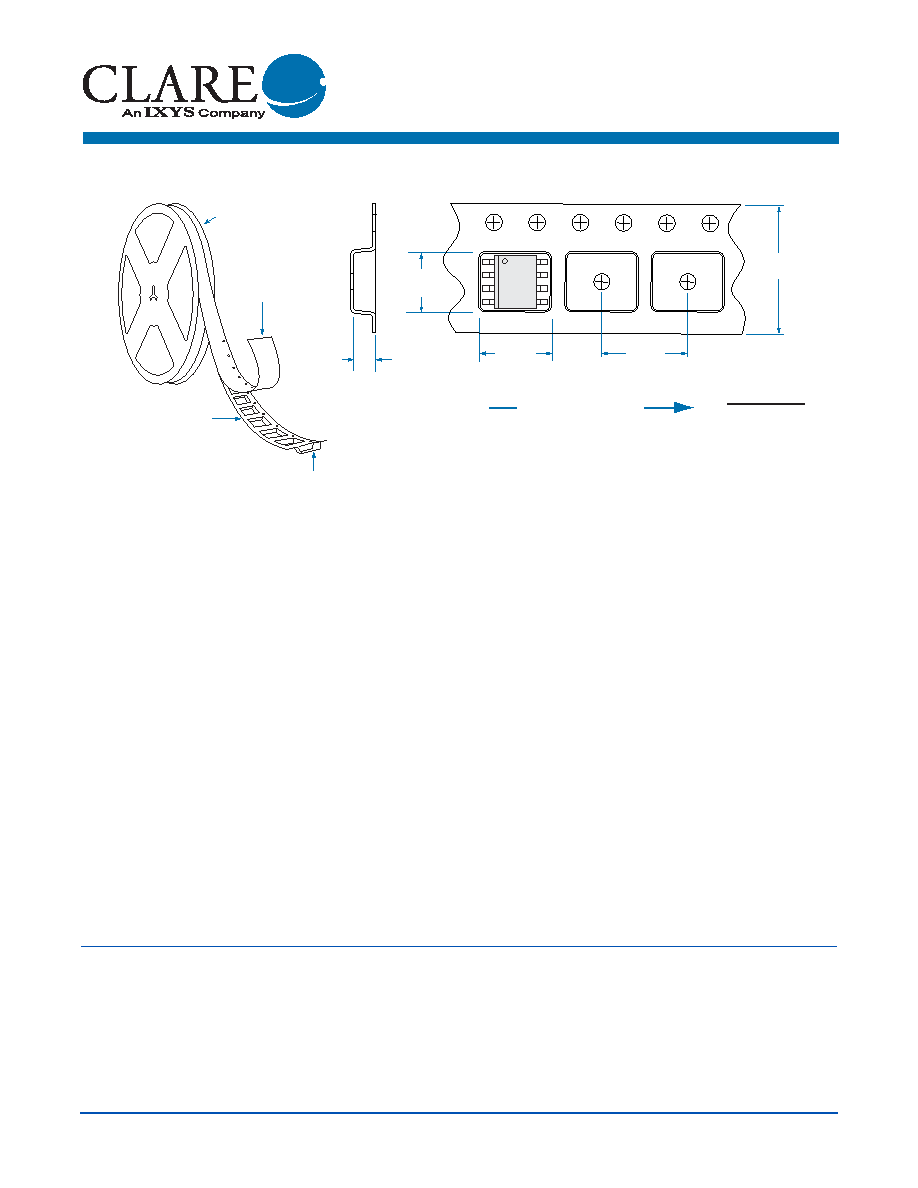

3.5.3 Tape & Reel Packaging for 8-Pin SOIC Package

Dimensions

mm

(inches)

NOTE: Tape dimensions not shown comply with JEDEC Standard EIA-481-2

Embossment

Embossed Carrier

Top Cover

Tape Thickness

0.102 MAX.

(0.004 MAX.)

330.2 DIA.

(13.00 DIA.)

K

(0.083)

W=12.00

(0.472)

B

(0.209)

User Direction of Feed

A

(0.256)

P=8.00

(0.315)
