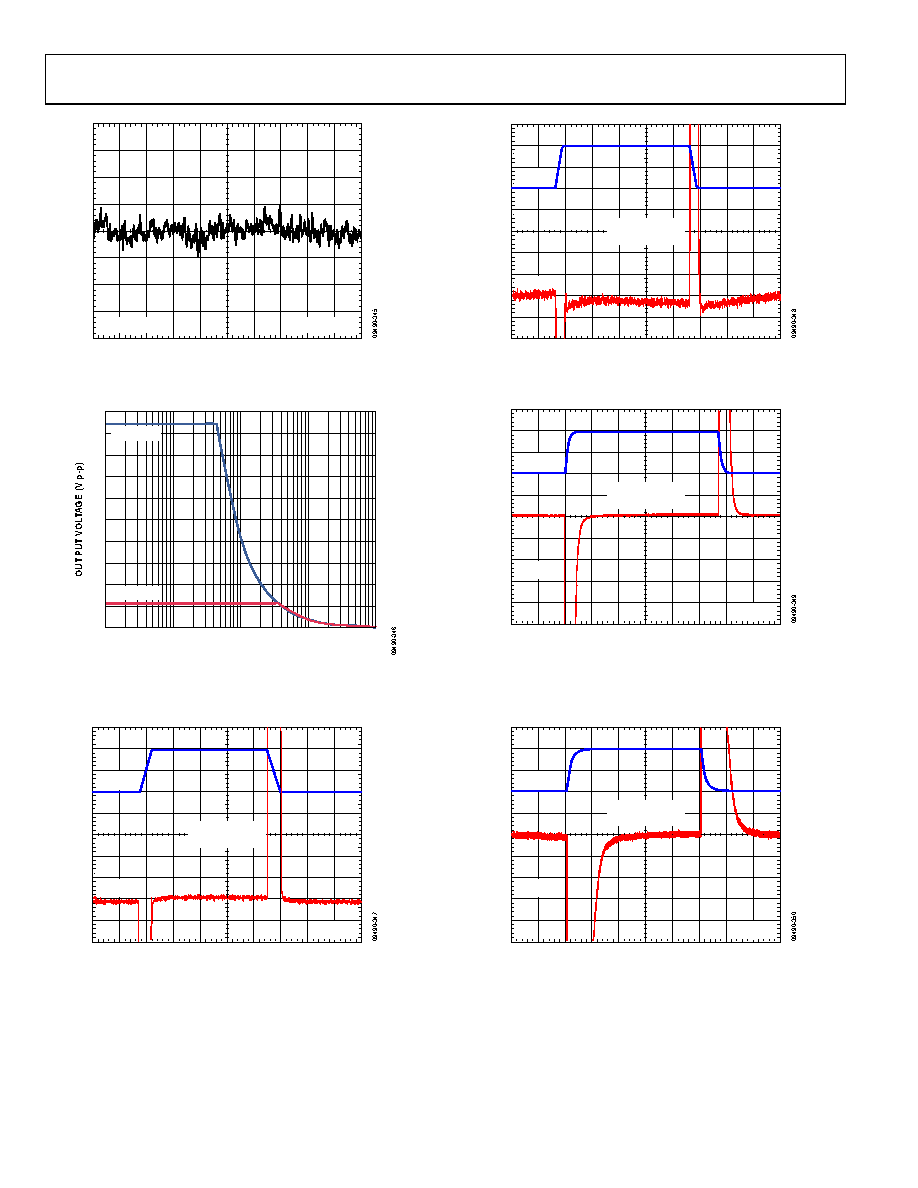

18 / 28 page  AD8426 Rev. 0 | Page 18 of 28 1.5pA/DIV 1s/DIV Figure 45. 0.1 Hz to 10 Hz Current Noise 0 3 6 9 12 15 18 21 24 27 30 100 1k 10k 100k 1M FREQUENCY (Hz) VS = ±15V VS = +5V Figure 46. Large Signal Frequency Response 5V/DIV 26µs TO 0.01% 27µs TO 0.001% 0.002%/DIV 50µs/DIV Figure 47. Large Signal Pulse Response and Settling Time, 10 V Step, Dual Supply, VS = ±15 V, G = 1 5V/DIV 17µs TO 0.01% 23µs TO 0.001% 0.002%/DIV 50µs/DIV Figure 48. Large Signal Pulse Response and Settling Time, 10 V Step, Dual Supply, VS = ±15 V, G = 10 5V/DIV 42µs TO 0.01% 60µs TO 0.001% 0.002%/DIV 100µs/DIV Figure 49. Large Signal Pulse Response and Settling Time, 10 V Step, Dual Supply, VS = ±15 V, G = 100 5V/DIV 580µs TO 0.01% 780µs TO 0.001% 0.002%/DIV 500µs/DIV Figure 50. Large Signal Pulse Response and Settling Time, 10 V Step, Dual Supply, VS = ±15 V, G = 1000 |
|
