A-DF15LL-WP-R datasheet(1/1 Pages) ASSMANN

Part #	A-DF15LL-WP-R

Description	D-SUB CONNECTOR WATERPROOF

PDF	1 Pages

Scroll/Zoom	100%

Manufacturer	ASSMANN [Assmann Electronics Inc.]

Direct Link	http://www.assmann.us

Logo

1 / 1 page

ASSMANN

Electronics, Inc.

THIS DRAWING IS UNPUBLISHED

All International Rights Reserved

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@usa-assmann.com

RoHS

Compliant

ITEM NO.

TITLE

= Assmann logo

A-DF15LL-WP-R

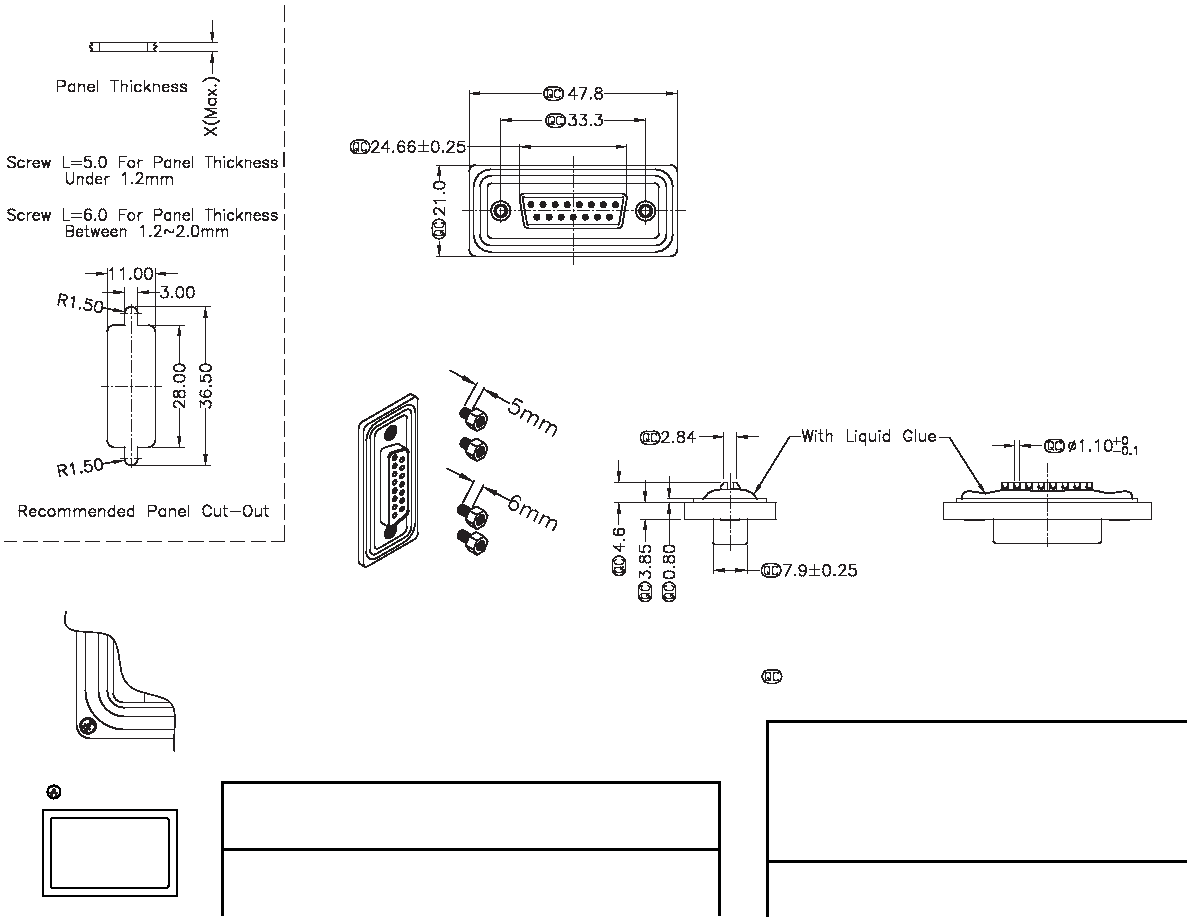

D-Sub Connector Waterproof, Solder Cup Version,

Female, 15-Pin

Material:

• Waterproof Rate: IP67

• Connector: Black, Nylon + GF

• Pin: Copper Alloy, Gold Plated

• Applicable Wire Range: 22AWG - 26AWG

• Insulators: PBT

• Max Torque on hex stand off: 9.92LB

Electrical:

• Current Rating: 5A

• Dielectric voltage: 500V AC / 1 Minute

• Insulation resistance: >500M

Min.

• Operating Temperature: -40°C to +105°C

= Important Dimension

Similar Part No. - A-DF15LL-WP-R
