Part #	A-LED8-1RAAS-PR7-1-R

Description	WATERPROOF LED - ROD COLOR, M8 SIZE CONNECTOR

PDF	1 Pages

Scroll/Zoom	100%

Manufacturer	ASSMANN [Assmann Electronics Inc.]

Direct Link	http://www.assmann.us

Logo

1 / 1 page

ASSMANN

Electronics, Inc.

THIS DRAWING IS UNPUBLISHED

All International Rights Reserved

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@usa-assmann.com

RoHS

Compliant

ITEM NO.

TITLE

= Assmann logo

A-LED8-1RAAS-PR7-1-R

Unit: MM±0.25MM

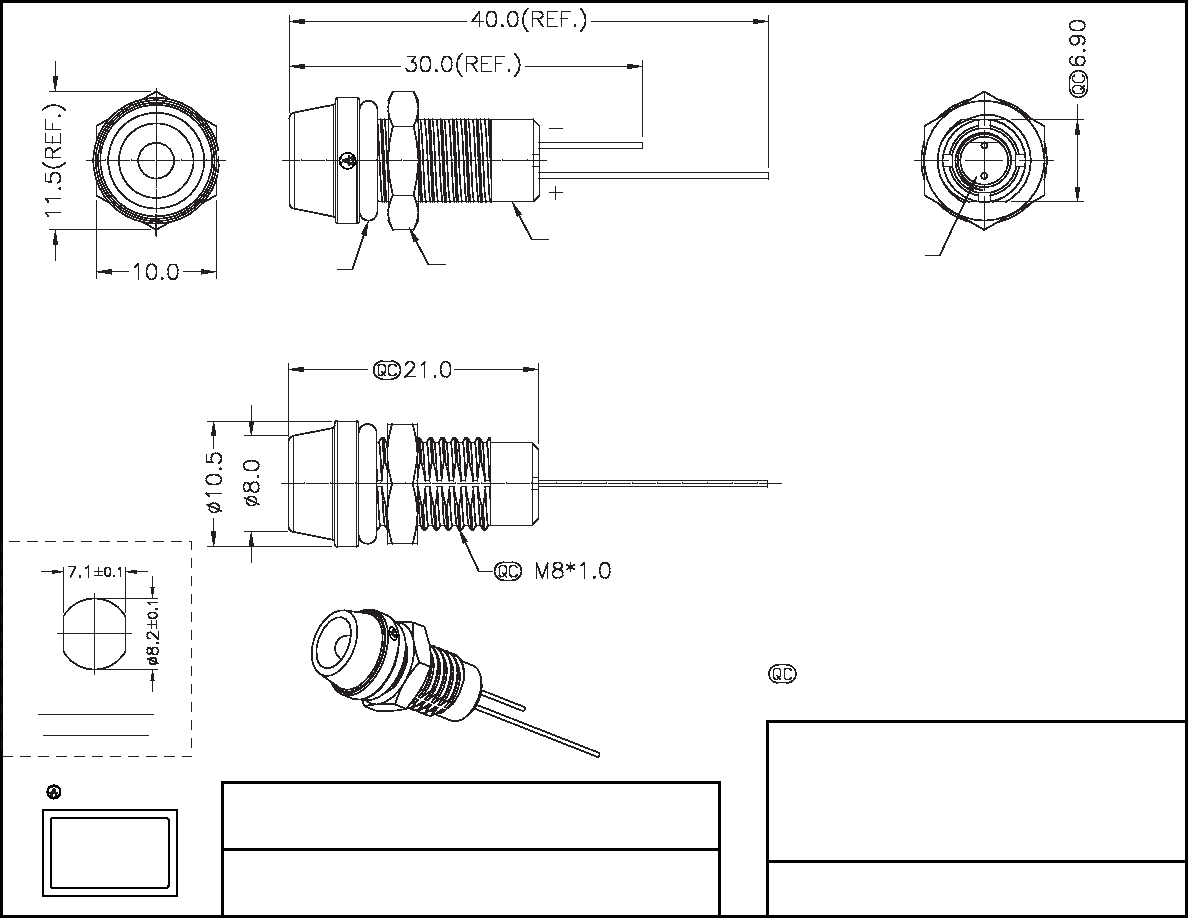

Waterproof LED - Red color, M8 size connector,

ø3MM, Plastic housing, Solder pins, IP67 unmated

Quality Control: Important Dimension to check

Material:

• Waterproof Rate: IP67

• LED Holder: PC+ABS, black

• LED: ø3MM, Red

• O-ring: EPDM, black

• Screw Nut: Nylon+GF

• Operating Temperature: -40°C~+80°C

• For Panel Thickness 6.5MM Max.

• Forward Voltage: Red Typ. 2.2V/Max.2.4V

• Forward Current: Red Max. 30mA

• Reverse Voltage: 5V DC

• Luminous Intensity: Min.1,080/Typ.2,000(Mcd)

Recommended

Panel Cut-Out

O-ring

Screw

Nut

Half-finished

goods

Liquid Glue
