ADP151
Data Sheet
Rev. E | Page 10 of 24
CH1 1V
CH2 2mV
M10µs
A CH1
4.56V
T 10.80%
1
2
T
INPUT VOLTAGE
VOUT

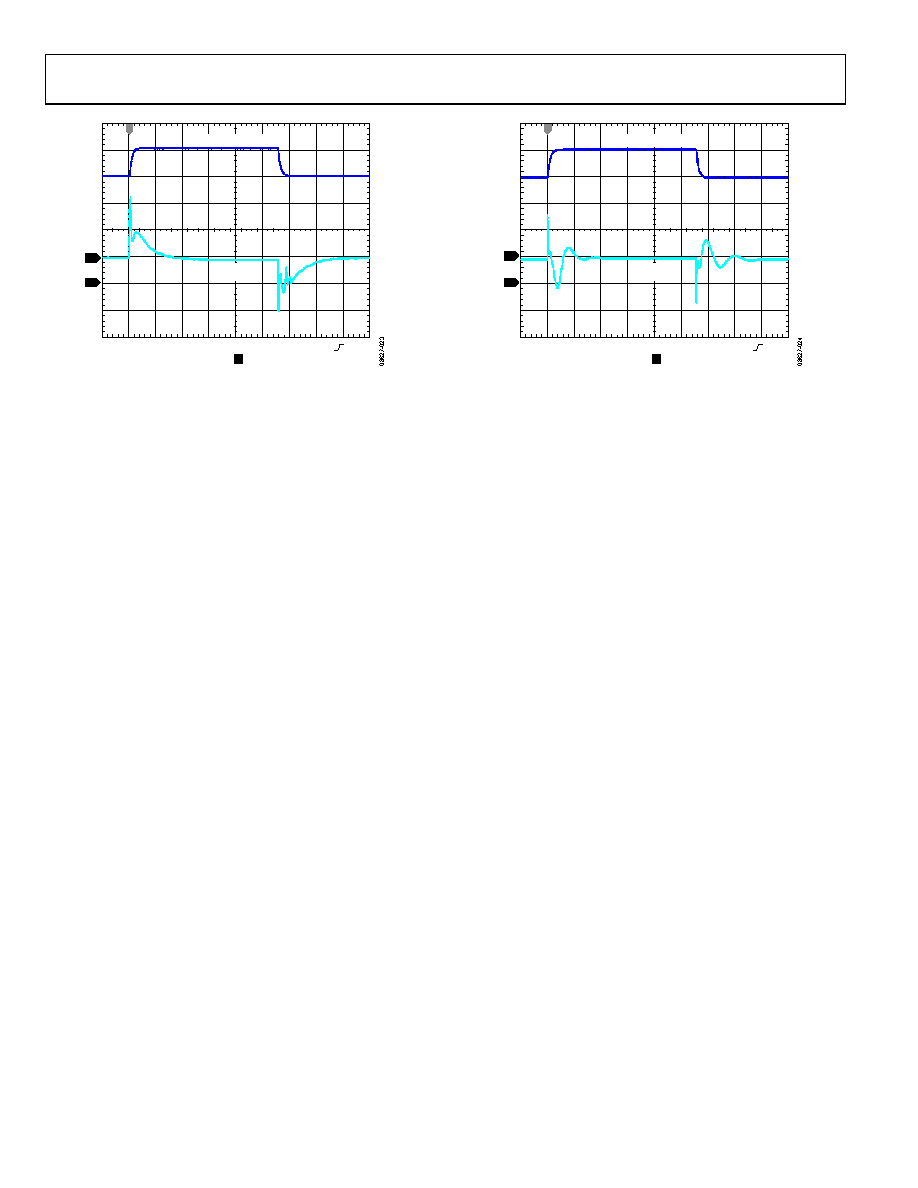

Figure 25. Line Transient Response, CIN, COUT = 1 μF, ILOAD = 200 mA
CH1 1V
CH2 2mV
M10µs
A CH1
4.56V
T 10.80%
1
2
T
INPUT VOLTAGE
VOUT
Figure 26. Line Transient Response, CIN, COUT = 1 μF, ILOAD = 1 mA
