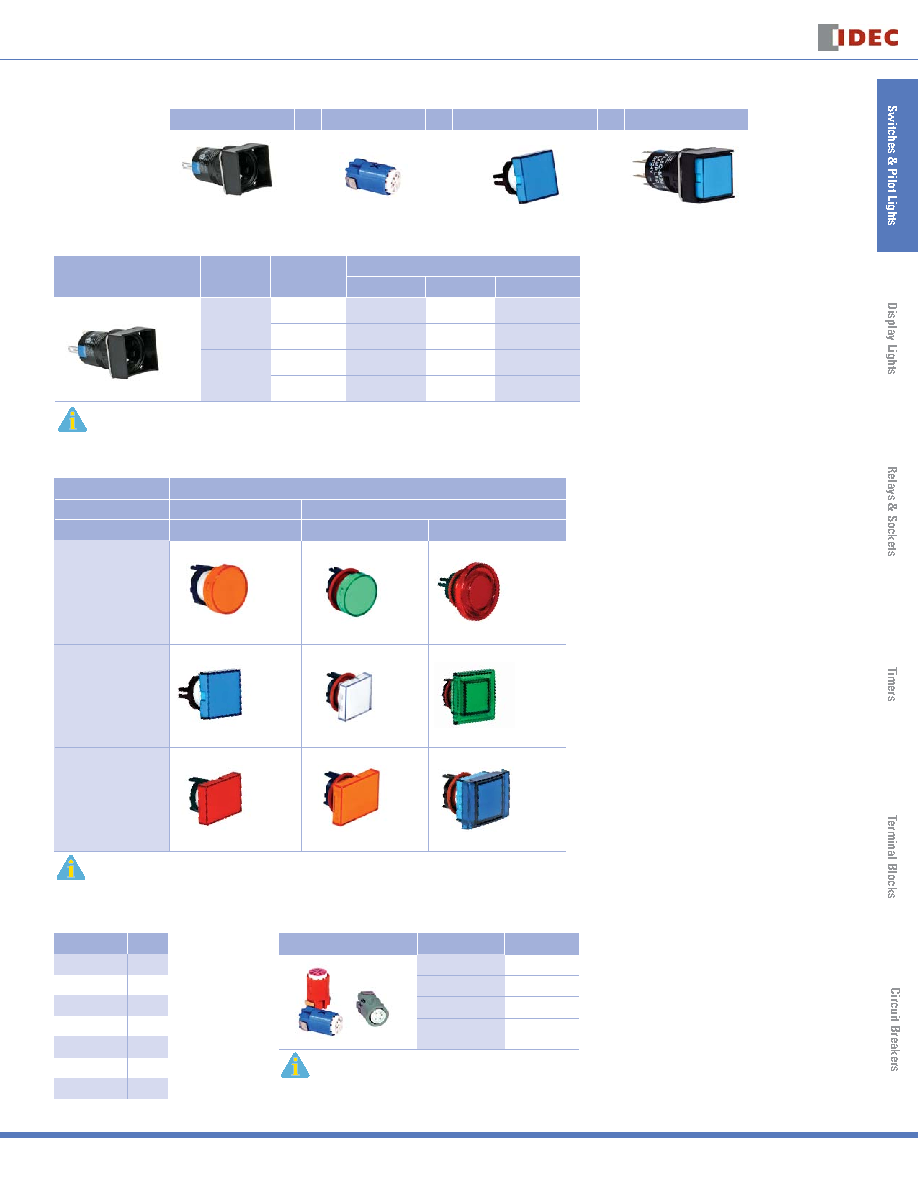

AL6 Illuminated Pushbuttons (Sub-Assembled)

Operator

LED Lamp

Lens

Completed Unit

Operators

Style

Contact

Operator

Part Number

Round

Square

Rectangular

AL6 Illuminated Pushbuttons

SPDT

Momentary

AL6M-M100

AL6Q-M100

AL6H-M100

Maintained

AL6M-A100

AL6Q-A100

AL6H-A100

DPDT

Momentary

AL6M-M200

AL6Q-M200

AL6H-M200

Maintained

AL6M-A200

AL6Q-A200

AL6H-A200

Oversize rectangular button uses square operator.

Lenses

Unit

Part Number

Degree of Protection

Dustproof (IP40)

Oiltight (IP65)

Size

Standard

Oversize

Round

AL6M-LK1-k

AL6M-LK2-k

AL6M-LK2-M k

Square

AL6Q-LK1-k

AL6Q-LK2-k

AL6Q-LK2-Q k

Rectangular

AL6H-LK1-k

AL6H-LK2-k

AL6Q-LK2-H k

1. In place of k, specify Lens Color Code from table below.

2. Lenses which are rated IP65 include a waterproof rubber gasket.

3. For accessories, see page 466.

kLens/LED Color Code

Color

Code

Amber

Green

Red

Blue

Warm White

Cool White

Yellow

LED Lamps

Appearance

Rated Voltage

Part Number

5V DC

LATD-5 k

6V AC/DC

LATD-6 k

12V AC/DC

LATD-1 k

24V AC/DC

LATD-2 k

1. In place of k, specify LED Color Code from table at left.

LED Lamps

Appearance

Rated Voltage

Part Number

5V DC

LATD-5 k

6V AC/DC

LATD-6 k

12V AC/DC

LATD-1 k

24V AC/DC

LATD-2 k

1. In place of k, specify LED Color Code from table at left.
