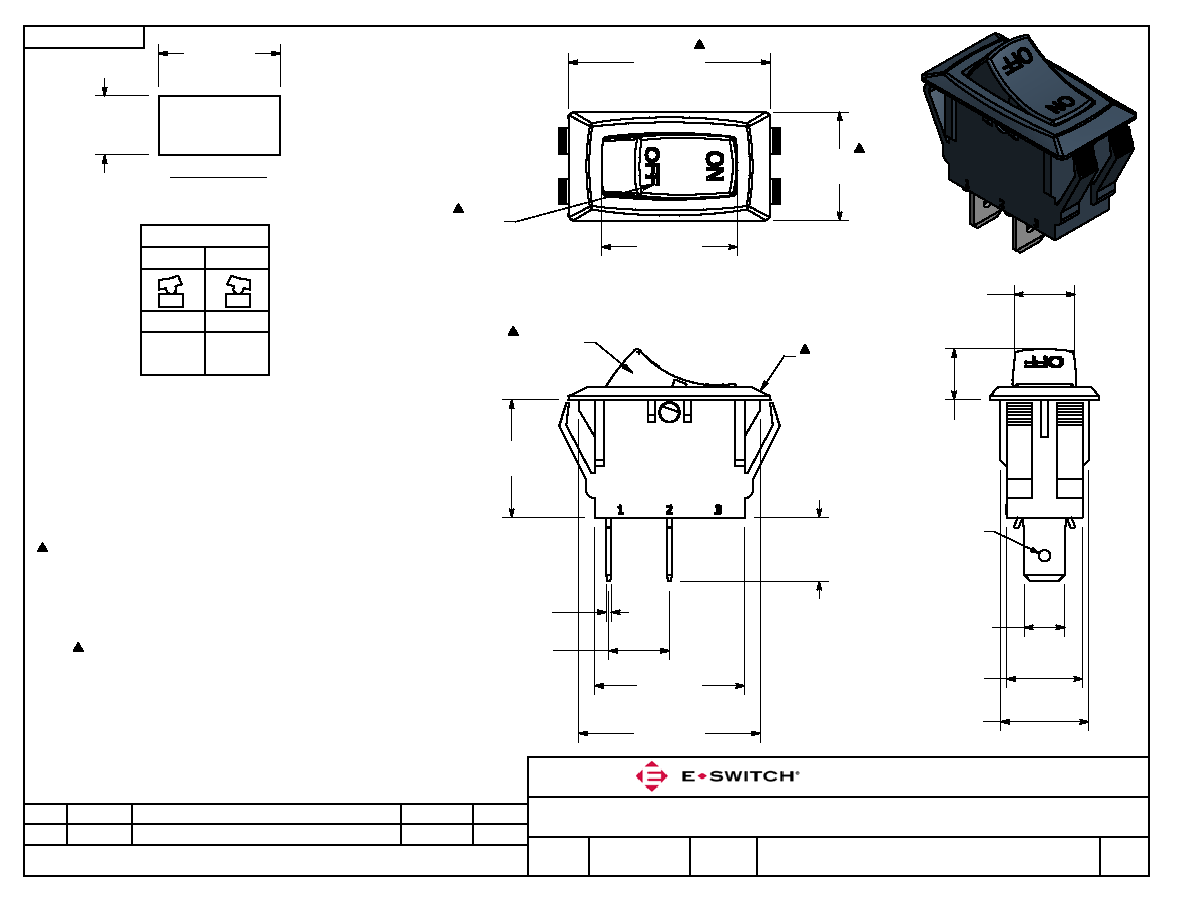

TITLE

SCALE

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SHEET

OF

REV

PCR NO

DESCRIPTION

DATE

BY

RSC141C1123

11/15/2013

38-RSC141C1123

A

EBP

1

1

PANEL CUT-OUT

A

21303

INITIAL RELEASE

11/15/13

EBP

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERM. NOS. FOR REF. ONLY

4. RATING: 15A @125VAC [cULus]

10(4)A @250VAC 1E4 T85 [ENEC]

5. ELECTRICAL LIFE: 10,000 CYCLES MIN.

6. CONTACT RESISTANCE: 20 mΩ MAX.

7. OPERATING TEMP: -20°C TO 85°C

8. DIELECTRIC STRENGTH: >1,000V AC 1MIN

9. INSULATION RESISTANCE: 100 MΩ @ 500VDC

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT.

POS. 1

POS. 2

SWITCH FUNCTION

OFF

ON

NONE

1-2

28.60

[1.126 in]

13.90

[.547 in]

18.50

[.728 in]

9.50

[.374 in]

17.00

[.669 in]

31.60

[1.244 in]

9.5

[.374 in]

28.40

[1.118 in]

23.50

[.925 in]

11.90

[.469 in]

BLACK

HOUSING

1

2

6.30

[.248 in]

13.80

[.543 in]

21.3

[.839 in]

8.0

[.31 in]

10.00

[.394 in]

n1.80

[.071 in]

BLACK

ACTUATOR

WHITE TEXT

.80

[.031 in]
