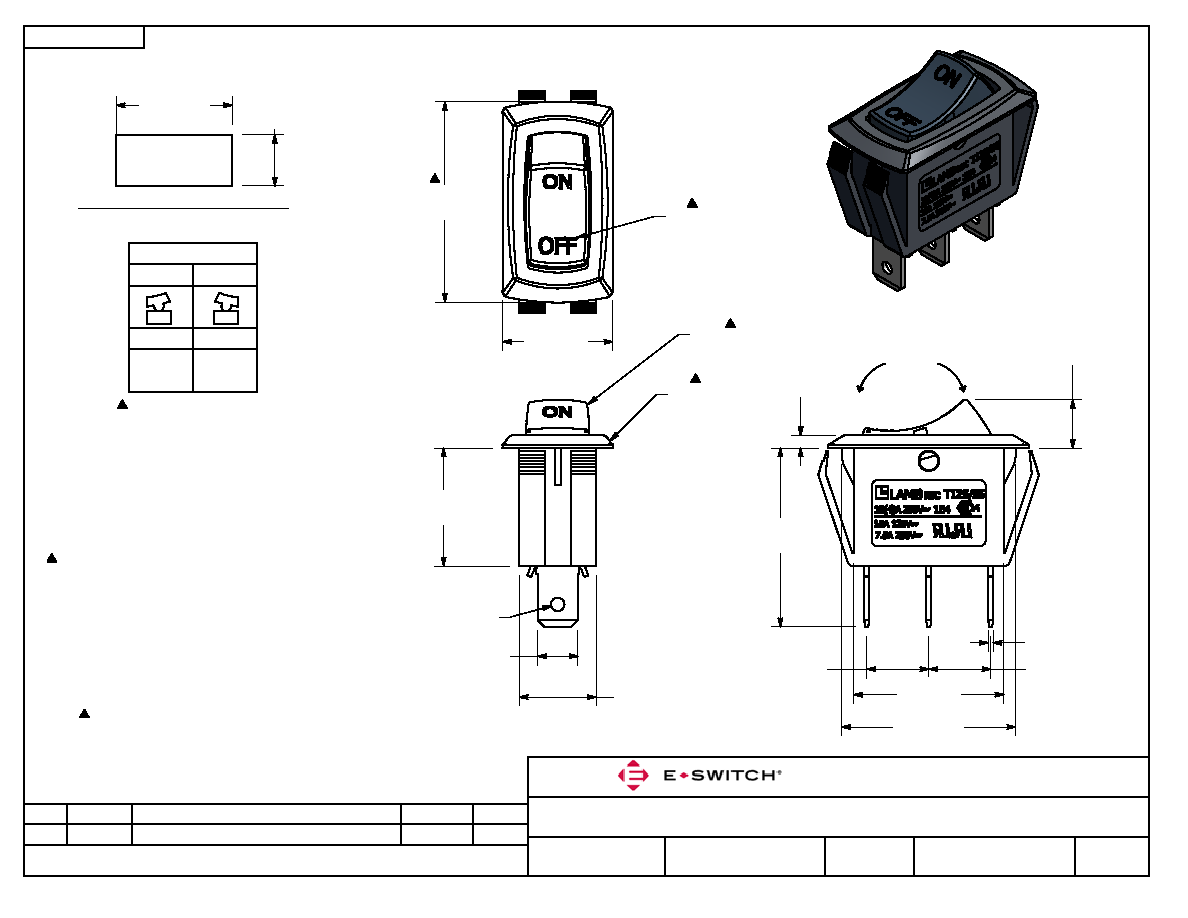

TITLE

SCALE

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SHEET

OF

REV

PCR NO

DESCRIPTION

DATE

BY

RSC293C1123

9/26/2013

38-RSC293C1123

A

EBP

1

1

1

2

3

1

A

21244

INITIAL RELEASE

9/26/13

EBP

31.50

[1.240 in]

17.20

[.677 in]

18.50

[.728 in]

[

]

2.00

[.079 in]

[

]

9.70

[.382 in]

12.00

[.472 in]

23.50

[.925 in]

27.20

[1.071 in]

27.20

[1.071 in]

12.10

[.476 in]

SUGGESTED PANEL CUTOUT

POS. 1

POS. 2

SWITCH FUNCTION

ON

ON

2-3

2-1

POS.

1

POS.

2

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERM. NOS. FOR REF. ONLY

4. RATING: 15A @ 125VAC T105 [cURus]

10(4)A @ 250V~ 1E4 T85/55 [ENEC10, VDE]

15A @ 125VAC [NOM]

5. MATERIAL:

CONTACT SURFACE: SILVER PLATED COPPER

CIRCUIT TERMINAL: BRASS ALLOY w/SILVER PLATE

6. ELECTRICAL LIFE: 10,000 CYCLES MIN.

7. CONTACT RESISTANCE: 20 mΩ MAX.

8. INSULATION RESISTANCE: 1,000 MΩ MIN. @ 500VDC

8. OPERATING TEMP: -20°C TO 85°C @ 1A 5VDC

9. DIELECTRIC STRENGTH: >1,000V AC 1MIN

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT.

BLACK

HOUSING

BLACK ACTUATOR

.80

[.031 in]

n2.10

[.083 in]

6.30

[.248 in]

9.70

[.382 in]

WHITE TEXT
