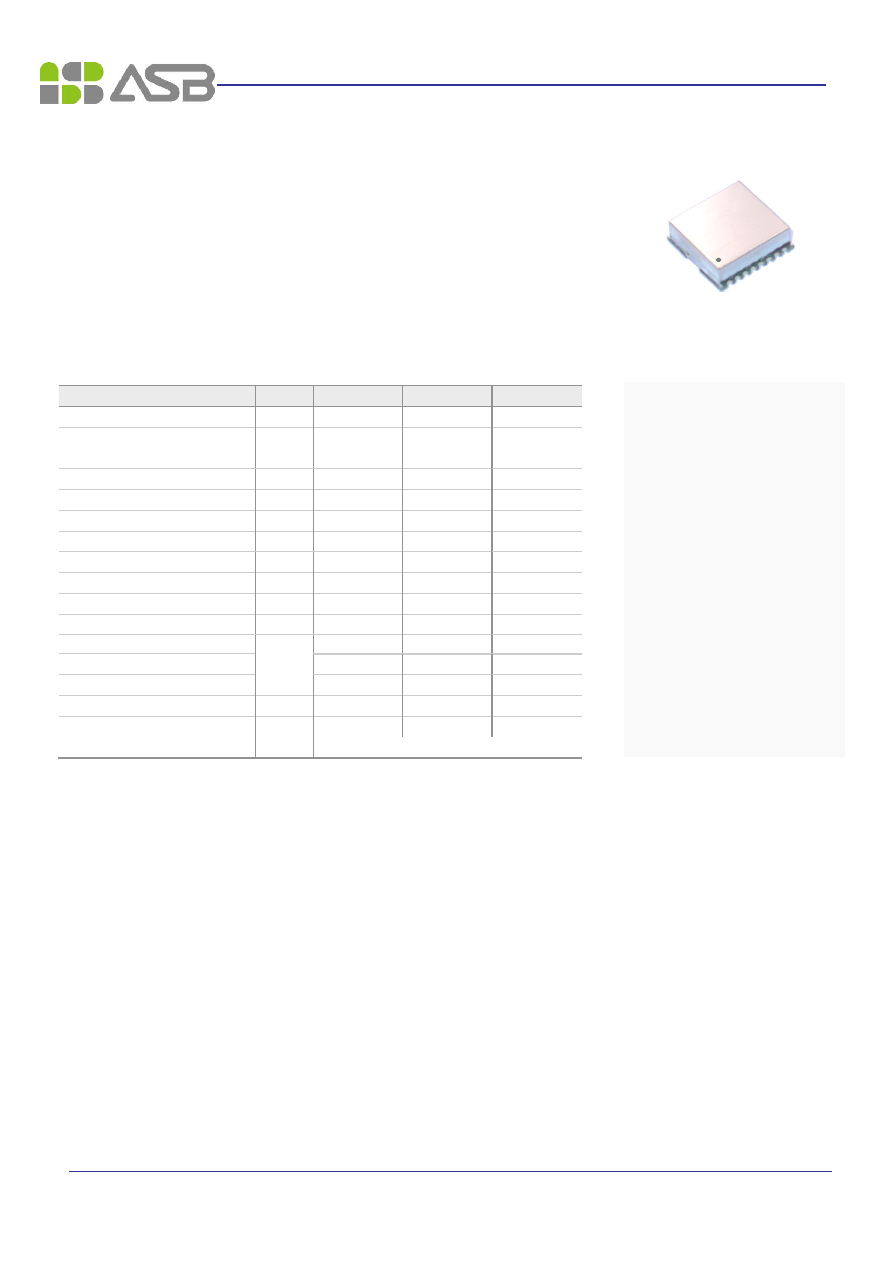

www.asb.co.kr

June 2010

plerowTM APL0953

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

938

968

Output Power

dBm

3

5

7

Supply Voltage

V

4.75

5

5.25

Current Consumption

mA

25

30

Channel Step Size

kHz

200

2nd Harmonics

dBc

-40

-30

Spurious Level

dBc

-70

-65

Lock Time

ms

10

Reference Frequency

MHz

10

Reference Input Level

dBm

0

Phase Noise (C / N)

@ 1 kHz

dBc/Hz

-79

-74

@ 10 kHz

-104

-99

@ 100 kHz

-122

-117

Output Impedance



50

Operating Temp. Range

C

-40

25

80

Package Type & Size

mm

SMT, 19.0W

19.0L5.8H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 953 MHz, 50 ohm system.

Features

Specifications

· 5 dBm Output Level at 953 MHz

· Channel Step Size : 200 kHz

· 2nd Harmonic : < -30 dBc

· Spurious Level : < -65 dBc

· Lock Time : < 10 ms

· Current Consumption : < 30 mA

Description

The plerowTM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB

’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7223

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea
