RFVC1839A

12.44GHz to 13.76GHz MMIC VCO with

Fo/2 and Fo/4 Outputs

RFMD's RFVC1839A is a 5V InGaP MMIC VCO with an integrated

frequency divider providing additional Fo/2 and Fo/4 outputs. With an Fo

frequency range of 12.44GHz to 13.76GHz its monolithic structure provides

excellent temperature, shock, and vibration performance. Output power

(Fo) is +8dBm and is flat across the tuning voltage range of 1.5V to 14.5V.

Max Phase noise is -108dBc/Hz at 100kHz offset. The device operates from

a low supply current of 270mA which can be further reduced to 210mA by

disabling the divider functions if not required. The RFVC1839A is available

in a low cost 5mm x 5mm surface mount plastic overmolded QFN outline.

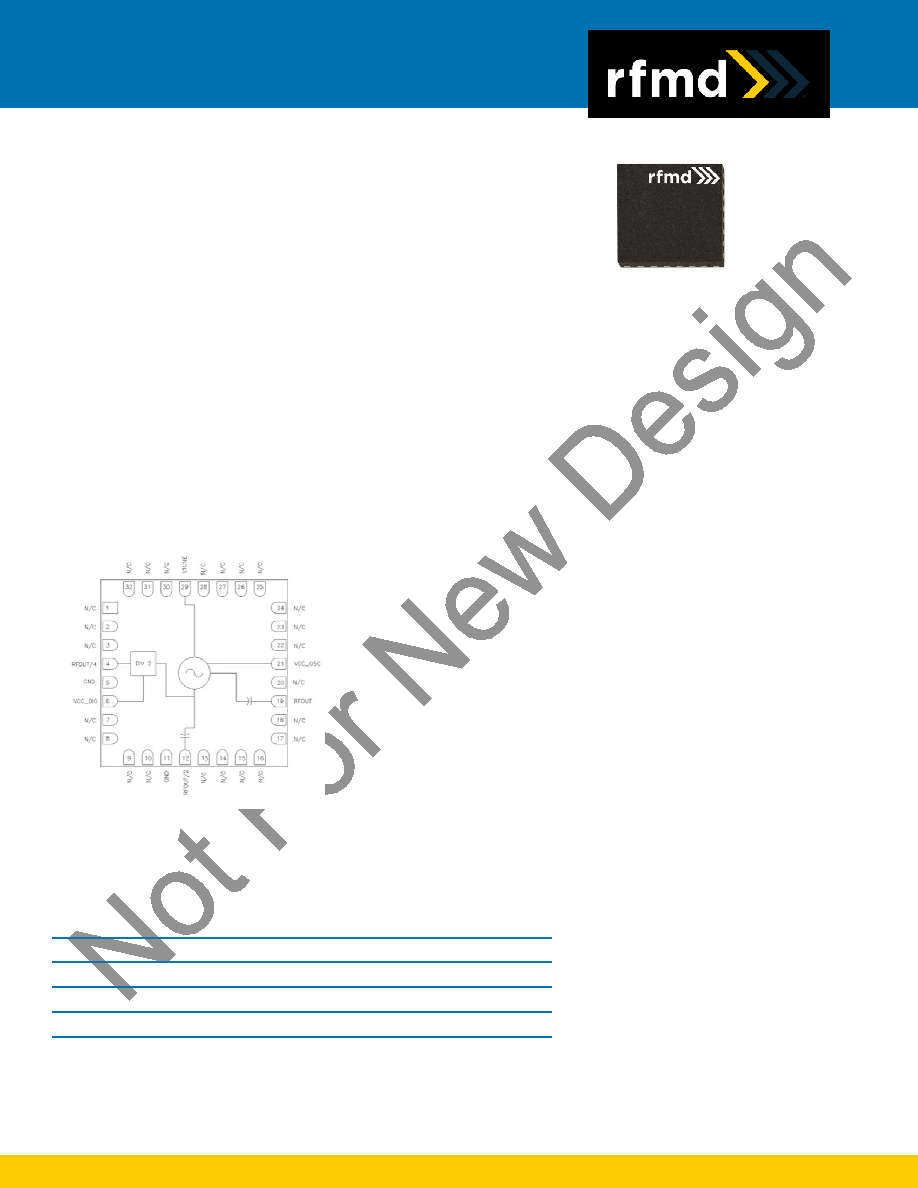

Functional Block Diagram

Ordering Information

RFVC1839AS2

Sample bag with 2 pieces

RFVC1839ASB

Sample bag with 5 pieces

RFVC1839ASQ

Bag with 25 pieces

RFVC1839ASR

Bag with 100 pieces

RFVC1839ATR7

7" Reel with 750 pieces

RFVC1839APCBA-410 Evaluation Board

Package: Plastic QFN, 32-pin,

5mm x 5mm x 0.85mm

Features

■

Multiple Frequency Outputs



Fo: 12.44GHz to 13.76GHz



Fo/2: 6.22GHz to 6.88GHz



Fo/4: 3.11GHz to 3.44GHz

■

No External Resonator Required

■

Integrated Frequency Divider

■

Phase Noise: -108dBc/Hz at

100kHz Offset

■

Flat Output Power Over Frequency

Tuning Range 1.5V to 14.5V



Fo: 8dBm



Fo/2: 8dBm



Fo/4: -2dBm

■

Low Power Consumption



5V/270mA (Divider On)



5V/210mA (Divider Off)

32-Lead 5mm x 5mm Plastic

Overmolded QFN

Applications

■

Point-to-Point Radio

■

Point-to-Multipoint Radio

■

Satellite Communications

■

Test Equipment

■

Military

■

Aerospace
