CONN007-R58 Datasheet(PDF) 1 Page - List of Unclassifed Manufacturers

Part # CONN007-R58
Description  N MALE CABLE END CRIMP FOR RG58 CABLE
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ETC2 [List of Unclassifed Manufacturers]
Direct Link
Logo ETC2 - List of Unclassifed Manufacturers

CONN007-R58 Datasheet(HTML) 1 Page - List of Unclassifed Manufacturers

  CONN007-R58 Datasheet HTML 1Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
A
B
C
D
4
3
2
1
D
C
B
A
1
2
4
3

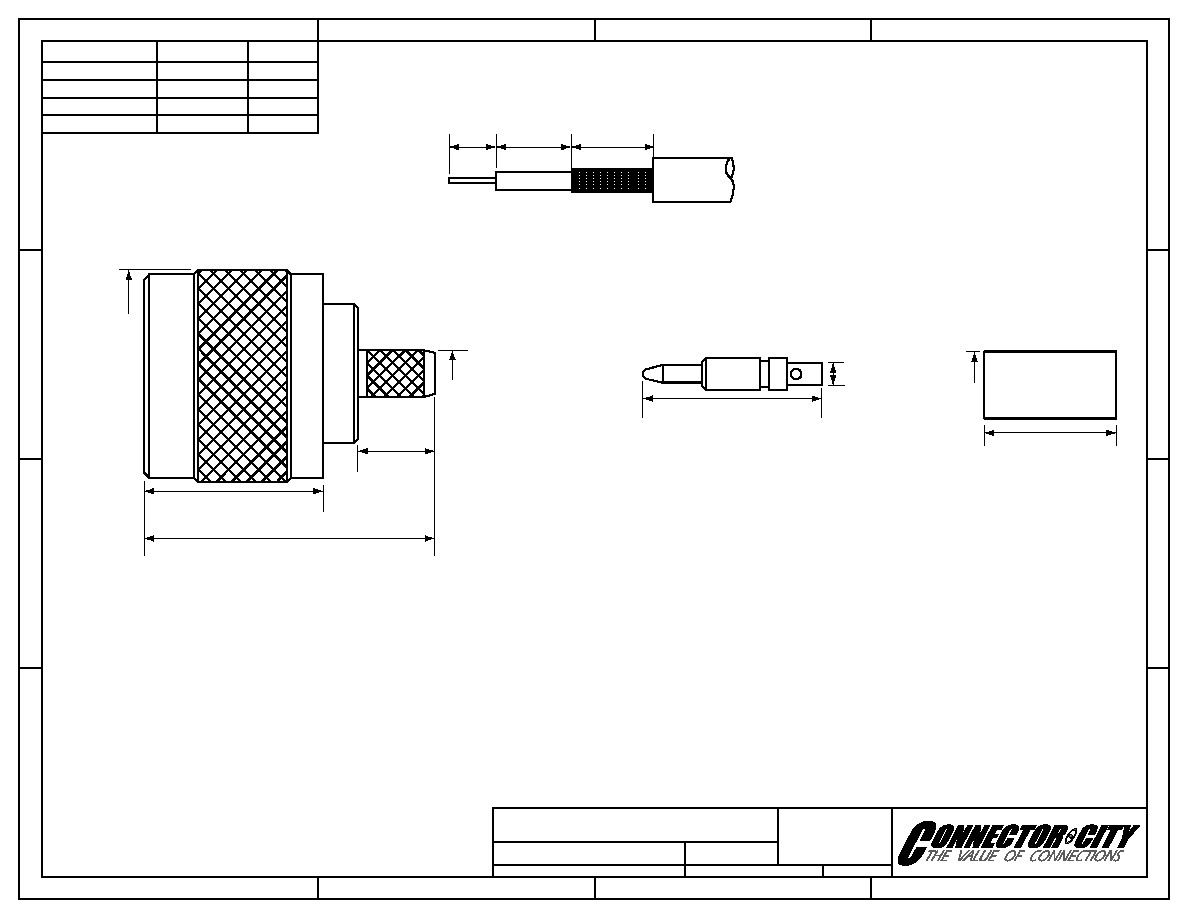

N MALE CABLE END CRIMP
FOR RG58 CABLE
0.276
(7.00)
0.094
(2.40)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.118
(3.00)
RG-58 Cable
Description
Material
Finish
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:
CONN007-R58
1.0
INCHES (mm)
2/20/2008
1.
Solder the socket to the center conductor.
2.
Insert the socket, center conductor, and insulator into the body.
3.
Wrap the braid around the tail of the body and crimp the ring with a
hex crimp tool labeled for use with RG-58 cable.
CONN007-R58 ASSEMBLY INSTRUCTIONS
Body
Nickel
Brass
Pin
Gold
Brass
Crimp Ring
Nickel
Brass
Insulation
N/A
Teflon
0.500
(12.70)
Ø0.256
(6.50)
CRIMP RING
0.689
(17.50)
∅0.083
(2.10)
PIN
5/8-24UNEF-2B THREADS
SIDE VIEW
∅0.803
(20.40)
0.287
(7.30)
0.661
(16.80)
∅0.177
(4.50)
1.106
(28.10)
