UNISONIC TECHNOLOGIES CO., LTD

DTC123J

NPN SILICON TRANSISTOR

www.unisonic.com.tw

1 of 4

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R206-076.I

NPN DIGITAL TRANSISTOR

(BUILT-IN RESISTORS)



FEATURES

* Built-in bias resistors enable the configuration of an inverter circuit

without connecting external input resistors (see equivalent circuit).

* The bias resistors consist of thin-film resistors with complete

isolation to allow negative biasing of the input. They also have the

advantage of almost completely eliminating parasitic effects.

* Only the on/off conditions need to be set for operation, making

device design easy.



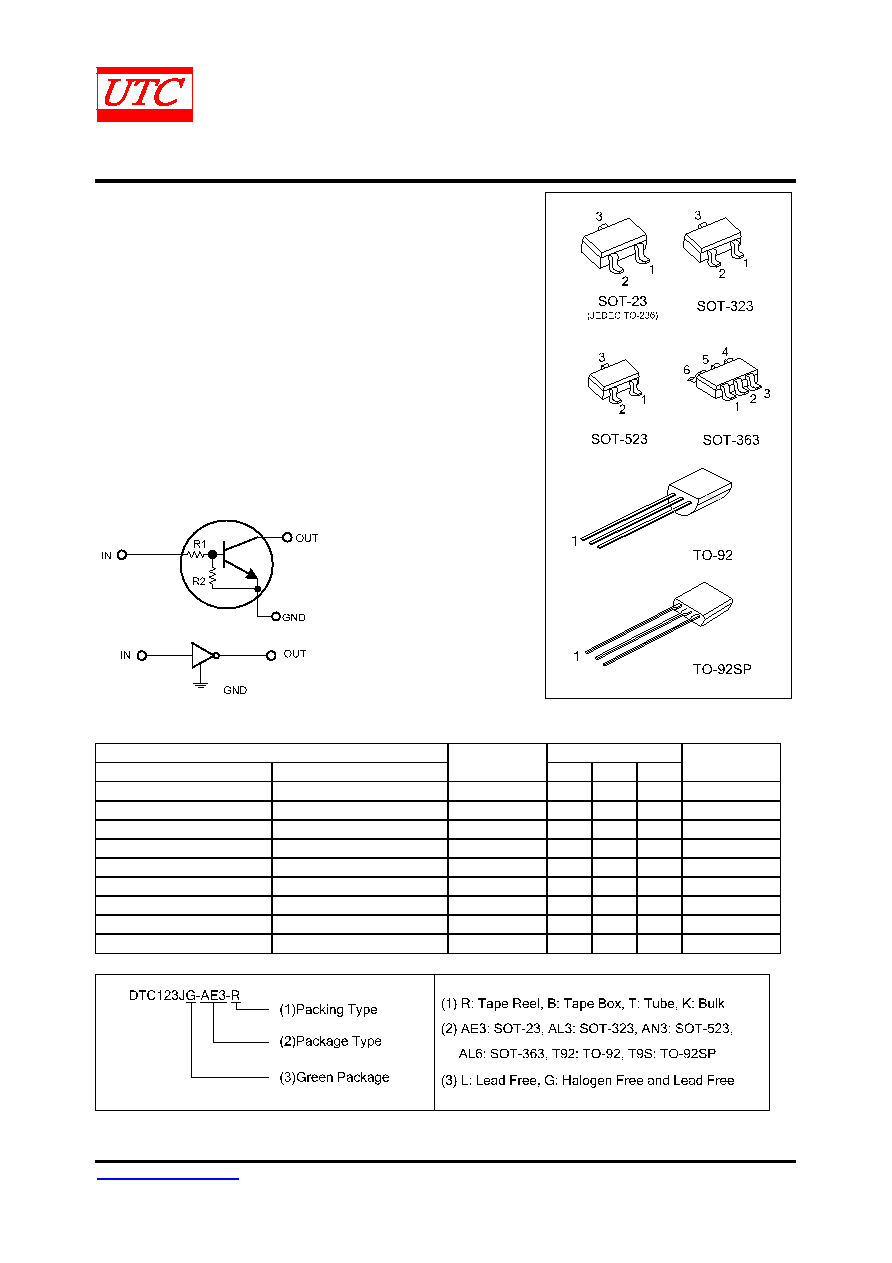

EQUIVALENT CIRCUIT



ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

3

Packing

-

DTC123JG-AE3-R

SOT-23

G

I

O

Tape Reel

-

DTC123JG-AL3-R

SOT-323

G

I

O

Tape Reel

-

DTC123JG-AN3-R

SOT-523

G

I

O

Tape Reel

-

DTC123JG-AL6-T

SOT-363

G

I

O

Tube

-

DTC123JG-AL6-R

SOT-363

G

I

O

Tape Reel

DTC123JL-T92-K

DTC123JG-T92-K

TO-92

G

O

I

Bulk

DTC123JL-T92-B

DTC123JG-T92-B

TO-92

G

O

I

Tape Box

DTC123JL-T9S-K

DTC123JG-T9S-K

TO-92SP

G

O

I

Bulk

DTC123JL-T9S-B

DTC123JG-T9S-B

TO-92SP

G

O

I

Tape Box

Note: Pin Assignment: G: GND

I: IN

O: OUT
