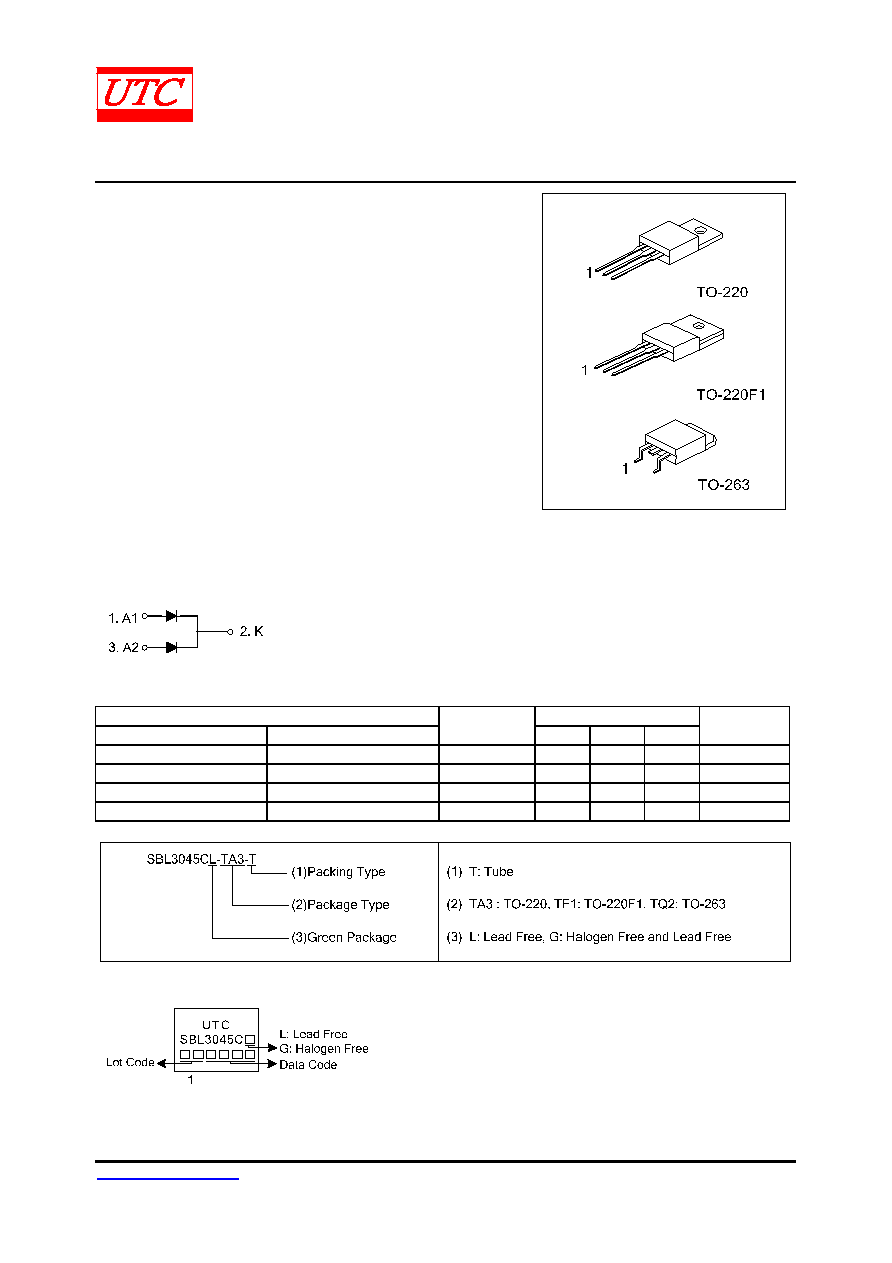

UNISONIC TECHNOLOGIES CO., LTD

SBL3045C

Preliminary

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R601-075.c

LOW DROP POWER SCHOTTKY

RECTIFIER



DESCRIPTION

The UTC SBL3045C is a dual center tap schottky rectifiers, it

uses UTC’s advanced technology to provide the customers with low

forward voltage, high switching speed and low thermal resistance,

etc.

The UTC SBL3045C is suitable for high frequency DC-DC

converter and switched mode power supplies, etc.



FEATURES

* High switching speed

* Low forward voltage drop

* Low thermal resistance



SYMBOL



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

SBL3045CL-TA3-T

SBL3045CG-TA3-T

TO-220

A1

K

A2

Tube

SBL3045CL-TF1-T

SBL3045CG-TF1-T

TO-220F1

A1

K

A2

Tube

SBL3045CL-TQ2-T

SBL3045CG-TQ2-T

TO-263

A1

K

A2

Tube

SBL3045CL-TQ2-R

SBL3045CG-TQ2-R

TO-263

A1

K

A2

Tape Reel

Note: Pin Assignment: A1: Anode

K: Cathode

A2: Anode



MARKING
