Overview

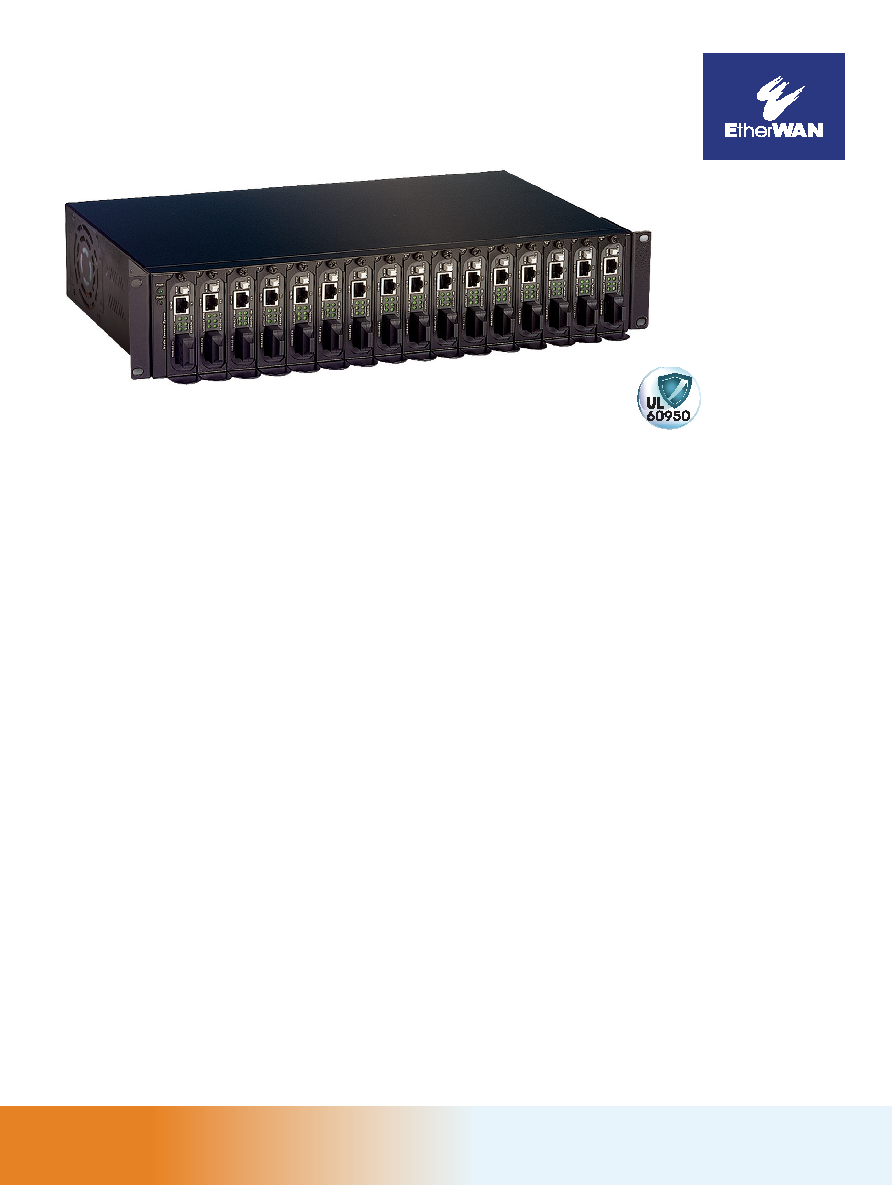

The EMC1600 is a 16-Bay chassis specifically designed to house and power selected EtherWAN Media Converters and Ethernet

Extenders in a 19” rack enclosure.

The hot swappable design enables easy installation, product additions, and deletions of EtherWAN Media Converters and Ethernet

Extenders without interrupting existing communications within the chassis. Each bay is electrically isolated from each other with fused

over-current protection resulting is unprecedented reliability. The redundant internal power supplies provide both power redundancy

and load sharing. Support for both AC & DC power input options allows the EMC1600 to be used worldwide. With its solid metal

enclosure, standard 19” rack-mount and two-unit height design, the EMC1600 is ideal for interconnecting disparate network media and

extending Ethernet beyond its boundaries.

EtherWAN — "When Connectivity is Crucial."

Spotlight

◦ The chassis system is capable of hot-swap installations of selected EtherWAN's media converter and Ethernet extender Model

◦ Powers up 16 media converters with redundant power supply modules

◦ Supported media converter models include EL2321, EL2211, EL2315, EM1100/EM2100, EM1000/EM2000, EM1000S/EM2000S,

EM1020, EM120, EL100/EL200 and EL110/EL210 series

◦ Supported Ethernet extender models include ED3101 and ED3331 Series, but the operating temperature is limited from 0°C to 45°C

EMC1600Series

16-BayMediaConverterandEthernetExtenderChassis
