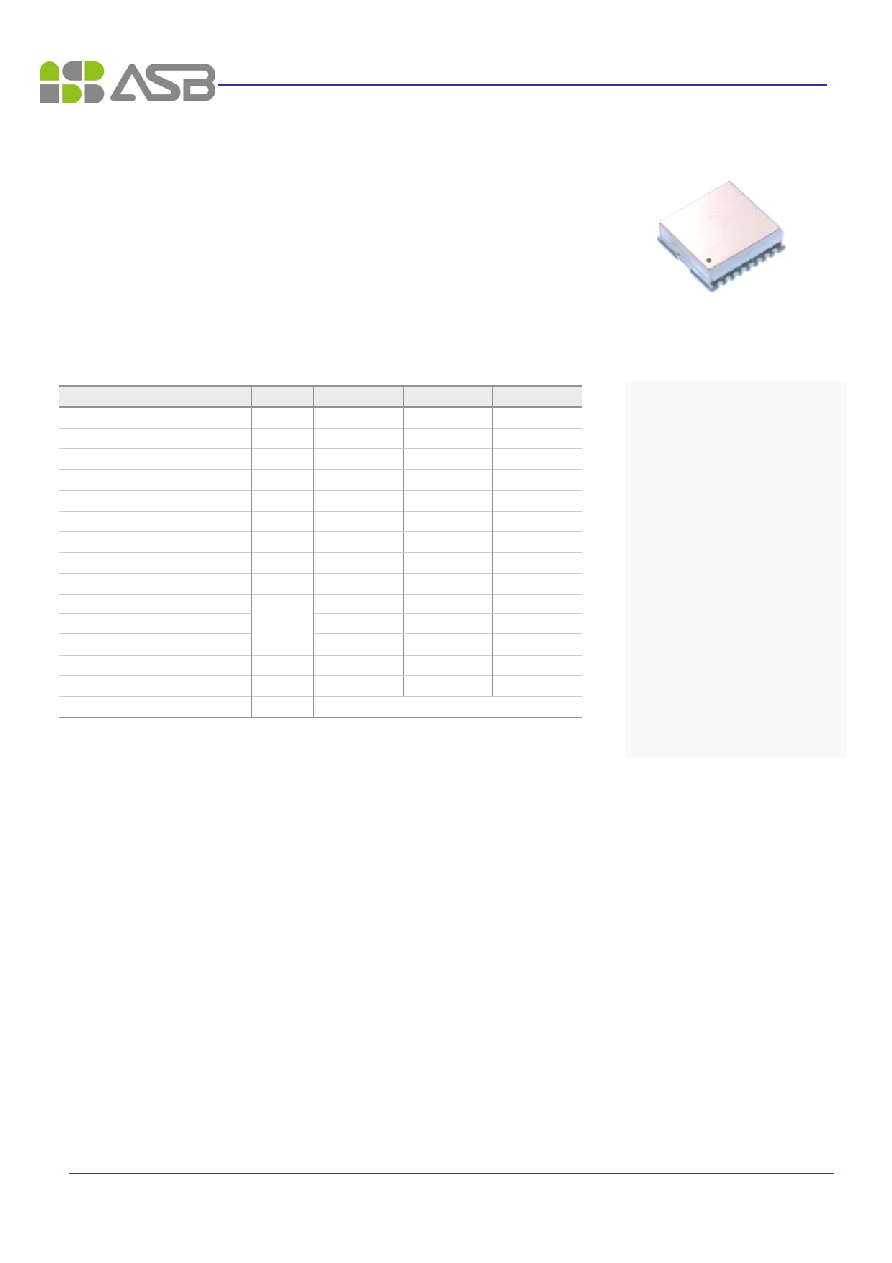

background image
1/2
www.asb.co.kr
June 2010
plerow™ APL0833-R/T
PLL Synthesizer Module
Parameter
Unit
Min.
Typical
Max.
Frequency Range
MHz
833
Output Power
dBm
3
4
6
Supply Voltage
V
4.8
5.0
5.2
Current Consumption
mA
25
40
2 Harmonics (Fundamental)
dBc
-25
-20
Spurious Level
dBc
-72
-65
Reference Frequency
MHz
-
Reference Input Level
dBm
0
2
5
Phase Noise (C / N)
@ 1 kHz
-84
-78
@ 10 kHz
-106
-100
@ 100 kHz
dBc/Hz
-120
-115
Output Impedance
50
Operating Temp. Range
C
-30
25
80
Package Type & Size
mm
SMT, 19.0W
19.0L5.8H
1) Measurement conditions are as follows: T = 25
C, V
CC = 5 V, Freq. = 832.5 MHz, 50 ohm system.
Features
Specifications
· 5dBm Output Level at 833 MHz
· Channel Step Size : 200kHz
· 2
nd Harmonic: < - 20dBc
· Spurious Level : < - 65dBc
· Current Consumption < 40 mA
Description
The plerow
TM PLL synthesizer module was
designed for use in wireless and wireline
systems in a wide range of frequency from
50 MHz to 6 GHz. ASB’s PLL provides ex-
ceptionally low spurious and phase noise
performance with fast locking time and low
current consumption. All products are avail-
able in a surface-mount type package.
More Information
Website: www.asb.co.kr
E-mail: sales@asb.co.kr
Tel: (82) 42-528-7220
Fax: (82) 42-528-7222
ASB Inc., 4th Fl. Venture Town
Bldg., 367-17 Goijeong-Dong,
Seo-Gu, Daejon 302-716, Korea
