TITLE

SCALE

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SHEET

OF

REV

PCR NO

DESCRIPTION

DATE

BY

RSC144D1100

3:2

6/10/2015

38-RSC144D1100

A

MW

1

1

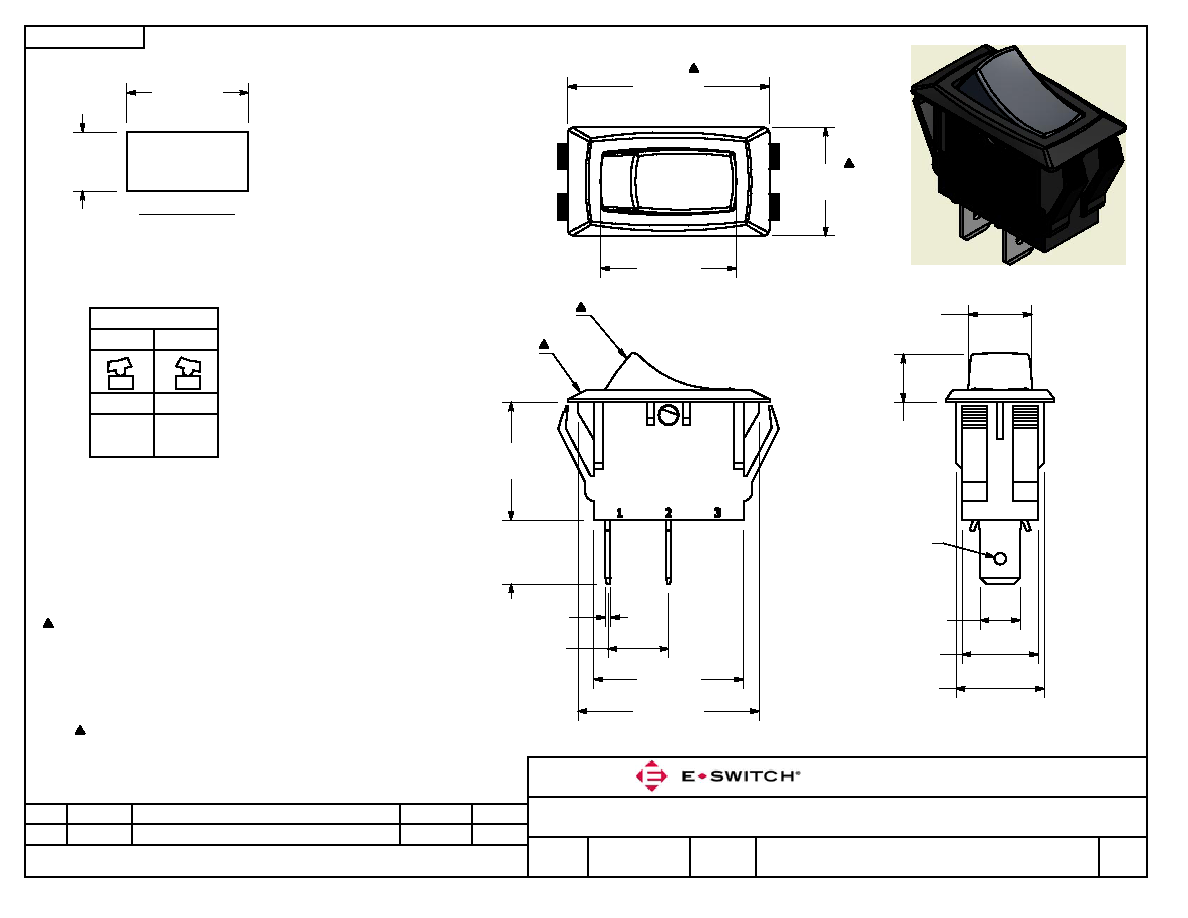

PANEL CUT-OUT

A

21872

CREATE REV. A DRAWING

6/10/15

MW

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X =

0.4

X.XX =

0.25

3. TERM. NOS. FOR REF. ONLY

4. RATING: 20A @ 125VAC [cULus]

16A @ 250VAC [cULus]

5. ELECTRICAL LIFE: 10,000 CYCLES MIN.

6. CONTACT RESISTANCE: 20 m

MAX.

7. OPERATING TEMP: -20 C TO 85 C

8. DIELECTRIC STRENGTH: >1,000V AC 1MIN

9. INSULATION RESISTANCE: 100 M

@ 500VDC

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT.

POS. 1

POS. 2

SWITCH FUNCTION

OFF

(ON)

NONE

1-2

(ON)=MOMENTARY

28.60

[1.126 in]

13.90

[.547 in]

18.5

[.728 in]

9.50

[.374 in]

17.0

[.669 in]

31.6

[1.244 in]

9.9

[.390 in]

28.40

[1.118 in]

23.50

[.925 in]

11.90

[.469 in]

HOUSING: BLACK

1

2

6.30

[.248 in]

13.80

[.543 in]

21.3

[.839 in]

7.5

[.30 in]

10.0

[.394 in]

1.80

[.071 in]

ACTUATOR: BLACK

.80

[.031 in]
