ISP817AXSMT-R Datasheet(PDF) 1 Page - ISOCOM COMPONENTS |
|
|
|||||||||||||||||||||||||||||
ISP817AXSMT-R Datasheet(HTML) 1 Page - ISOCOM COMPONENTS |
|
|

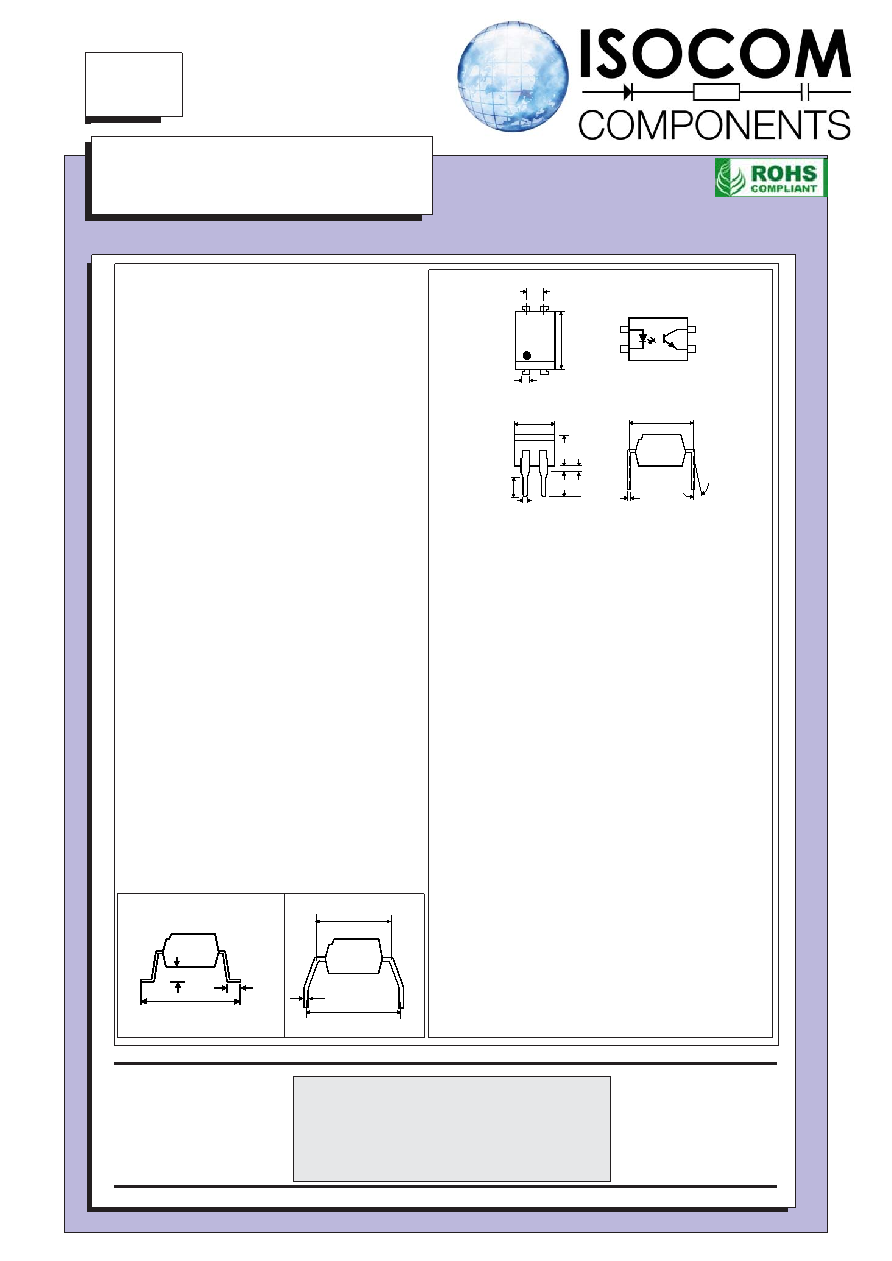

1 / 3 page  16/2/11 DB92275 1.2 3.0 4.0 3.0 3.35 7.0 6.0 0.5 0.5 7.62 1 2 4 3 0.26 13° Max 2.54 10.16 0.26 7.62 ISP817X ISP817 Dimensions in mm HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS APPROVALS UL recognised, File No. E91231 under Package System 'EE' 'X' SPECIFICATIONAPPROVALS VDE 0884 in 3 available lead form : - - STD - G form - SMD approved to CECC 00802 DESCRIPTION The ISP817 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages. FEATURES Options :- 10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. High Current Transfer Ratio (50% min) High Isolation Voltage (5.3kV RMS ,7.5kVPK ) High BV CEO ( 80Vmin ) All electrical parameters 100% tested Custom electrical selections available APPLICATIONS Computer terminals Industrial systems controllers Measuring instruments Signal transmission between systems of different potentials and impedances OPTION G OPTION G OPTION G OPTION G OPTION G 5.08 4.08 ISP817X, ISP817 SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT OPTION SM OPTION SM OPTION SM OPTION SM OPTION SM 10.46 9.86 0.6 0.1 1.25 0.75 ISOCOMCOMPONENTSLTD Unit 25B, Park View Road West, Park View Industrial Estate, Brenda Road Hartlepool, Cleveland, TS25 1UD Tel:(01429)863609 Fax:(01429)863581 |
