VCXO2HV 2/4

v1.0

Frequency range

40.0 ~ 130MHz

Dimensions

5.0 x 3.2 x 1.7mm

Supply voltage (V )

+3.3V (±5%)

Voltage control (V )

+1.65V ±1.65V

Positive slope, 10% linearity

Supply current (no load)

10mA max @ 40.0MHz

25mA max @ 130MHz

Driving ability

CMOS

Load

3pF min, 27pF max

Logic levels

‘0’ level = +0.4V max

‘1’ level = V -0.5V min

Start up time

5ms max

Waveform symmetry

40:60 max @ 50%V

Rise / fall times

2ns max (@15pF)

Shock resistance

5,000g, 0.3ms ½-sine

Vibration resistance

20g rms 10.0 ~ 2,000Hz

Soldering condition

260°C, 10 sec max

To request a quotation for the VCXO2HV please use the

configurable options form to choose the options you require

and then submit your configured product to our team. Our

expert advisers are always happy to help with your

requirements and can be contacted on +44 1460 256 100 or

at sales@golledge.com.

Once we've received your request our expert team will then

produce a quotation tailored to meet your needs using the

option codes you've selected.

Following product selection you will be issued with a seven

character Golledge part number. Your Golledge part number is

the internationally accepted Golledge manufacturing part

number (MPN) that should be used for all project

documentation, including bills of materials (BoMs) and

purchase orders.

If you have any queries regarding any of our documentation

our dedicated sales team will be happy to help.

Military & defence

SPECIFICATIONS

DD

CTL

DD

DD

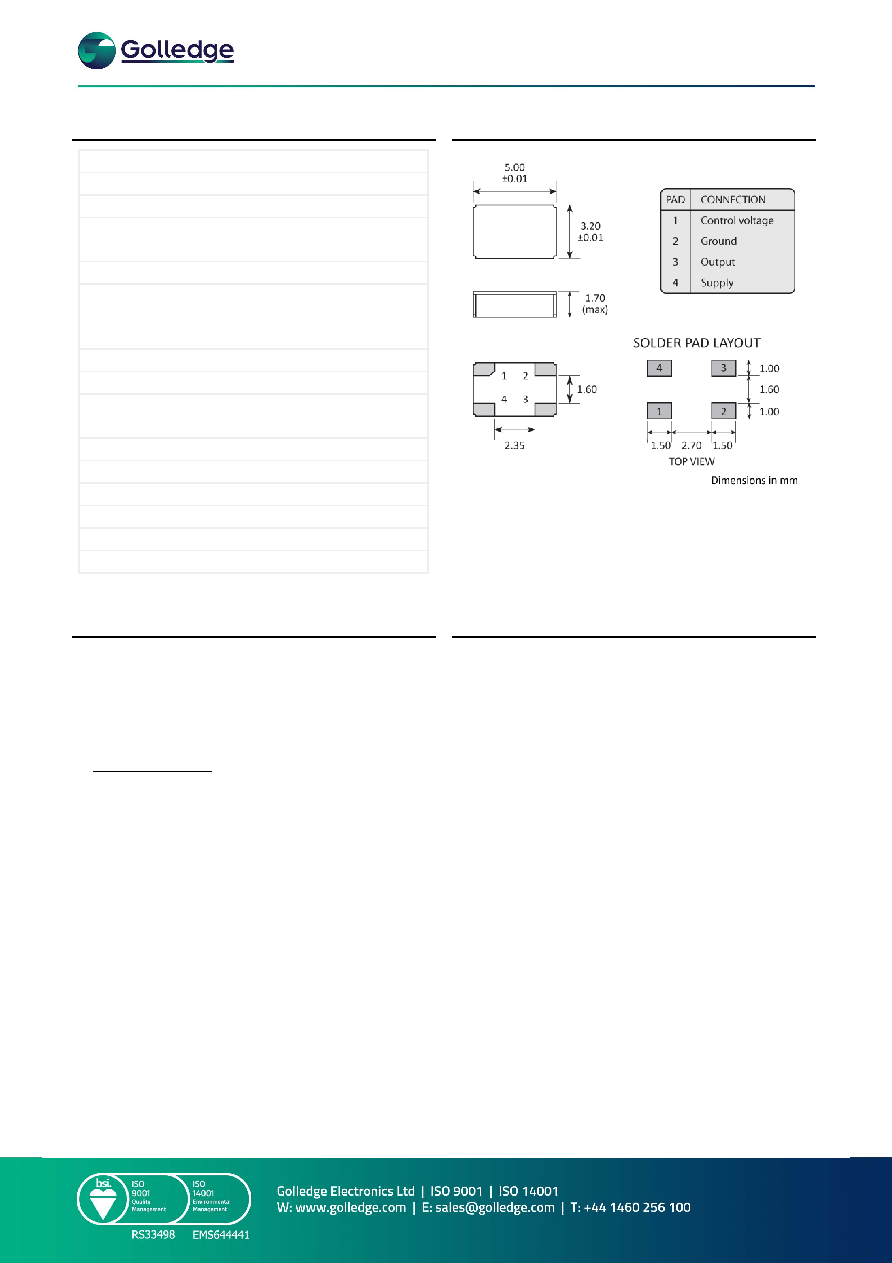

PACKAGE DRAWING

ORDERING INFORMATION

APPLICATIONS
