MODEL: LSMT4

LSMT4 SPECIFICATIONS

ES-1957 Rev.6 Page 5/5

https://www.m-system.co.jp/

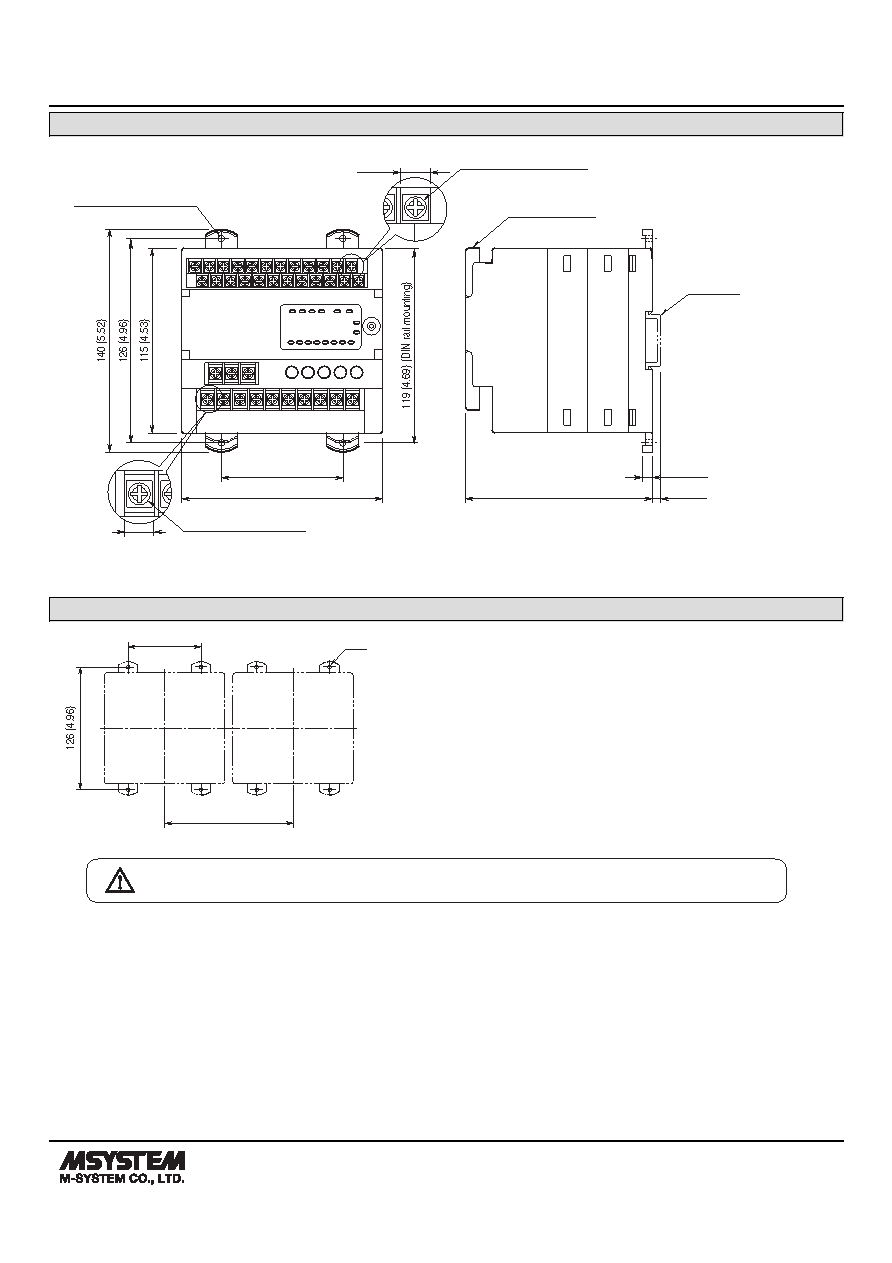

EXTERNAL DIMENSIONS unit: mm [inch]

7.2 (.28)

24–M3.5 TERMINAL SCREW

DIN RAIL

35mm wide

4–4.5 (.17) DIA. MTG HOLE

[3.3 (.13)]

6.5 (.26)

116 (4.57)

75 (2.95)

125 (4.92)

TERMINAL COVER

8.6 (.34)

13–M4 TERMINAL SCREW

MOUNTING REQUIREMENTS unit: mm [inch]

130 (5.12) min.

75 (2.95)

4-M4
