Data Sheet
ADRF5534
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 8 of 11
TRANSMIT OPERATION

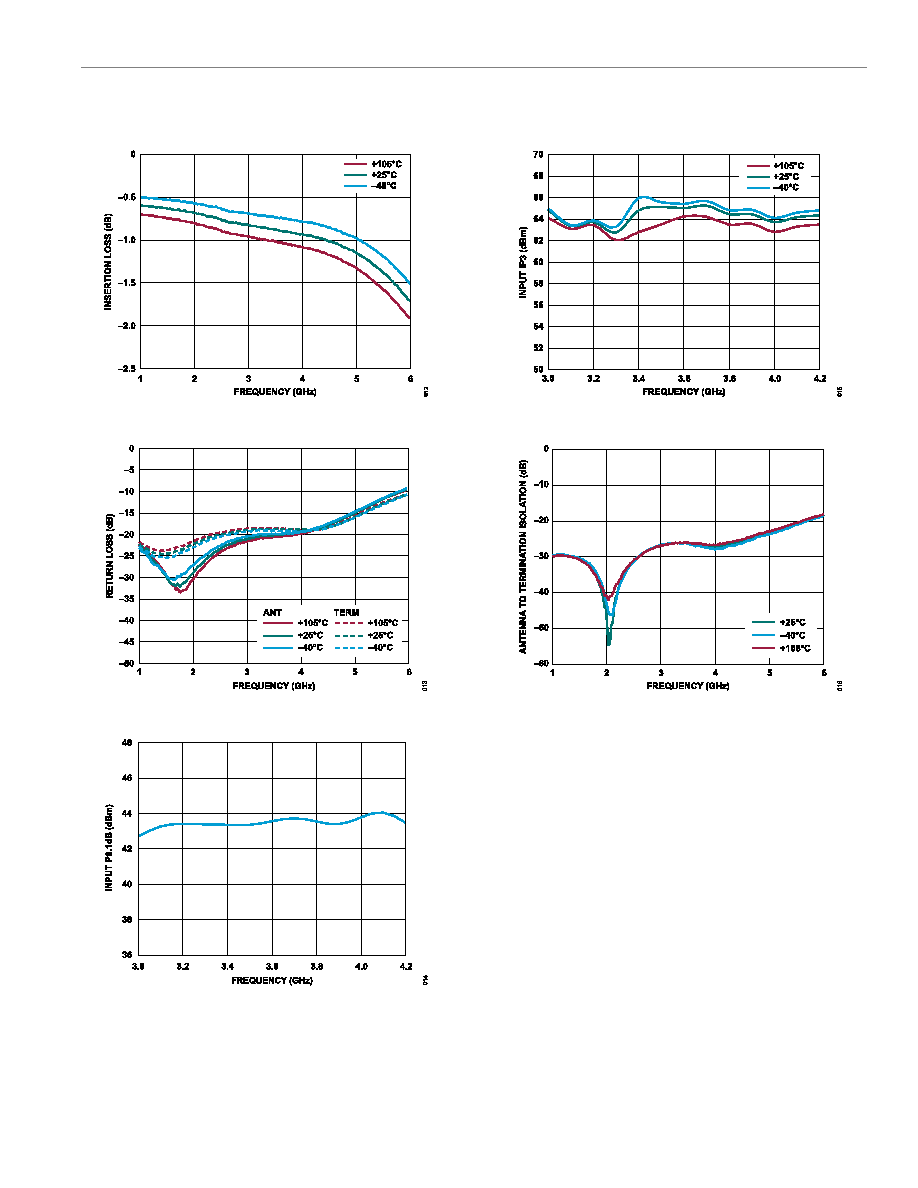

Figure 12. Insertion Loss vs. Frequency at Various Temperatures
Figure 13. Return Loss vs. Frequency
Figure 14. Input P0.1dB vs. Frequency
Figure 15. Input IP3 vs. Frequency
Figure 16. Antenna to Termination Isolation vs. Frequency, LNA On
