B65523-J-R87 Datasheet(PDF) 1 Page - EPCOS

Part # B65523-J-R87
Description  ER 9,5/5 Core
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  EPCOS [EPCOS]
Direct Link  http://www.epcos.com
Logo EPCOS - EPCOS

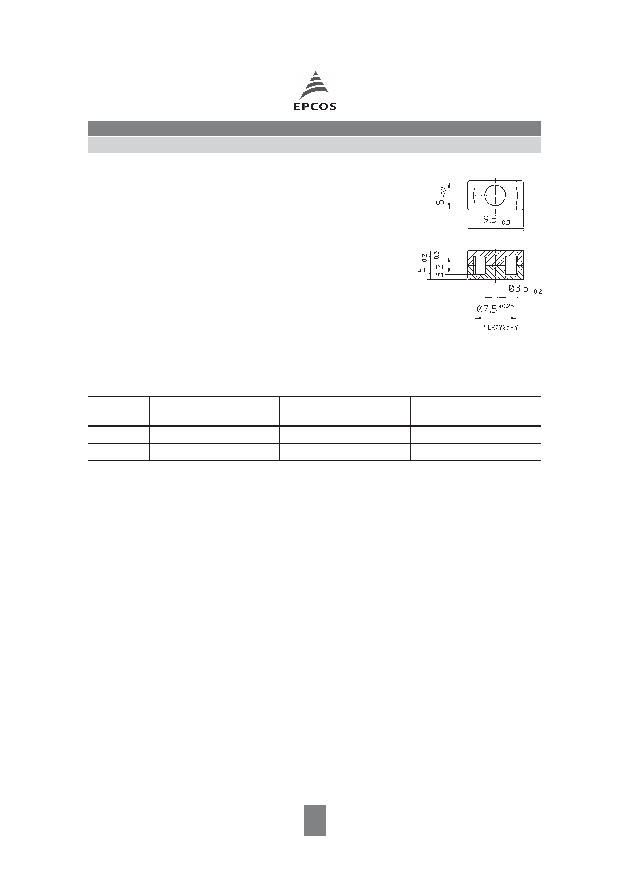

B65523-J-R87 Datasheet(HTML) 1 Page - EPCOS

  B65523-J-R87 Datasheet HTML 1Page - EPCOS B65523-J-R87 Datasheet HTML 2Page - EPCOS B65523-J-R87 Datasheet HTML 3Page - EPCOS
Zoom Inzoom in Zoom Outzoom out
 1 / 3 page
background image
464 08/01
I In accordance with IEC 61860
I For transformers featuring high inductance
and low overall height
I ER9,5 cores are supplied in sets
Magnetic characteristics (per set)
Σl/A = 1,54 mm–1
le
= 13,6 mm
Ae
= 8,81 mm2
Ve
= 120 mm3
Approx. weight 0,6 g/set
Ungapped
Material
AL value
nH
µe
Ordering code
T38
4500 + 40/– 30 %
5680
B65523-J-Y38
N87
800 + 30/– 20 %
1000
B65523-J-R87
B65523
ER 9,5/5 through ER 54/18/18
Core
ER 9,5/5
