HLMP-R100 Datasheet(PDF) 1 Page - Agilent(Hewlett-Packard) |
|
|
|||||||||||||||||||||||||||||
HLMP-R100 Datasheet(HTML) 1 Page - Agilent(Hewlett-Packard) |
|
|

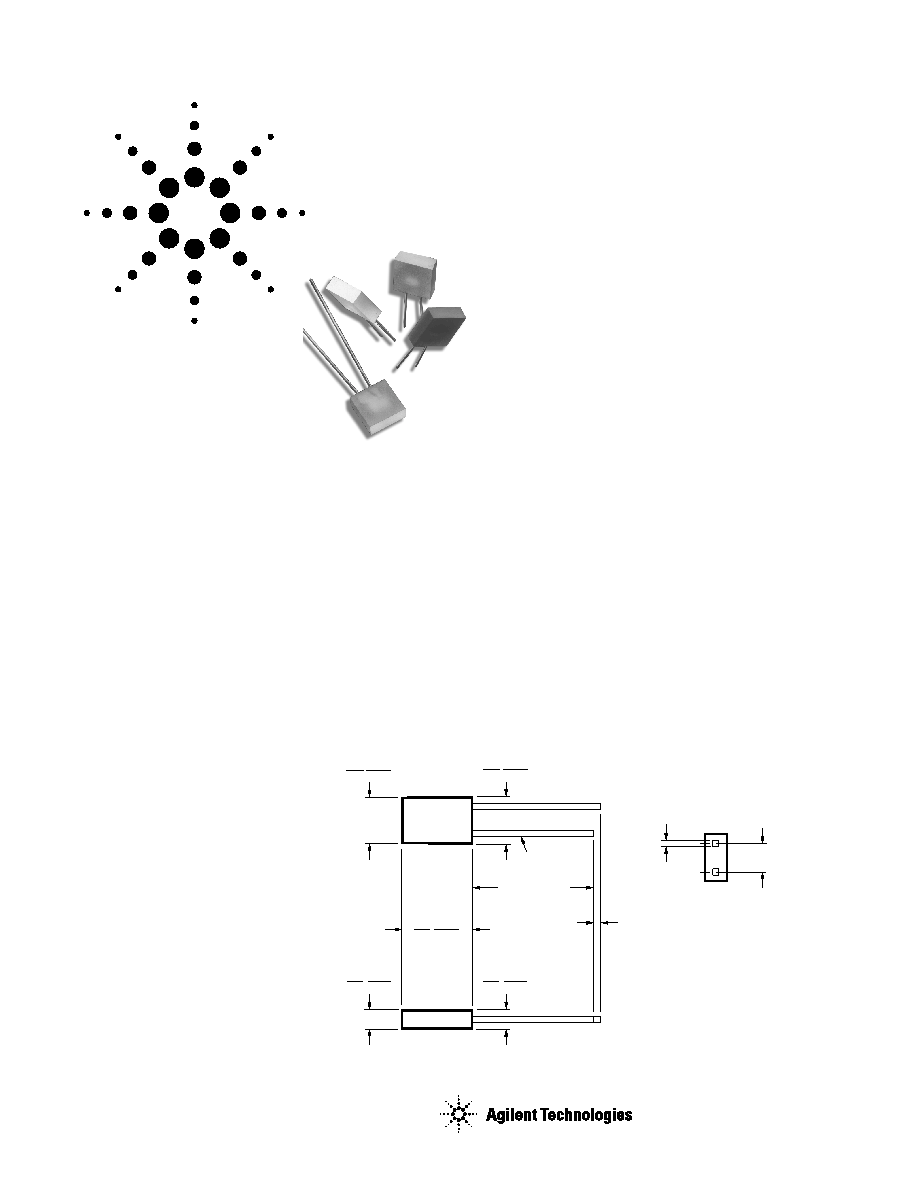

1 / 9 page  Agilent 2.5 mm x 7.6 mm Rectangular LED Lamps Data Sheet Description The HLMP-R100, -0301, -0401, -0504 are solid state lamps encapsulated in a radial lead rectangular epoxy package. They utilize a tinted, diffused epoxy to provide high on-off contrast and a flat high intensity emitting surface. Borderless package design allows creation of uninterrupted light emitting areas. The HLMP-R100 uses a double heterojunction (DH) absorbing substrate (AS) aluminum gallium arsenide (AlGaAs) red LED chip in a light red epoxy package. This combination produces outstanding light output over a wide range of drive currents. The HLMP-0301 has a high efficiency red GaAsP on GaP LED chip in a light red epoxy package. Package Dimensions HLMP-R100, HLMP-0301, HLMP-0401, HLMP-0504 Features • Rectangular light emitting surface • Flat high sterance emitting surface • Stackable on 2.54 mm (0.100 inch) centers • Ideal as flush mounted panel indicators • Ideal for backlighting legends • Long life: solid state reliability • Choice of 4 bright colors – DH AS AlGaAs Red – High Efficiency Red – Yellow – High Performance Green • IC compatible/low current requirements The HLMP-0401 provides a yellow GaAsP on GaP LED chip in a yellow epoxy package. The HLMP-0504 provides a green GaP LED chip in a green epoxy package. 2.54 (0.100) 2.29 (0.090) 2.54 (0.100) 2.16 (0.085) 8.00 (0.315) 7.37 (0.290) 29.21 (1.15) MIN. CATHODE LEAD BOTTOM VIEW SIDE VIEW 1.27 (0.50) NOMINAL NOTES: 1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES). 2. AN EPOXY MENISCUS MAY EXTEND ABOUT 1 mm (0.040") DOWN THE LEADS. 3. THERE IS A MXIMUM 1 ° TAPER FROM BASE TO THE TOP OF LAMP. 2.54 (0.100) NOMINAL 0.46 (0.018) SQ. NOMINAL 7.62 (0.300) 7.11 (0.280) 7.62 (0.300) 6.99 (0.275) |
