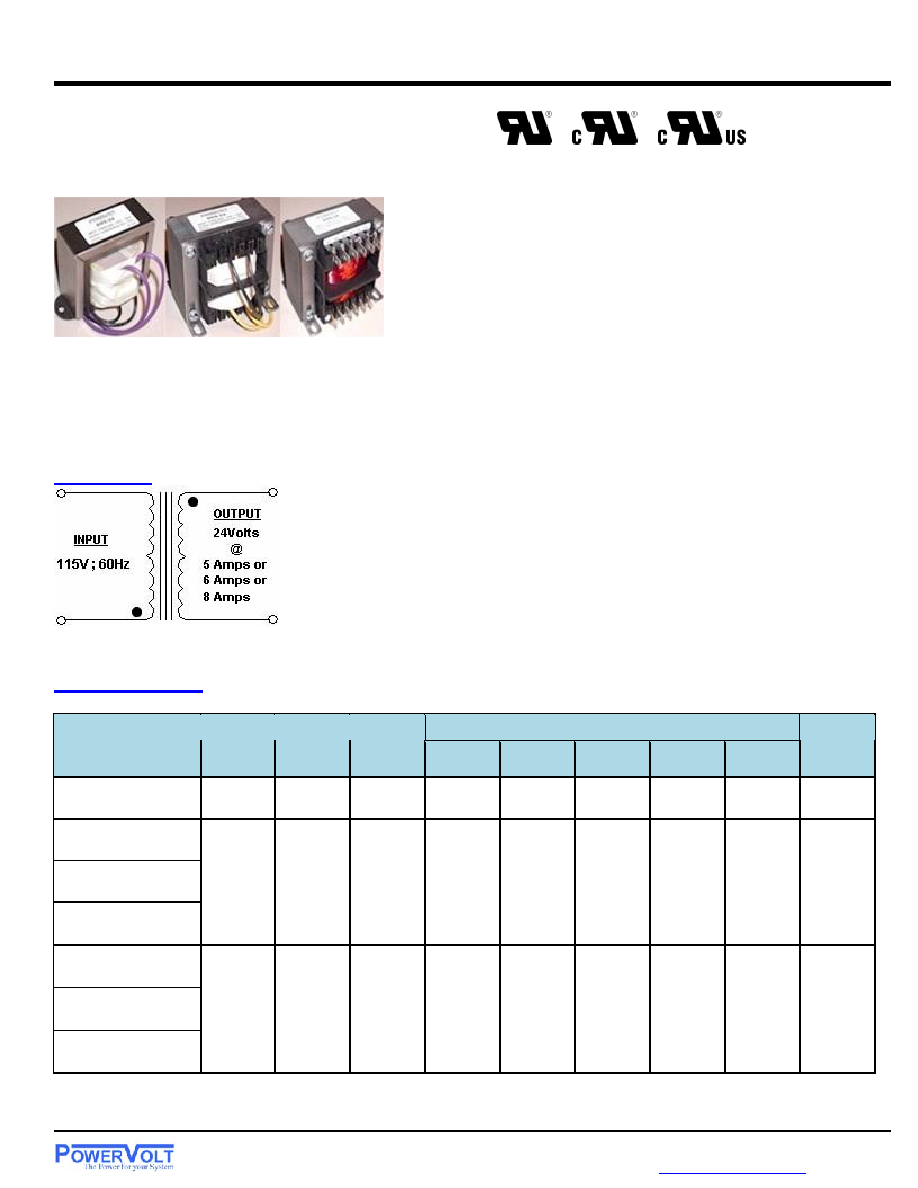

Slot Machine Transformers

Series: SM

•

Especially designed for Pachislo, Pachinko and domestic slot-

machines

•

5Amp, 6Amp and 8Amp models

•

Thermal cut-out protects from short-circuit or overload

- Auto-resetable thermal cut-out (RTCO)

•

UL, CSA and CE pending

Transformer is the "heart" of your game. It must provide enough power for the machine to operate with bright lights

and good quality sounds. Under normal operation, transformer should never over heat. The conservative design of

our series SM transformers assures you of best performance.

Schematics

In case of abnormal operation such as overload or short circuit in the game,

the models fitted with thermal cut-out will protect against any damage.

With one-shot cut-out, the transformer must be replaced, after it trips.

However, the resetable cut-out will reset automatically after the

transformer cools down and the game is ready to play again within a few

minutes.

Designed and manufactured in Illinois/USA, we have complete control on

quality and on-time delivery.

Standard Models

DIMENSIONS

Part Number

Input

Volts

Output

Volts

Current

Amps

L

W

H

ML

MW

WGT

Lbs

SM 5-24

115

24

5

4.031"

2.25"

2.563"

3.563"

-

2.75

SM 6-24

SM 6-24-TC

SM 6-24-RTC

115

24

6

2.81"

2.87"

3.37"

2.25"

2.50"

4.1

SM 8-24

SM 8-24-TC

SM 8-24-RTC

115

24

8

3.12"

2.87"

3.75"

2.50"

2.50"

5.5

TC: One-shot thermal cut-out;

RTC: Auto-resetable thermal cut-out.

300 Factory Road, Addison IL 60101

Phone: (630) 628-9999 Fax: (630) 628-9922 WWW.POWERVOLT.COM
