131

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Revision B4: May 2012

TH Series

For Additional Information, please visit

us.tdk-lambda.com/lp/products/th-series.htm

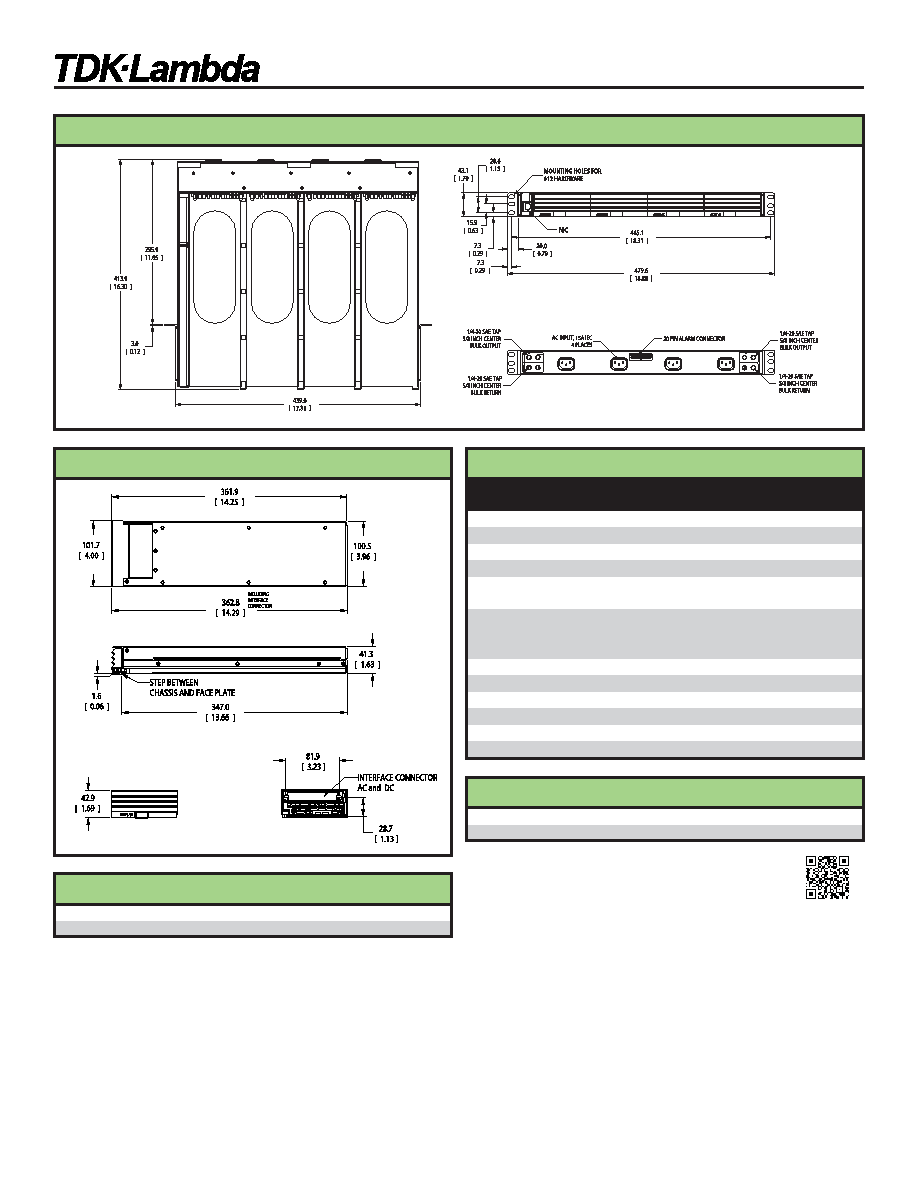

THR4 Rack Outline Drawing

TH Module Outline Drawing

PX, CC-E, PAQ, PAH, PAF

DC-DC Converters

FPS1000

1U 1kW to 3kW Low Cost Front End

Mating Housing

Molex MicroFit 43025-2000

Mating Terminal

Molex MicroFit 43030-0002

Other Industrial Products

Alarm Connector

Output

Maximum

Model

Voltage

Current

Power

TH120012(5)

12V

100A

1200W

TH120024

24V

50A

1250W

TH120048

48V

25A

1250W

TH250048(5)

48V

50A

2500W

THR4

19” Rack holds up to 4 TH Modules;

200A maximum output current.

THR400

19” Rack holds up to 4 TH modules;

400A maximum output current. Screw

terminal input connection.

THRBP

Blanking panel for one module slot.

THR4NIC

Network interface card for 48V systems.

THR4NIC12

Network interface card for 12V systems.

THR4NIC24

Network interface card for 24V systems.

TLCK232

RS232 Communications kit.

TLRC01

Signal cable

Models
