SANGDEST

MICROELECTRONICS

Technical Data

Green Products

Data Sheet N0177, Rev. A

• Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113

(86) 25-87123907

•

• FAX (86) 25-87123900 • World Wide Web Site - http://www.sangdest.com.cn • E-Mail Address - sales@ sangdest.com.cn •

MBRF3060CT

MBRF3060CT SCHOTTKY RECTIFIER

Applications:

•

Switching power supply

•

Converters

•

Free-Wheeling diodes

•

Reverse battery protection

•

Center tap configuration

Features:

•

•

Center tap configuration

•

Low forward voltage drop

•

High purity, high temperature epoxy encapsulation for enhanced

mechanical strength and moisture resistance

•

High frequency operation

•

Guard ring for enhanced ruggedness and long term reliability

•

This is a Pb − Free Device

•

All SMC parts are traceable to the wafer lot

•

Additional testing can be offered upon request

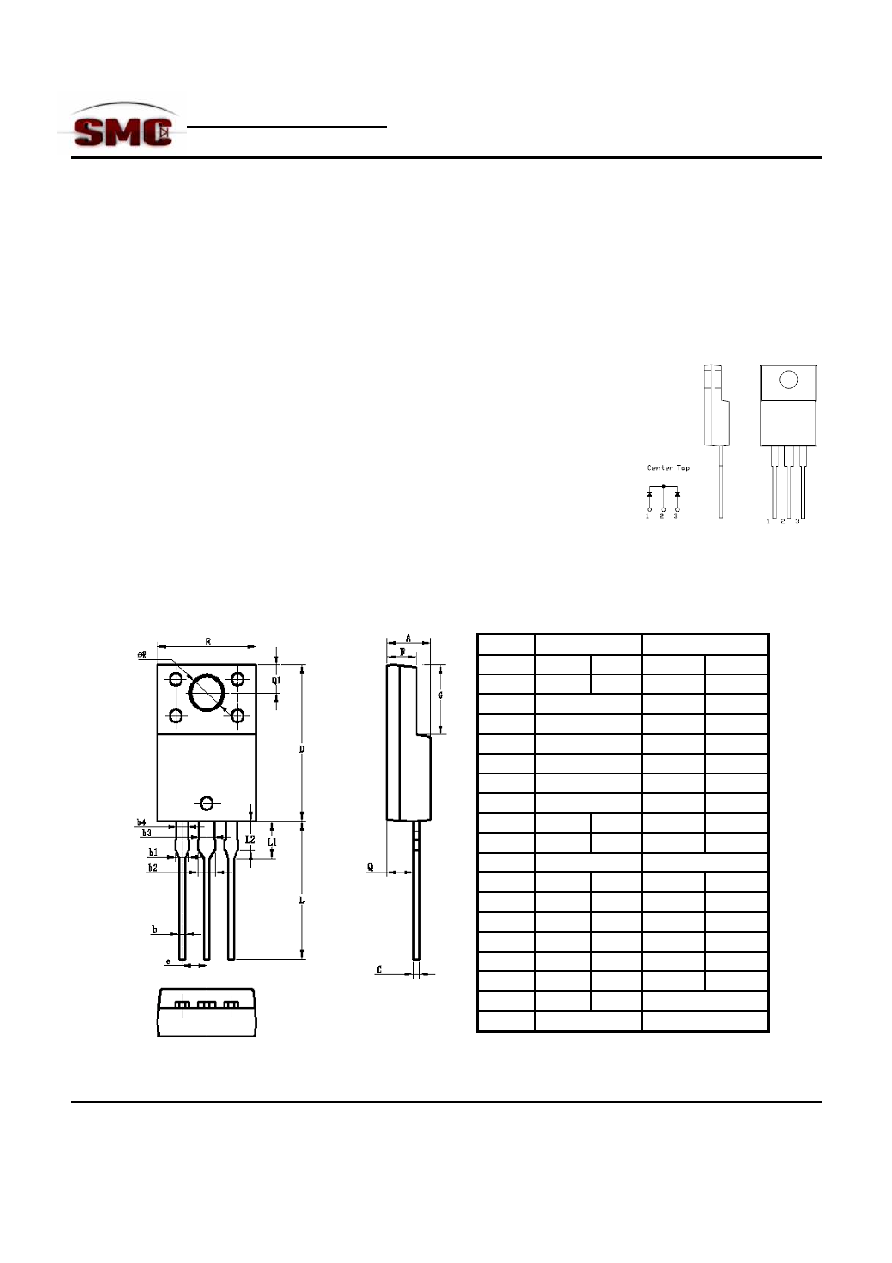

OUTLINE DRAWING

Mechanical Dimensions: In Inches / mm

OPTION 1(CJ)

OPTION 2(HD)

Dim

Min

Max

Min

Max

A

4.4

4.6

4.30

4.70

b

0.6TYP

0.50

0.75

b1

1.3TYP

1.30

1.40

b2

1.7TYP

1.70

1.80

b3

1.6TYP

1.50

1.75

b4

1.2TYP

1.10

1.35

C

0.60TYP

0.50

0.75

D

14.8

15.1

14.80

15.20

E

10.06

10.26

9.96

10.36

e

2.55TYP

2.54TYP

F

2.9

3.1

2.80

3.20

G

6.5

6.9

6.50

6.90

L

12.7

13.7

12.8

13.2

L1

3.4

3.8

3.60

4.00

L2

2.6

3.0

-

-

Q

2.5

2.9

2.50

2.90

Q1

2.5

2.9

2.70REF

ØR

3.5REF

3.50REF
