DATA SHEET

SEMICONDUCTOR

http://www.yeashin.com

1

REV.03 20140320

YSDAxx11CDN

H

APPLICATIONS

◆ Cell Phone Handsets and Accessories

◆ Microprocessor based equipment

◆ Personal Digital Assistants (PDA’s)

◆ Notebooks, Desktops, and Servers

◆ Portable Instrumentation

◆ Peripherals

◆ Pagers

IEC COMPATIBILITY

◆ IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact) : 3.3V ~ 15V

◆ IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) : 18V ~ 36V

◆ IEC61000-4-4 (EFT) 40A (5/50ηs)

FEATURES

◆ 200 Watts Peak Pulse Power per Line (tp=8/20µs)

◆ Protects One Bidirectional I/O Line

◆ Low clamping voltage

◆ Working voltages : 3.3V ~ 36V

◆ Low leakage current

MECHANICAL CHARACTERISTICS

◆ DFN1006DN (1.0x0.6x0.5mm) Package

◆ Molding Compound Flammability Rating : UL 94V-O

◆ Weight 0.5 Millgrams (Approximate)

◆ Quantity Per Reel : 10,000pcs

◆ Reel Size : 7 inch

◆ Lead Finish : Lead Free

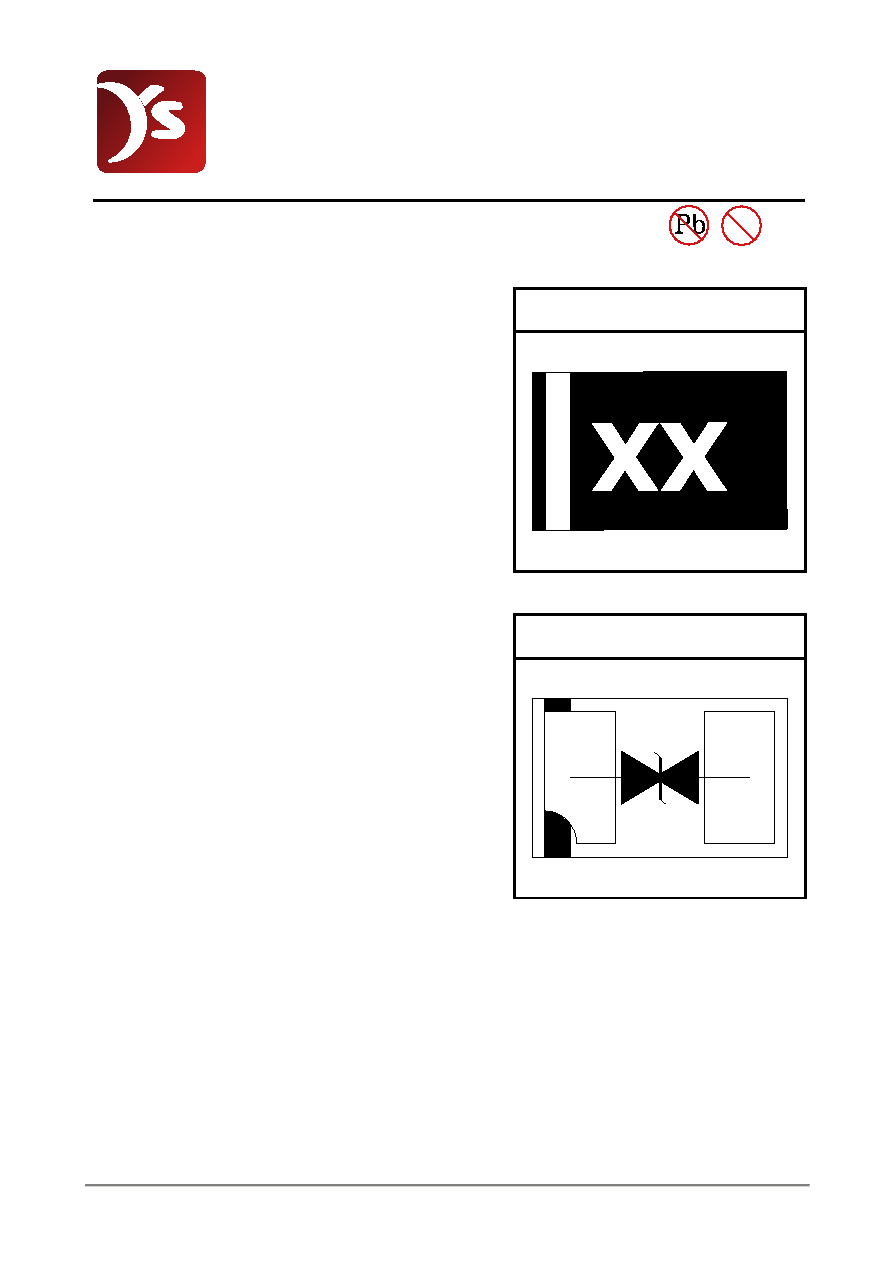

DFN1006DN

PIN CONFIGURATION

BIDIRECTIONAL TVS DIODE
