NJG1555KB2
- 9 -

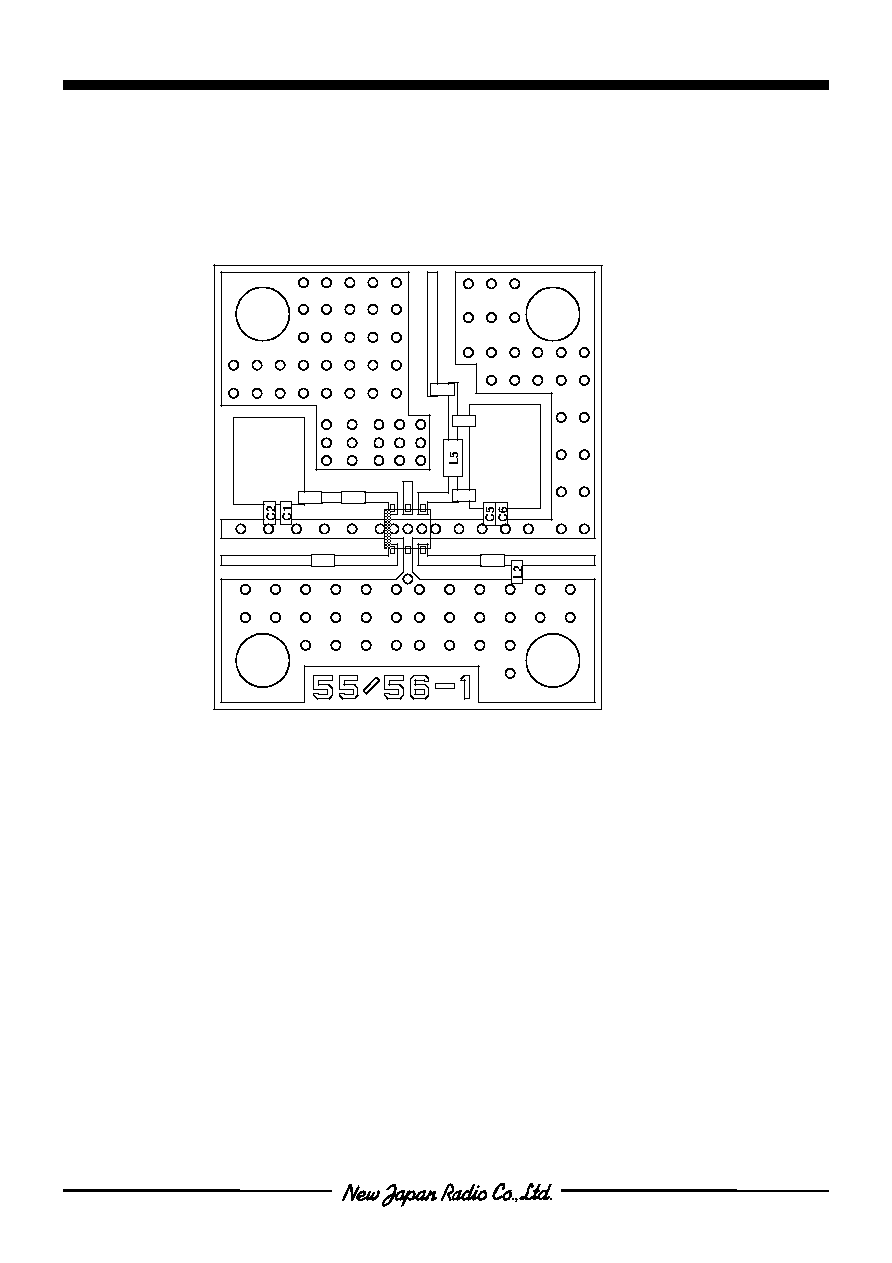

nRECOMMENDED PCB DESIGN
PRECAUTIONS
[1] Please locate L4 and R1 close to VLO terminal (6).
[2] Please locate C1 and C2 close to L4.
[3] Please locate C5 and C6 close to C3.
PCB (FR-4):
t=0.2mm
STRIP LINE WIDTH
=0.4mm (Z0=50
Ω)
PCB SIZE
=16.7x19.1mm
LOCAL IN
RF IN
IF OUT
VLO
VMIX
L1
L3
L4
L6
C3
C4
(Top View)
R1
